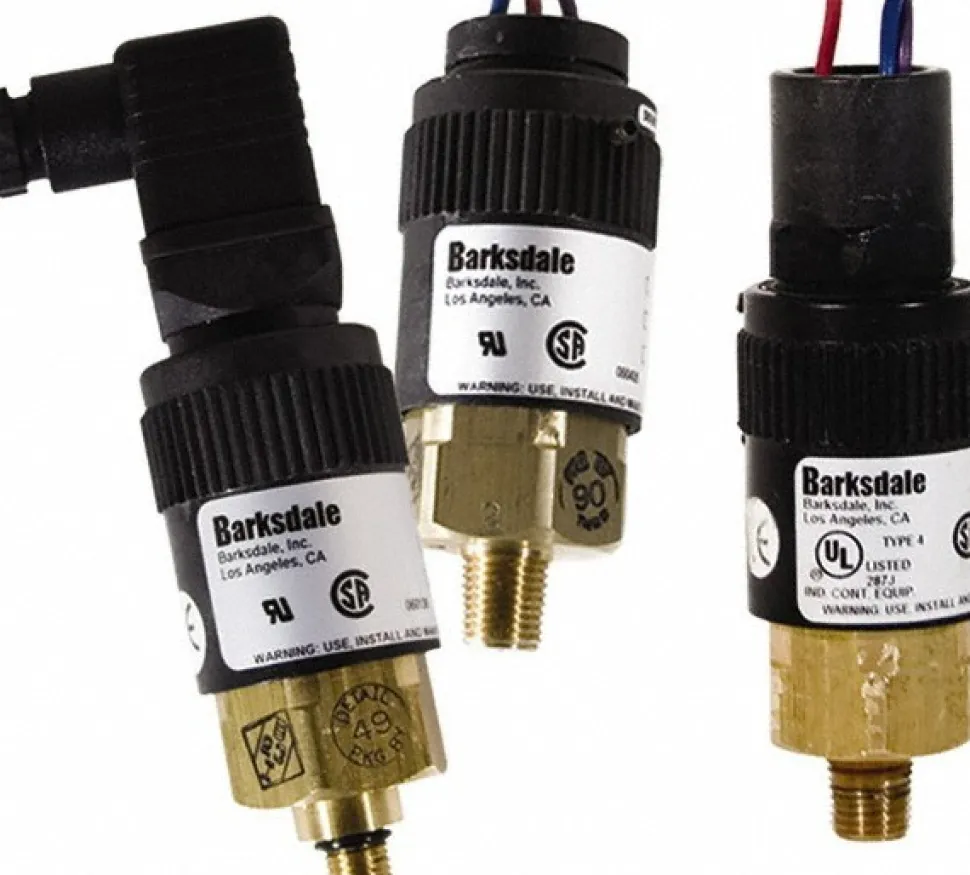

Compact Pressure Switch: 25 psi to 125 psi, 1/4″ NPT Male Thread
132,89 $
Specifications
| Switch Type: Compact Pressure | Wetted Material: Brass |
| Maximum Pressure Setting: 1000 psi | Voltage: 125 – 250 V ac |
| Electrical Connection: DIN 43650 | Repeatability: 2% |
| Amperage Rating: 5A at 30Vdc; 5A at 125/250Vac | Thread Type: NPT Male |
| Housing Material: Plastic | Contact Form: SPDT |
| Gender: Male | Switch Starting Position: Off (Normally Open); On (Normally Closed) |
| Setpoint Adjustability: Yes | Minimum Adjustable Pressure: 25.00 psi |
| Maximum Adjustable Pressure: 125.00 psi | Minimum Adjustable Pressure On Fall: 22.50 psi |
| Maximum Adjustable Pressure On Fall: 112.00 psi | Minimum Adjustable Pressure On Rise: 25.00 psi |
| Maximum Adjustable Pressure On Rise: 125.00 psi | Minimum Temperature (Deg F – 3 Decimals): -20.000 |
| Minimum Temperature (C – 2 Decimals): -29.00 | Maximum Temperature (C): 74.00 |
| Maximum Temperature (F) ( – 0 Decimals): 165.000 | Minimum Deadband: 1.0 psi |
| Maximum Deadband: 15.00 | Thread Size: 1/4 |
| Standards: CSA #LR22355; UL Recognized Component (UR) | Additional Information: BUNA-N O-Ring; Brass |
| UNSPSC Code: 39121500 | Country of Origin: UNITED STATES |
| Switch Type: Compact Pressure | |
| Wetted Material: Brass | |
| Maximum Pressure Setting: 1000 psi | |
| Voltage: 125 – 250 V ac | |
| Electrical Connection: DIN 43650 | |
| Repeatability: 2% | |
| Amperage Rating: 5A at 30Vdc; 5A at 125/250Vac | |
| Thread Type: NPT Male | |
| Housing Material: Plastic | |
| Contact Form: SPDT | |
| Gender: Male | |
| Switch Starting Position: Off (Normally Open); On (Normally Closed) | |
| Setpoint Adjustability: Yes | |
| Minimum Adjustable Pressure: 25.00 psi | |
| Maximum Adjustable Pressure: 125.00 psi | |
| Minimum Adjustable Pressure On Fall: 22.50 psi | |
| Maximum Adjustable Pressure On Fall: 112.00 psi | |
| Minimum Adjustable Pressure On Rise: 25.00 psi | |
| Maximum Adjustable Pressure On Rise: 125.00 psi | |
| Minimum Temperature (Deg F – 3 Decimals): -20.000 | |
| Minimum Temperature (C – 2 Decimals): -29.00 | |
| Maximum Temperature (C): 74.00 | |
| Maximum Temperature (F) ( – 0 Decimals): 165.000 | |
| Minimum Deadband: 1.0 psi | |
| Maximum Deadband: 15.00 | |
| Thread Size: 1/4 | |
| Standards: CSA #LR22355; UL Recognized Component (UR) | |
| Additional Information: BUNA-N O-Ring; Brass | |
| UNSPSC Code: 39121500 | |
| Country of Origin: UNITED STATES |
| MSC# | 31042120 |
| Mfr# | 96211-BB4-T2 |
