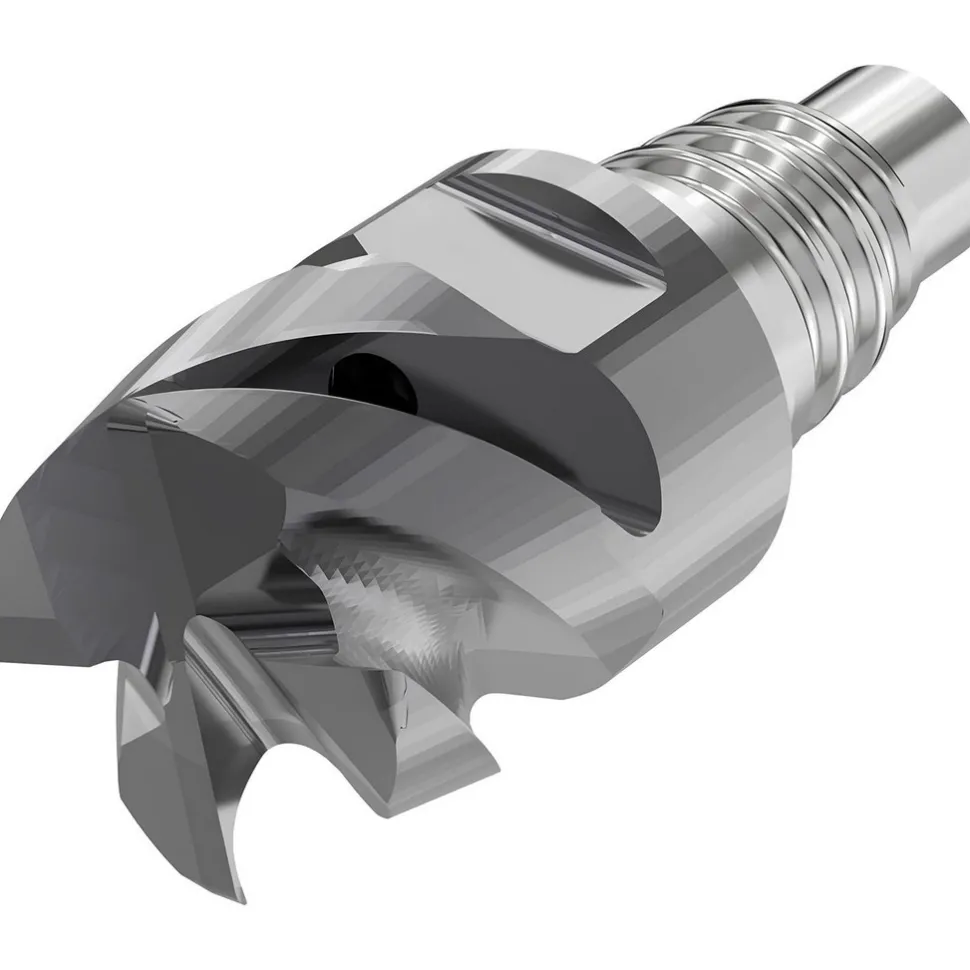

Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (Inch): 5/8
140,89 $
Specifications
| Mill Diameter (Inch): 5/8 | Number Of Flutes: 4 |
| Corner Radius (Inch): 1/32 | Coating/Finish: SIRON-A |
| End Mill Material: Solid Carbide | Corner Radius (Decimal Inch): 0.0310 |
| Mill Diameter (Decimal Inch): 0.6250 | Overall Length (Decimal Inch): 1.4016 |
| Connection Type: E16 | Flute Type: Helical |
| Centercutting: Yes | Minimum Helix Angle: 50 |
| Maximum Helix Angle: 50 | Series: XVE540 |
| Helix Angle: 50 | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Coolant Through: Yes |
| Variable Helix: No | Length Of Cut (Decimal Inch – 4 Decimals): 0.3937 |
| Variable Index: No | UNSPSC Code: 27112803 |
| Country of Origin: Germany | |
| Mill Diameter (Inch): 5/8 | |
| Number Of Flutes: 4 | |
| Corner Radius (Inch): 1/32 | |
| Coating/Finish: SIRON-A | |
| End Mill Material: Solid Carbide | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Mill Diameter (Decimal Inch): 0.6250 | |
| Overall Length (Decimal Inch): 1.4016 | |
| Connection Type: E16 | |
| Flute Type: Helical | |
| Centercutting: Yes | |
| Minimum Helix Angle: 50 | |
| Maximum Helix Angle: 50 | |
| Series: XVE540 | |
| Helix Angle: 50 | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Coolant Through: Yes | |
| Variable Helix: No | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3937 | |
| Variable Index: No | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Germany |
| MSC# | 90022674 |
| Mfr# | 10137995 |
