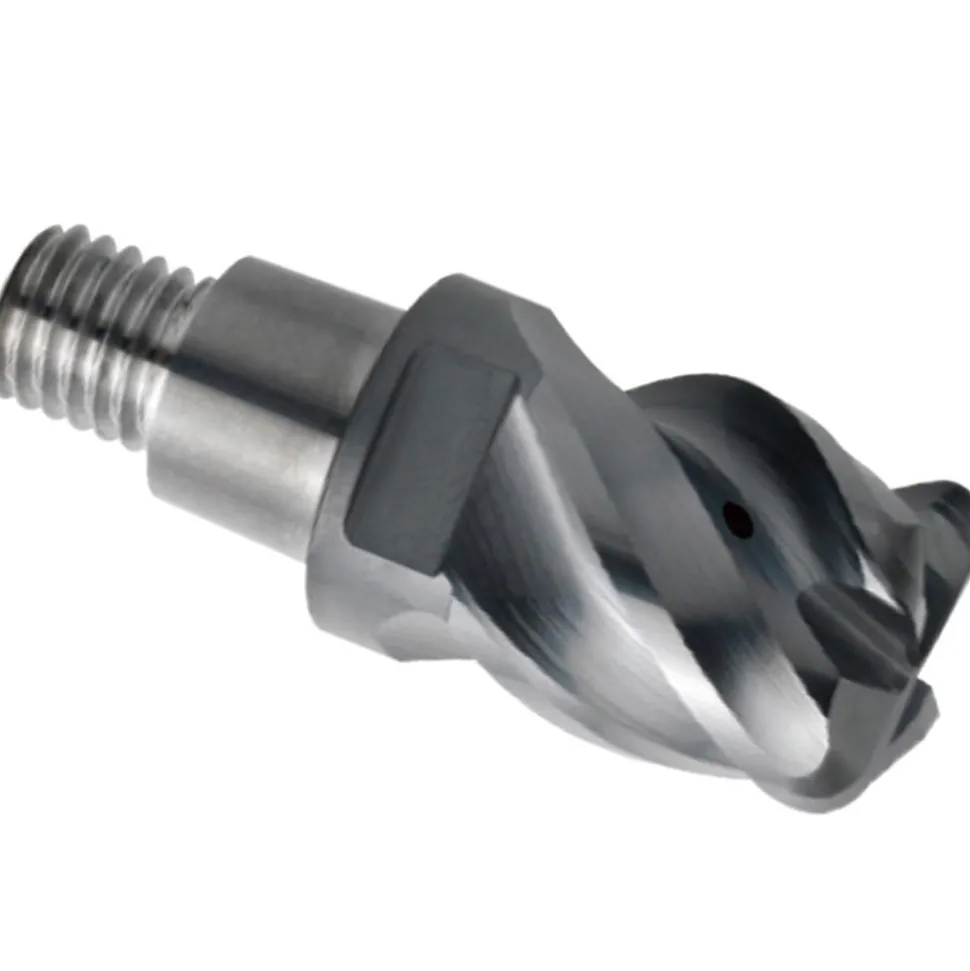

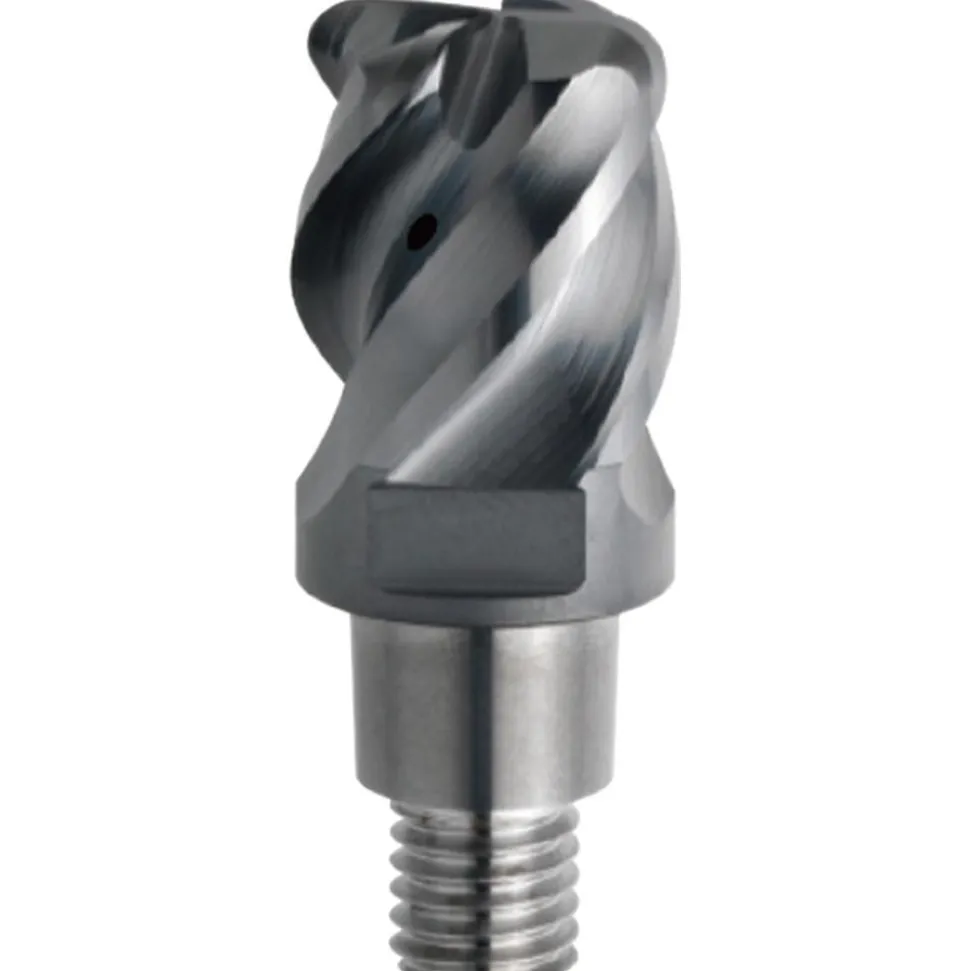

Corner Radius & Corner Chamfer End Mill Heads: Mill Diameter (mm): 9.53; Mill Diameter (Inch): 3/8
124,89 $
Specifications
| Mill Diameter (mm): 9.53 | Mill Diameter (Inch): 3/8 |
| Length of Cut (Inch): 3/8 | Length of Cut (mm): 9.53 |
| Number Of Flutes: 4 | Overall Length (mm): 29.11 |
| Corner Radius (mm): 0.76 | Coating/Finish: AlCrN |
| End Mill Material: Carbide | Corner Radius (Decimal Inch): 0.0300 |
| Mill Diameter (Decimal Inch): 0.3750 | Overall Length (Decimal Inch): 1.1460 |
| Connection Type: iMX10 | Flute Type: Helical |
| Centercutting: No | Minimum Helix Angle: 42 |
| Maximum Helix Angle: 45 | Material Grade: Solid Carbide |
| Helix Angle: Variable | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Coolant Through: Yes |
| Variable Helix: Yes | Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 |
| Variable Index: Yes | UNSPSC Code: 27112803 |
| Country of Origin: Japan | |
| Mill Diameter (mm): 9.53 | |
| Mill Diameter (Inch): 3/8 | |
| Length of Cut (Inch): 3/8 | |
| Length of Cut (mm): 9.53 | |
| Number Of Flutes: 4 | |
| Overall Length (mm): 29.11 | |
| Corner Radius (mm): 0.76 | |
| Coating/Finish: AlCrN | |
| End Mill Material: Carbide | |
| Corner Radius (Decimal Inch): 0.0300 | |
| Mill Diameter (Decimal Inch): 0.3750 | |
| Overall Length (Decimal Inch): 1.1460 | |
| Connection Type: iMX10 | |
| Flute Type: Helical | |
| Centercutting: No | |
| Minimum Helix Angle: 42 | |
| Maximum Helix Angle: 45 | |
| Material Grade: Solid Carbide | |
| Helix Angle: Variable | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Coolant Through: Yes | |
| Variable Helix: Yes | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 | |
| Variable Index: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Japan |
| MSC# | 01415827 |
| Mfr# | 682822 |
