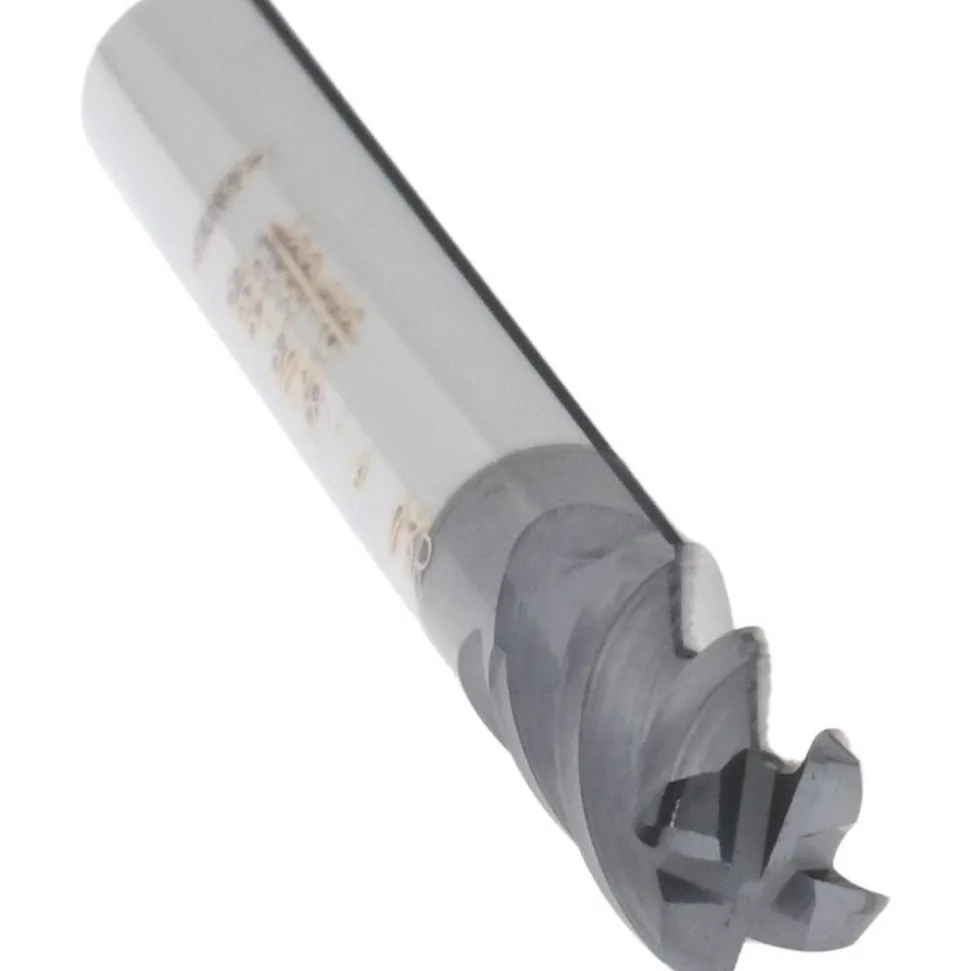

Corner Radius End Mill: 1/4″ Dia, 3/8″ LOC, 0.0300″ Corner Radius, 4 Flute, Solid Carbide
21,89 $
Specifications
| Mill Diameter (Inch): 1/4 | Mill Diameter (Decimal Inch): 0.2500 |
| Number Of Flutes: 4 | Length of Cut (Inch): 3/8 |
| Single Or Double End: Single | End Mill Material: Solid Carbide |
| Chipbreaker: No | Coating/Finish: AlTiN |
| Overall Length (Inch): 2 | Centercutting: Yes |
| Flute Direction: Right Hand | Corner Radius (Decimal Inch): 0.0300 |
| Variable Index: No | Helix Angle: 40.00 |
| Cutting Direction: Right Hand | Coolant Through: No |
| Overall Length (Decimal Inch): 2.0000 | End Type: Corner Radius |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 | Length Type: Stub |
| Flute Type: Spiral | Extended Reach: No |
| Shank Diameter (Inch): 1/4 | Corner Radius Tolerance: ±0.00150 in |
| Mill Diameter Tolerance: +0.000000/-0.002500 in | Shank Diameter Tolerance: -0.0001/-0.0004 in |
| UNSPSC Code: 27112803 | Material Grade: Micrograin |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Inch): 1/4 | |
| Mill Diameter (Decimal Inch): 0.2500 | |
| Number Of Flutes: 4 | |
| Length of Cut (Inch): 3/8 | |
| Single Or Double End: Single | |
| End Mill Material: Solid Carbide | |
| Chipbreaker: No | |
| Coating/Finish: AlTiN | |
| Overall Length (Inch): 2 | |
| Centercutting: Yes | |
| Flute Direction: Right Hand | |
| Corner Radius (Decimal Inch): 0.0300 | |
| Variable Index: No | |
| Helix Angle: 40.00 | |
| Cutting Direction: Right Hand | |
| Coolant Through: No | |
| Overall Length (Decimal Inch): 2.0000 | |
| End Type: Corner Radius | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 | |
| Length Type: Stub | |
| Flute Type: Spiral | |
| Extended Reach: No | |
| Shank Diameter (Inch): 1/4 | |
| Corner Radius Tolerance: ±0.00150 in | |
| Mill Diameter Tolerance: +0.000000/-0.002500 in | |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | |
| UNSPSC Code: 27112803 | |
| Material Grade: Micrograin | |
| Country of Origin: UNITED STATES |
| MSC# | 86818028 |
| Mfr# | 86818028 |
| Big Book# | 490 |
