Sale!

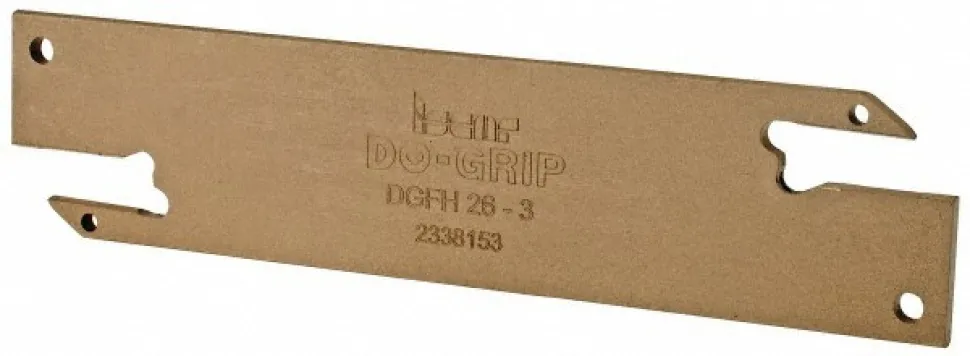

DGFH Double End Neutral Indexable Cutoff Blade
Original price was: 150,00 $.100,99 $Current price is: 100,99 $.

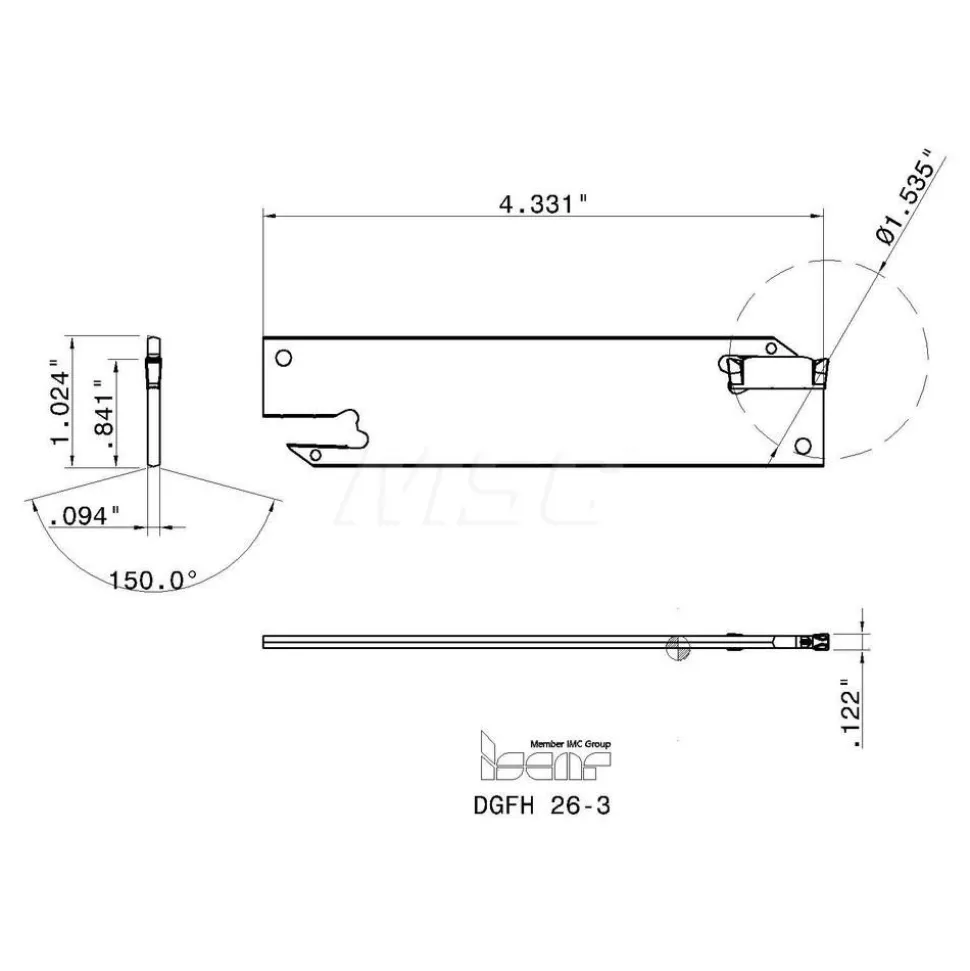

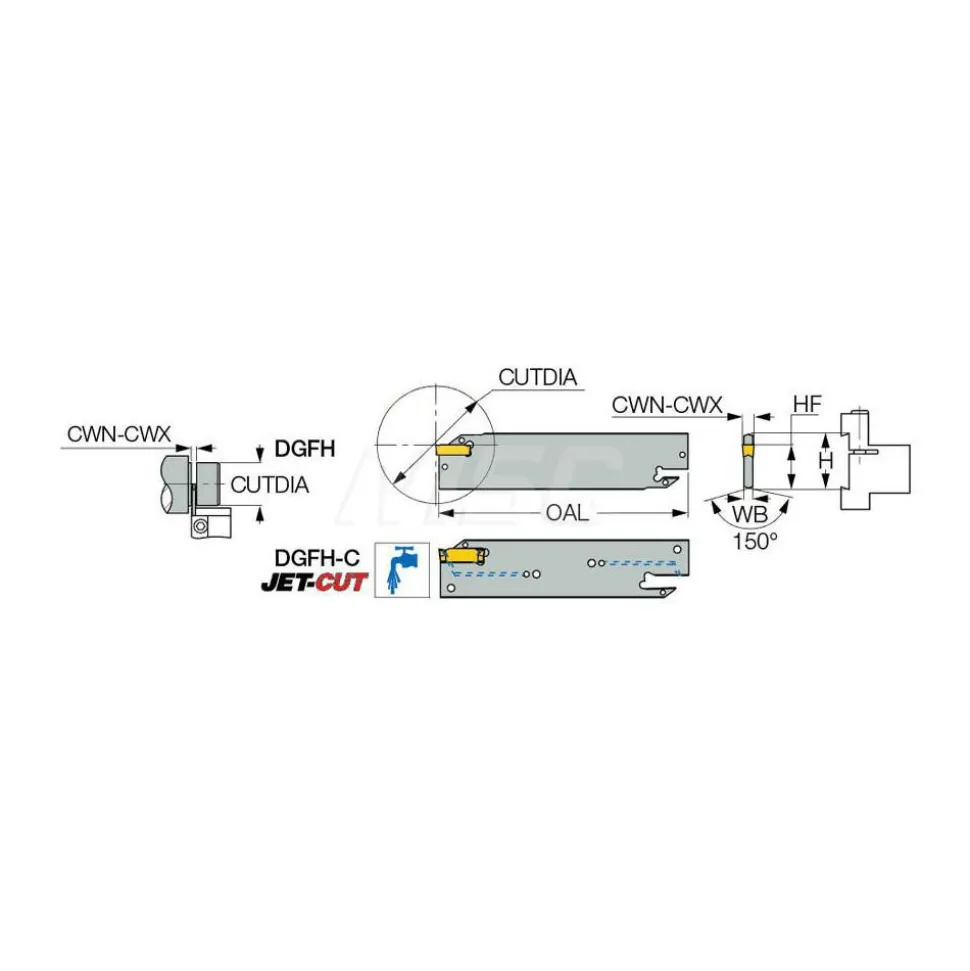

Specifications
| End Type: Double | Cutting Direction: Neutral |
| Blade Height (mm): 26.00 | Blade Height (Decimal Inch): 1.0236 |
| Blade Width (Decimal Inch): 0.0900 | Blade Width (mm): 2.40 |
| Blade Overall Length (Decimal Inch): 4.3307 | Blade Overall Length (mm): 110.00 |
| Blade Style: DGFH | Compatible Insert Style: DG. 1/DG. 3 |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 1.5400 |
| Series: Do-Grip; Heli-Grip | Insert Style: DG.1..; DG.3.. |
| Cutting Tool Application: Grooving; Turning; Parting | Standards: ISO 13399 |
| Cutting Height (mm): 21.40 | Cutting Height (Decimal Inch): 0.8425 |
| Minimum Insert Width (Decimal Inch): 0.1181 | Minimum Insert Width (mm): 3.00 |
| Maximum Insert Width (mm): 3.18 | Maximum Insert Width (Decimal Inch): 0.1252 |
| Manufacturers Catalog Number: DGFH 26-3 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Double | |
| Cutting Direction: Neutral | |
| Blade Height (mm): 26.00 | |
| Blade Height (Decimal Inch): 1.0236 | |
| Blade Width (Decimal Inch): 0.0900 | |
| Blade Width (mm): 2.40 | |
| Blade Overall Length (Decimal Inch): 4.3307 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: DGFH | |
| Compatible Insert Style: DG. 1/DG. 3 | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 1.5400 | |
| Series: Do-Grip; Heli-Grip | |
| Insert Style: DG.1..; DG.3.. | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 21.40 | |
| Cutting Height (Decimal Inch): 0.8425 | |
| Minimum Insert Width (Decimal Inch): 0.1181 | |
| Minimum Insert Width (mm): 3.00 | |
| Maximum Insert Width (mm): 3.18 | |
| Maximum Insert Width (Decimal Inch): 0.1252 | |
| Manufacturers Catalog Number: DGFH 26-3 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 52699592 |
| Mfr# | 2301242 |
| Big Book# | 891 |
