Hole Diameter (Inch): 1-1/4	Free Length (Inch): 1-1/2
Duty Rating: Medium-Duty	Color: Blue
Maximum Operating Deflection (Percent): 37.50	Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel	Rod Diameter (Inch): 5/8
Travel To Solid Load (Decimal Inch): 0.6000	Maximum Deflection Load (Lb.): 532.00
Maximum Deflection (Decimal Inch): 0.5600	Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905	Country of Origin: UNITED STATES
Hole Diameter (Inch): 1-1/4
Free Length (Inch): 1-1/2
Duty Rating: Medium-Duty
Color: Blue
Maximum Operating Deflection (Percent): 37.50
Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel
Rod Diameter (Inch): 5/8
Travel To Solid Load (Decimal Inch): 0.6000
Maximum Deflection Load (Lb.): 532.00
Maximum Deflection (Decimal Inch): 0.5600
Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905
Country of Origin: UNITED STATES

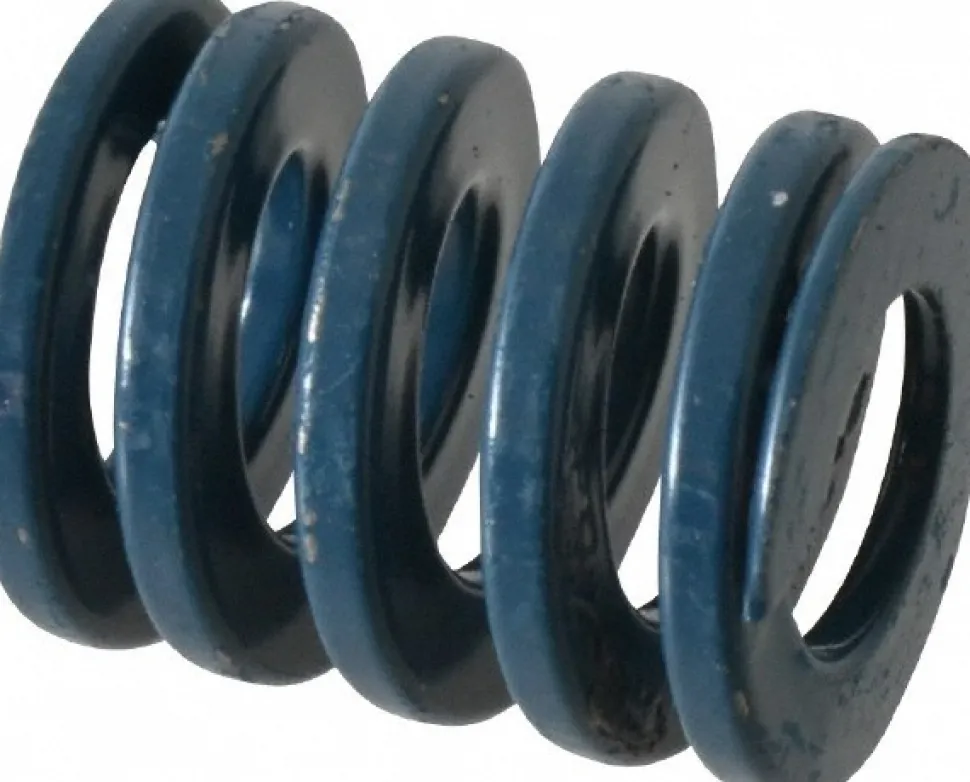

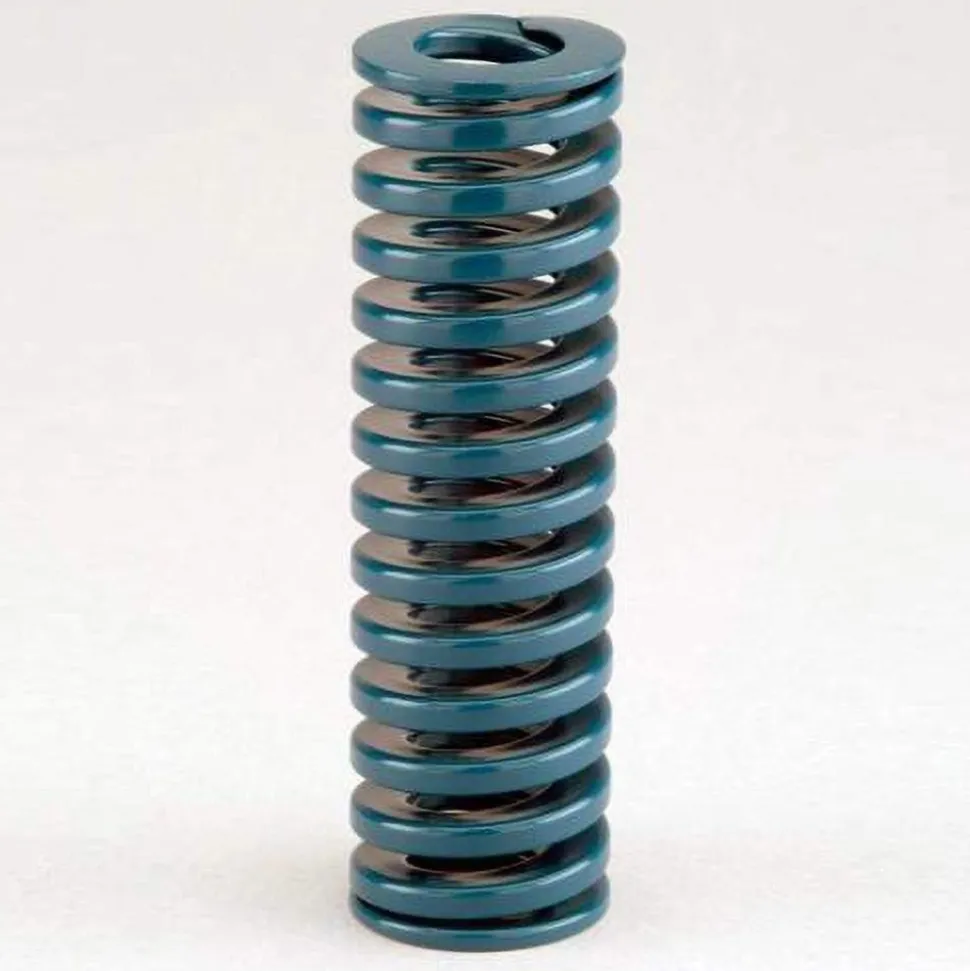

Die Spring: 1-1/4″ Hole Dia, 5/8″ Rod Dia, 1-1/2″ Free Length, Blue

Specifications
