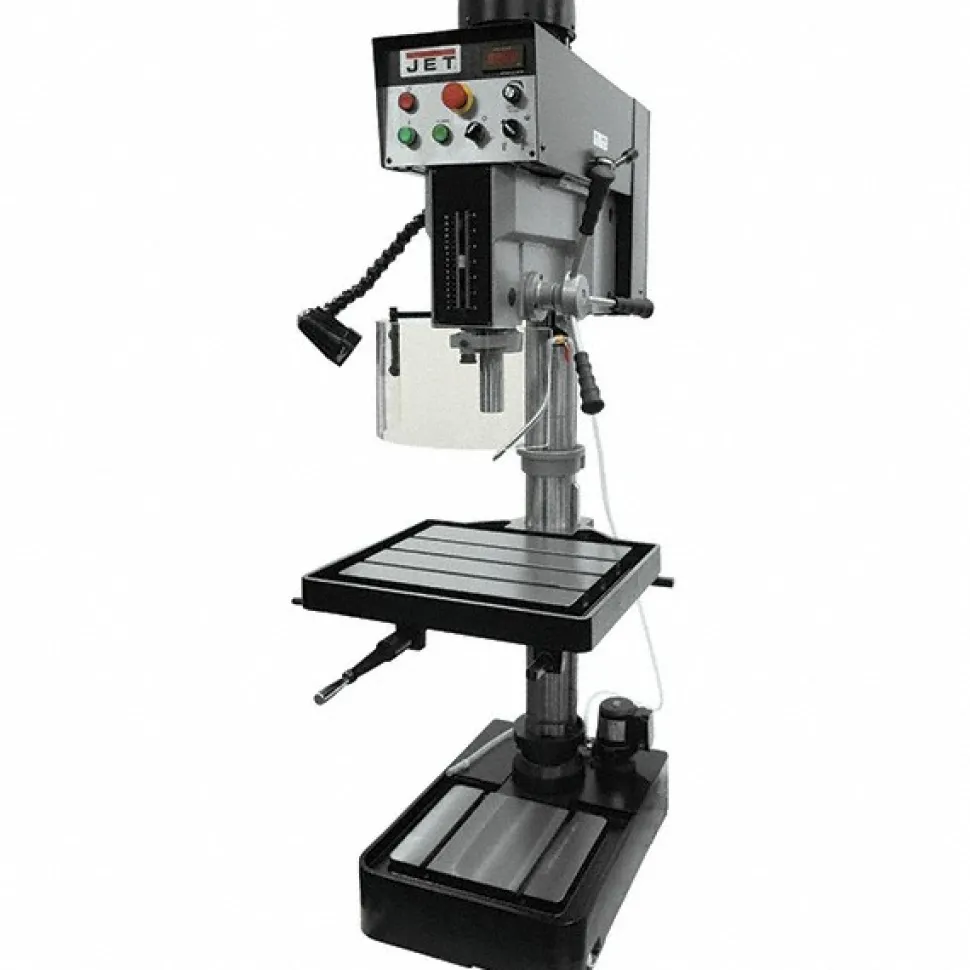

Floor Drill Press: 10.4370″ Swing, 2 hp, 230 V, 3 Phase

122,89 $

SKU: SKUqxYZ9k07vO Categories: Drill Presses & Tapping Machines, Machinery, Shop All Products Tag: Jet Brand: Jet

Description
Reviews (0)

Specifications

Stand Type: Floor	Swing Distance (Decimal Inch): 10.4370
Spindle Speed Control: Variable Speed Pulley	Phase: Three
Spindle Taper Size: 3MT	Spindle To Column Distance: 10.4375 in
Spindle to Column Distance (Inch): 10-7/16	Spindle to Table Distance (Inch): 30-1/4
Overall Height (Inch – 2 Decimals): 79.52	Spindle Travel Length: 6 in
Spindle Travel Length (Decimal Inch): 6.0000	Spindle Travel Length (Inch): 6
Column Diameter (Inch): 4-1/2	Drilling Capacity in Steel (Inch): 1-3/8
Drilling Capacity in Cast Iron (Inch): 7/8	UNSPSC Code: 23241801
Table Slot Size: 7.4375 in	Table Length (Decimal Inch): 22.0000
Table Load Capacity: 154	Table Length: 22 in
Table Width: 18.75 in	Base Length: 27.0000
Base Width: 19 in	Overall Height: 79.52 in
Overall Length: 38.18 in	Overall Depth: 27.16 in
Country of Origin: Taiwan
Stand Type: Floor
Swing Distance (Decimal Inch): 10.4370
Spindle Speed Control: Variable Speed Pulley
Phase: Three
Spindle Taper Size: 3MT
Spindle To Column Distance: 10.4375 in
Spindle to Column Distance (Inch): 10-7/16
Spindle to Table Distance (Inch): 30-1/4
Overall Height (Inch – 2 Decimals): 79.52
Spindle Travel Length: 6 in
Spindle Travel Length (Decimal Inch): 6.0000
Spindle Travel Length (Inch): 6
Column Diameter (Inch): 4-1/2
Drilling Capacity in Steel (Inch): 1-3/8
Drilling Capacity in Cast Iron (Inch): 7/8
UNSPSC Code: 23241801
Table Slot Size: 7.4375 in
Table Length (Decimal Inch): 22.0000
Table Load Capacity: 154
Table Length: 22 in
Table Width: 18.75 in
Base Length: 27.0000
Base Width: 19 in
Overall Height: 79.52 in
Overall Length: 38.18 in
Overall Depth: 27.16 in
Country of Origin: Taiwan
