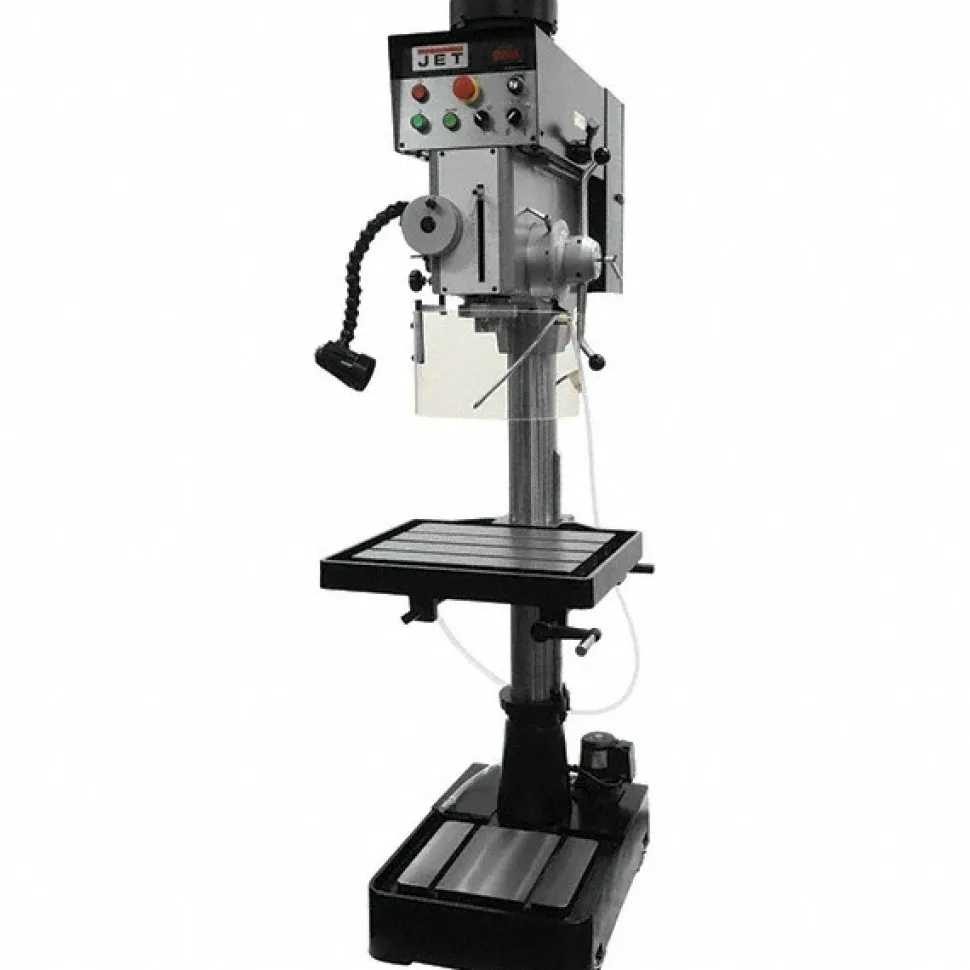

Floor Drill Press: 10.4370″ Swing, 2 hp, Geared Head Drive, 230 V, 3 Phase
134,99 $
Specifications
| Drive Type: Geared Head | Stand Type: Floor |
| Swing Distance (Decimal Inch): 10.4370 | Spindle Speed Control: Geared Head |
| Phase: Three | Spindle Taper Size: 4MT |
| Minimum Spindle Speed (RPM): 60 | Maximum Spindle Speed (RPM): 2000 |
| Spindle To Column Distance: 10.4375 in | Spindle to Column Distance (Inch): 10-7/16 |
| Spindle to Table Distance (Inch): 25-1/2 | Overall Height (Inch – 2 Decimals): 78.74 |
| Spindle Travel Length: 6 in | Spindle Travel Length (Decimal Inch): 6.0000 |
| Spindle Travel Length (Inch): 6 | Column Diameter (Inch): 4-1/2 |
| Drilling Capacity in Steel (Inch): 2 | Drilling Capacity in Cast Iron (Inch): 1 |
| Drilling Capacity In Steel: 2 in | Drilling Capacity In Cast Iron: 1 in |
| UNSPSC Code: 23241801 | Table Slot Size: 7.4375 in |
| Table Length (Decimal Inch): 22.0000 | Table Load Capacity: 154 |
| Table Length: 22 in | Table Width: 18.75 in |
| Base Length: 27.0000 | Base Width: 19 in |
| Overall Height: 78.74 in | Overall Length: 42.5 in |
| Overall Depth: 27.16 in | Country of Origin: Taiwan |
| Drive Type: Geared Head | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 10.4370 | |
| Spindle Speed Control: Geared Head | |
| Phase: Three | |
| Spindle Taper Size: 4MT | |
| Minimum Spindle Speed (RPM): 60 | |
| Maximum Spindle Speed (RPM): 2000 | |
| Spindle To Column Distance: 10.4375 in | |
| Spindle to Column Distance (Inch): 10-7/16 | |
| Spindle to Table Distance (Inch): 25-1/2 | |
| Overall Height (Inch – 2 Decimals): 78.74 | |
| Spindle Travel Length: 6 in | |
| Spindle Travel Length (Decimal Inch): 6.0000 | |
| Spindle Travel Length (Inch): 6 | |
| Column Diameter (Inch): 4-1/2 | |
| Drilling Capacity in Steel (Inch): 2 | |
| Drilling Capacity in Cast Iron (Inch): 1 | |
| Drilling Capacity In Steel: 2 in | |
| Drilling Capacity In Cast Iron: 1 in | |
| UNSPSC Code: 23241801 | |
| Table Slot Size: 7.4375 in | |
| Table Length (Decimal Inch): 22.0000 | |
| Table Load Capacity: 154 | |
| Table Length: 22 in | |
| Table Width: 18.75 in | |
| Base Length: 27.0000 | |
| Base Width: 19 in | |
| Overall Height: 78.74 in | |
| Overall Length: 42.5 in | |
| Overall Depth: 27.16 in | |
| Country of Origin: Taiwan |
| MSC# | 55757074 |
| Mfr# | 354245 |
| Big Book# | 1547 |
