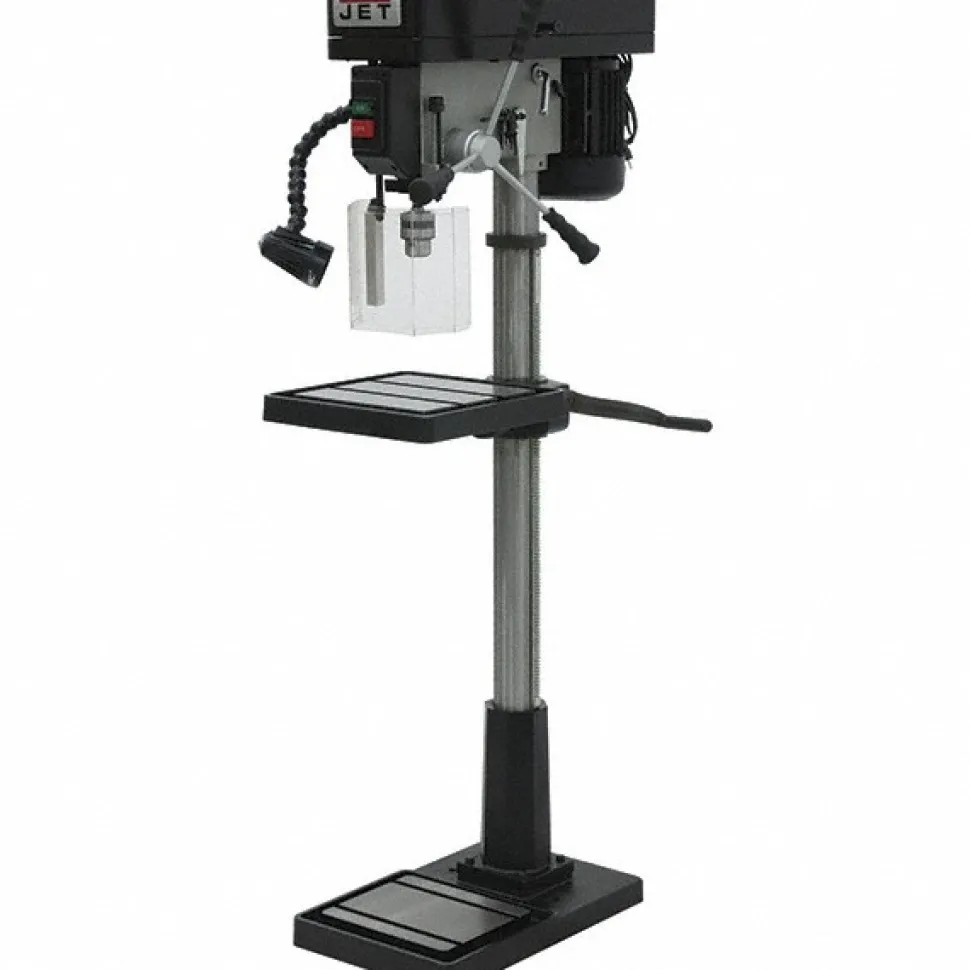

Floor Drill Press: 17″ Swing, 1 hp, Belt Drive, 115 & 230 V, 1 Phase
134,89 $
Specifications
| Drive Type: Belt | Stand Type: Floor |
| Swing Distance (Decimal Inch): 17.0000 | Swing Distance (Inch): 17 |
| Spindle Speed Control: Step Pulley | Phase: Single |
| Spindle Taper Size: 2MT | Minimum Spindle Speed: 350 |
| Maximum Spindle Speed (RPM): 2800 | Minimum Spindle Speed (RPM): 350 |
| Maximum Chuck Capacity: 0.63 in | Maximum Spindle Speed (RPM): 2800 |
| Number of Spindle Speeds: 12 | Spindle To Column Distance: 8.375 in |
| Spindle to Column Distance (Inch): 8-3/8 | Spindle to Table Distance (Inch): 30-1/2 |
| Overall Height (Inch – 2 Decimals): 63.00 | Spindle Travel Length: 3.3125 in |
| Spindle Travel Length (Decimal Inch): 3.3125 | Spindle Travel Length (Inch): 3-5/16 |
| Column Diameter (Inch): 3-1/8 | Drilling Capacity in Steel (Inch): 5/8 |
| Drilling Capacity in Cast Iron (Inch): 3/4 | UNSPSC Code: 23241801 |
| Table Slot Size: 0.5625 in | Table Length (Decimal Inch): 14.0000 |
| Table Length: 14 in | Table Width: 14 in |
| Base Length: 16.9375 | Overall Height: 63 in |
| Overall Depth (Inch): 15-3/4 | Overall Length: 27.5 in |
| Overall Depth: 15.75 in | Country of Origin: Taiwan |
| Drive Type: Belt | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 17.0000 | |
| Swing Distance (Inch): 17 | |
| Spindle Speed Control: Step Pulley | |
| Phase: Single | |
| Spindle Taper Size: 2MT | |
| Minimum Spindle Speed: 350 | |
| Maximum Spindle Speed (RPM): 2800 | |
| Minimum Spindle Speed (RPM): 350 | |
| Maximum Chuck Capacity: 0.63 in | |
| Maximum Spindle Speed (RPM): 2800 | |
| Number of Spindle Speeds: 12 | |
| Spindle To Column Distance: 8.375 in | |
| Spindle to Column Distance (Inch): 8-3/8 | |
| Spindle to Table Distance (Inch): 30-1/2 | |
| Overall Height (Inch – 2 Decimals): 63.00 | |
| Spindle Travel Length: 3.3125 in | |
| Spindle Travel Length (Decimal Inch): 3.3125 | |
| Spindle Travel Length (Inch): 3-5/16 | |
| Column Diameter (Inch): 3-1/8 | |
| Drilling Capacity in Steel (Inch): 5/8 | |
| Drilling Capacity in Cast Iron (Inch): 3/4 | |
| UNSPSC Code: 23241801 | |
| Table Slot Size: 0.5625 in | |
| Table Length (Decimal Inch): 14.0000 | |
| Table Length: 14 in | |
| Table Width: 14 in | |
| Base Length: 16.9375 | |
| Overall Height: 63 in | |
| Overall Depth (Inch): 15-3/4 | |
| Overall Length: 27.5 in | |
| Overall Depth: 15.75 in | |
| Country of Origin: Taiwan |
| MSC# | 30423735 |
| Mfr# | 354300 |
