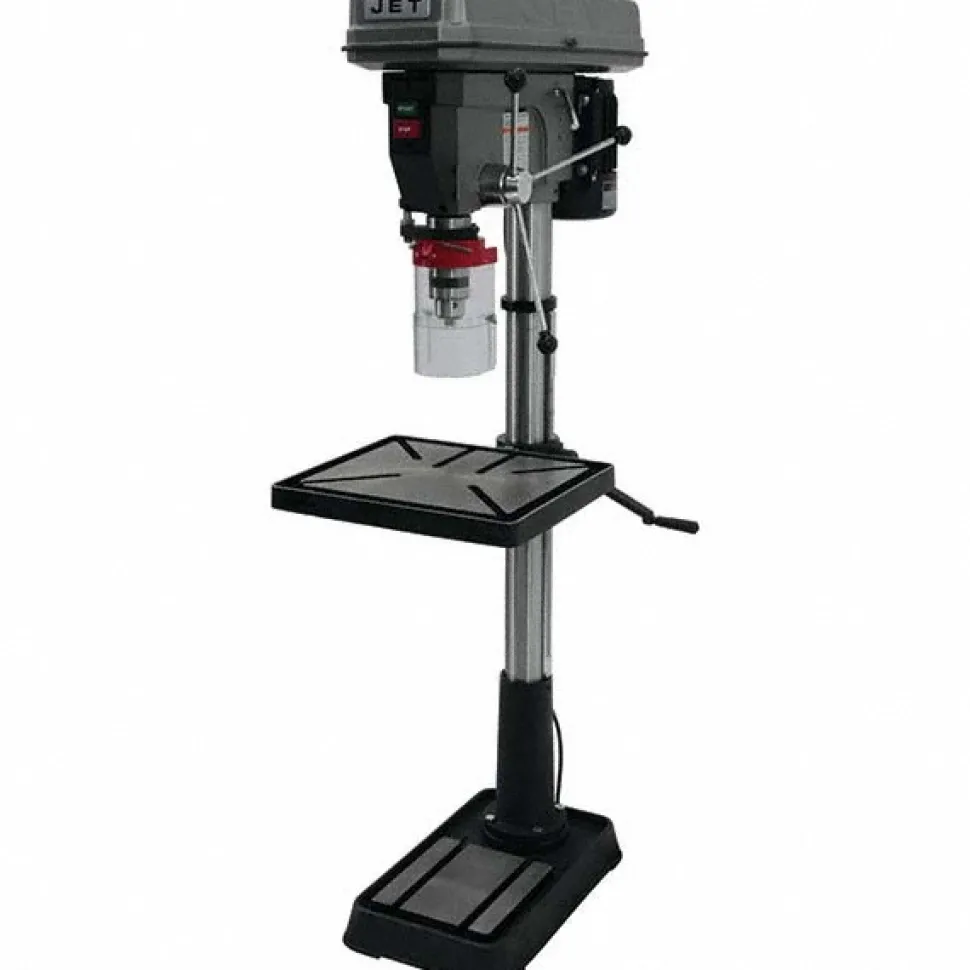

Floor Drill Press: 20″ Swing, 1.5 hp, Step Pulley Drive, 115 & 230 V, 1 Phase
120,99 $
Specifications
| Drive Type: Step Pulley | Stand Type: Floor |
| Swing Distance (Decimal Inch): 20.0000 | Swing Distance (Inch): 20 |
| Spindle Speed Control: Step Pulley | Phase: Single |
| Spindle Taper Size: 3MT | Minimum Spindle Speed (RPM): 150 |
| Maximum Spindle Speed (RPM): 4200 | Number of Spindle Speeds: 12 |
| Spindle to Column Distance (Inch): 10 | Spindle to Table Distance (Inch): 29-1/8 |
| Overall Height (Inch – 2 Decimals): 66.00 | Spindle Travel Length (Decimal Inch): 4.6250 |
| Spindle Travel Length (Inch): 4-5/8 | Column Diameter (Inch): 3-3/8 |
| Drilling Capacity in Steel (Inch): 3/4 | Drilling Capacity in Cast Iron (Inch): 1 |
| UNSPSC Code: 23241801 | Table Length (Decimal Inch): 18.5000 |
| Table Load Capacity: 80 | Base Length: 22.7500 |
| Drive Type: Step Pulley | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 20.0000 | |
| Swing Distance (Inch): 20 | |
| Spindle Speed Control: Step Pulley | |
| Phase: Single | |
| Spindle Taper Size: 3MT | |
| Minimum Spindle Speed (RPM): 150 | |
| Maximum Spindle Speed (RPM): 4200 | |
| Number of Spindle Speeds: 12 | |
| Spindle to Column Distance (Inch): 10 | |
| Spindle to Table Distance (Inch): 29-1/8 | |
| Overall Height (Inch – 2 Decimals): 66.00 | |
| Spindle Travel Length (Decimal Inch): 4.6250 | |
| Spindle Travel Length (Inch): 4-5/8 | |
| Column Diameter (Inch): 3-3/8 | |
| Drilling Capacity in Steel (Inch): 3/4 | |
| Drilling Capacity in Cast Iron (Inch): 1 | |
| UNSPSC Code: 23241801 | |
| Table Length (Decimal Inch): 18.5000 | |
| Table Load Capacity: 80 | |
| Base Length: 22.7500 |
| MSC# | 88429147 |
| Mfr# | 354170 |
