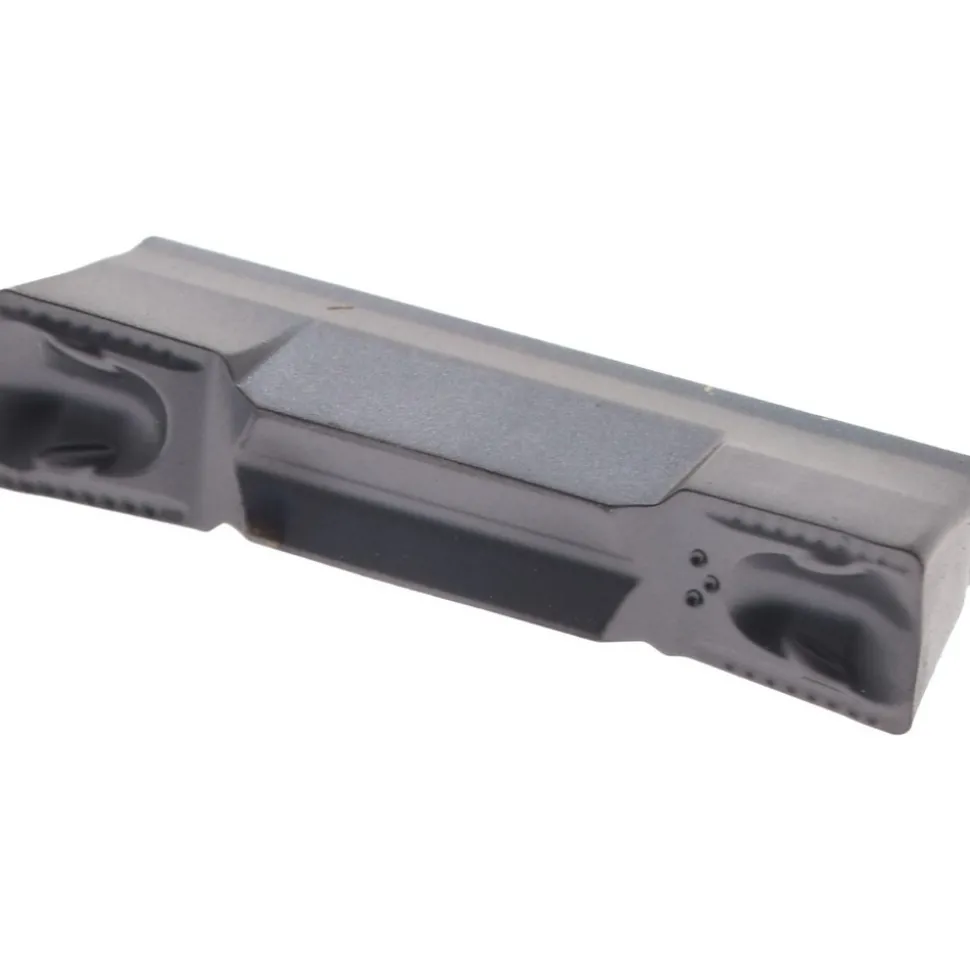

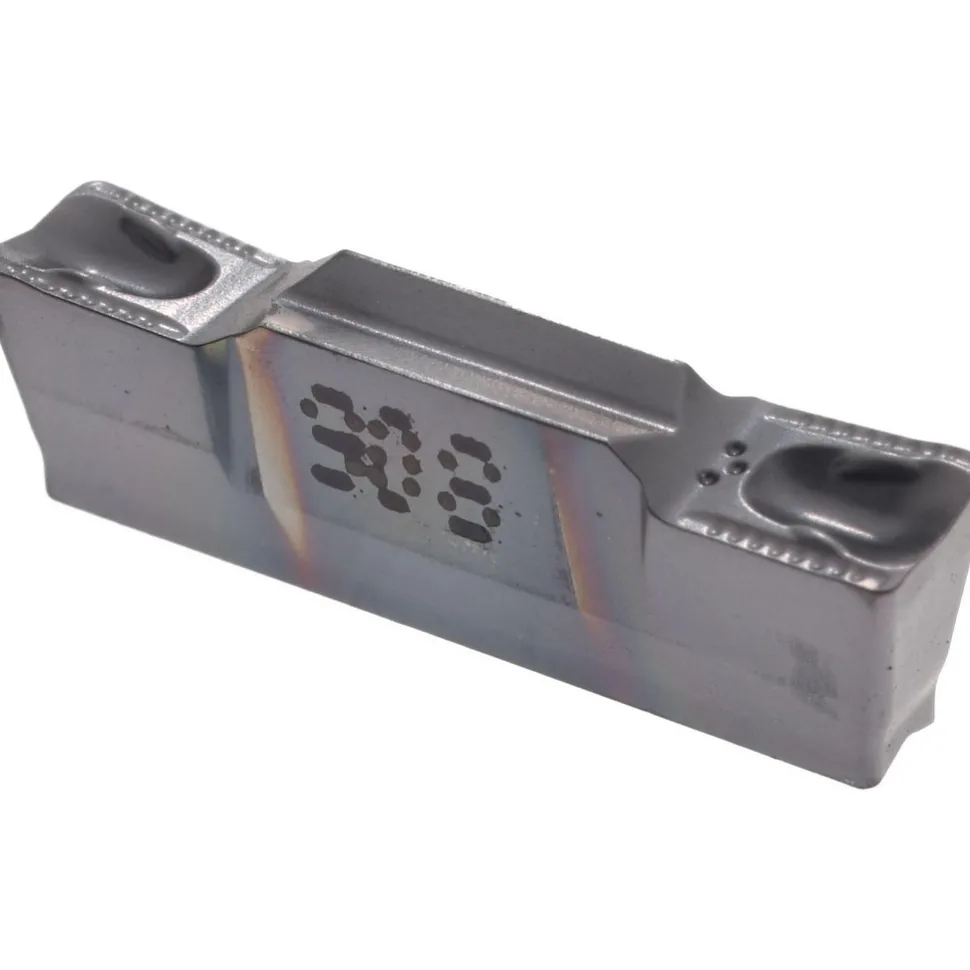

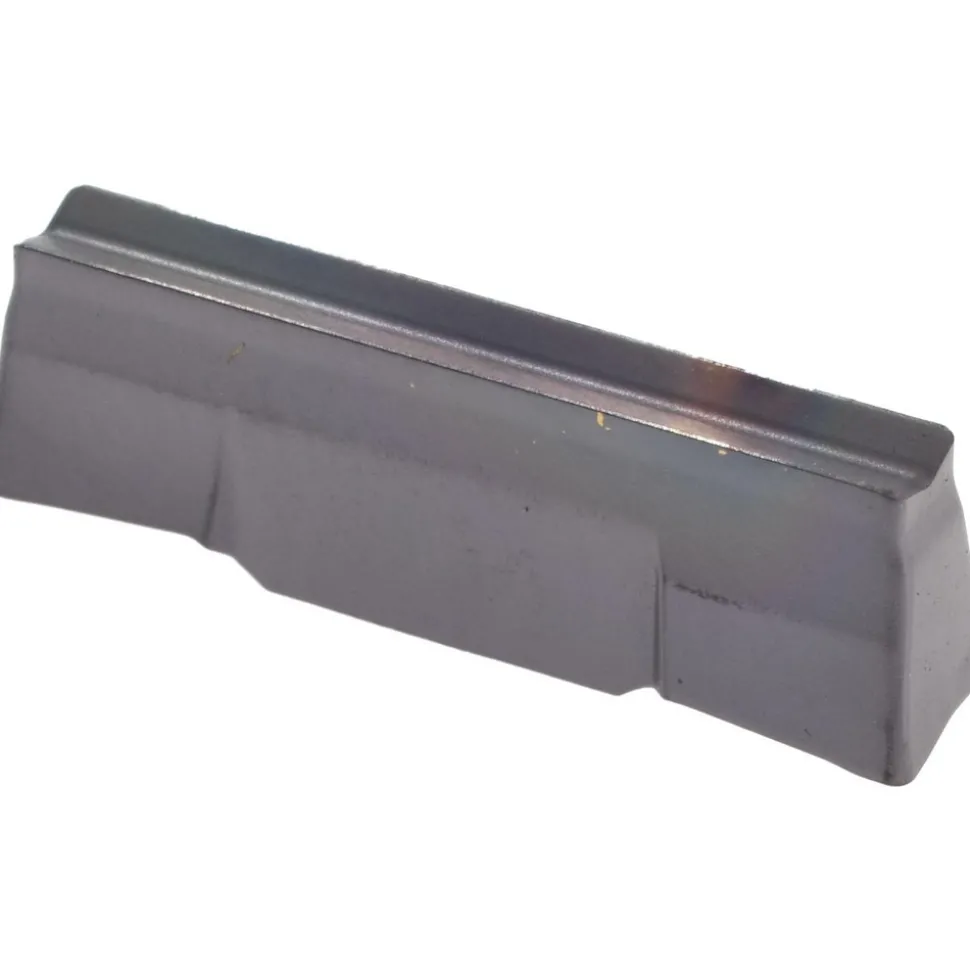

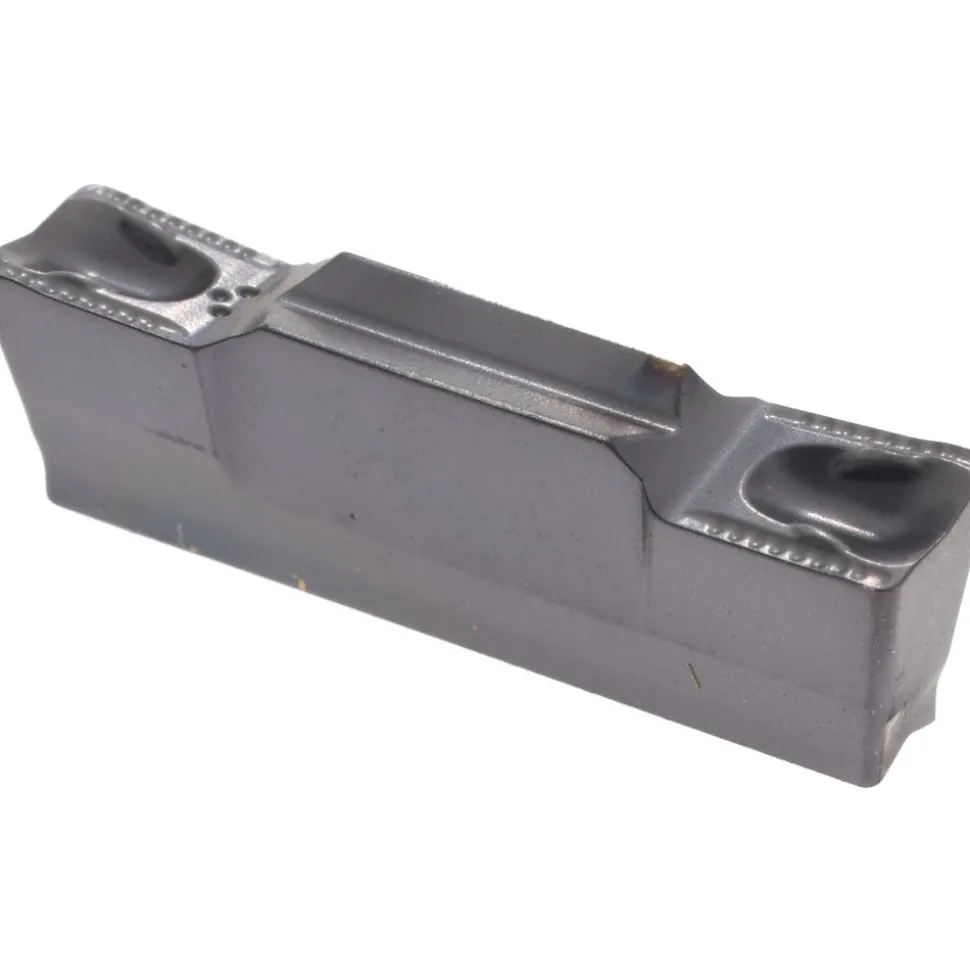

Grooving Insert: GRIP4004Y IC908, Carbide
31,99 $
Specifications
| Insert Style: GRIP | Insert Size Code: 4004Y |
| Cutting Width (Decimal Inch): 0.1575 | Cutting Width (mm): 4.00 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.0945 |
| Maximum Depth of Cut (mm): 2.40 | Insert Material: Carbide |
| Manufacturer Grade: IC908 | Full Radius: No |
| Corner Radius (Decimal Inch): 0.0157 | Corner Radius (mm): 0.40 |
| Rake: Positive | Measurement Type: Metric |
| Insert Size: 4004 | Material Grade: C6; C7; C1; C2 |
| Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000 | Maximum Depth Of Cut Range (mm): 2.00 to 3.00 |
| Lead Angle: 0.000 | Multi-use Tool: Yes |
| Series: Heli-Grip | Coating Process: PVD |
| Rake Angle: 7.000 | Overall Length (Decimal Inch): 0.7480 |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; S; H; K; M |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| UNSPSC Code: 23242105 | Chip Breaker: Y |
| Insert Height (Decimal Inch): 0.1970 | Coating/Finish: TiAlN |
| Country of Origin: Israel | |
| Insert Style: GRIP | |
| Insert Size Code: 4004Y | |
| Cutting Width (Decimal Inch): 0.1575 | |
| Cutting Width (mm): 4.00 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.0945 | |
| Maximum Depth of Cut (mm): 2.40 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Full Radius: No | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Corner Radius (mm): 0.40 | |
| Rake: Positive | |
| Measurement Type: Metric | |
| Insert Size: 4004 | |
| Material Grade: C6; C7; C1; C2 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000 | |
| Maximum Depth Of Cut Range (mm): 2.00 to 3.00 | |
| Lead Angle: 0.000 | |
| Multi-use Tool: Yes | |
| Series: Heli-Grip | |
| Coating Process: PVD | |
| Rake Angle: 7.000 | |
| Overall Length (Decimal Inch): 0.7480 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| UNSPSC Code: 23242105 | |
| Chip Breaker: Y | |
| Insert Height (Decimal Inch): 0.1970 | |
| Coating/Finish: TiAlN | |
| Country of Origin: Israel |
| MSC# | 67356022 |
| Mfr# | 6291277 |
| Big Book# | 891 |
