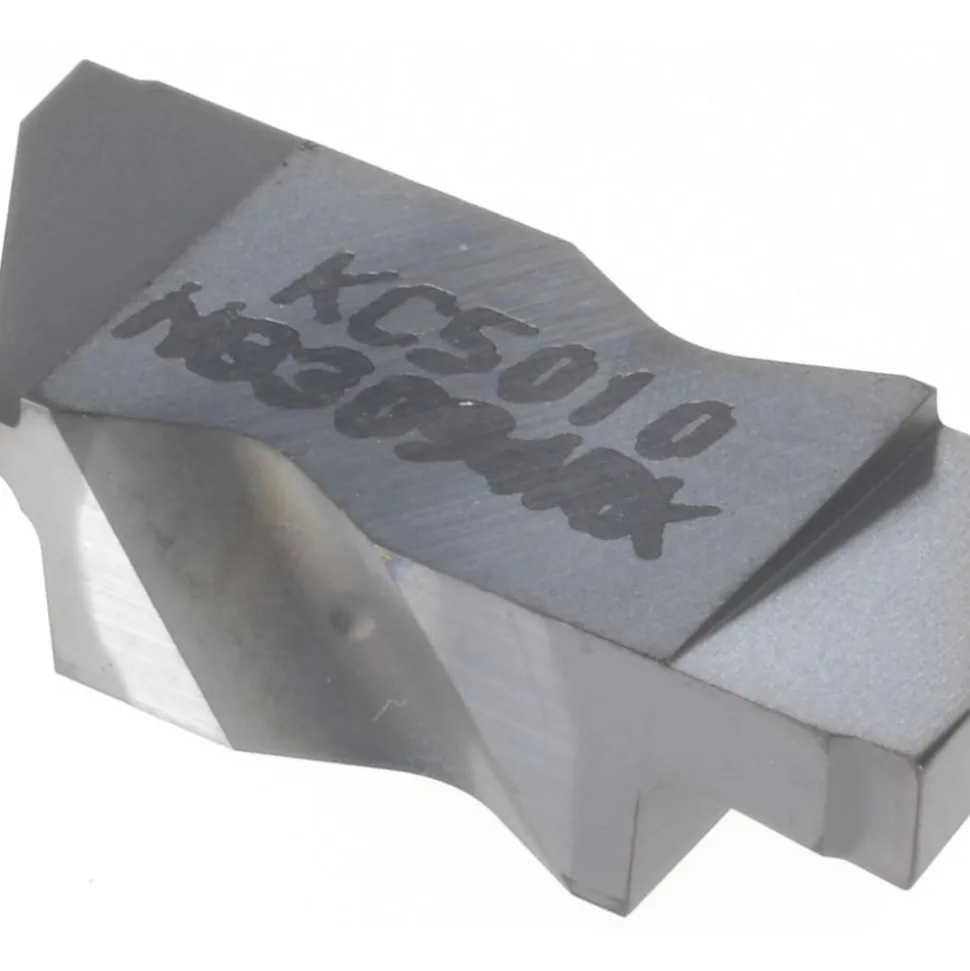

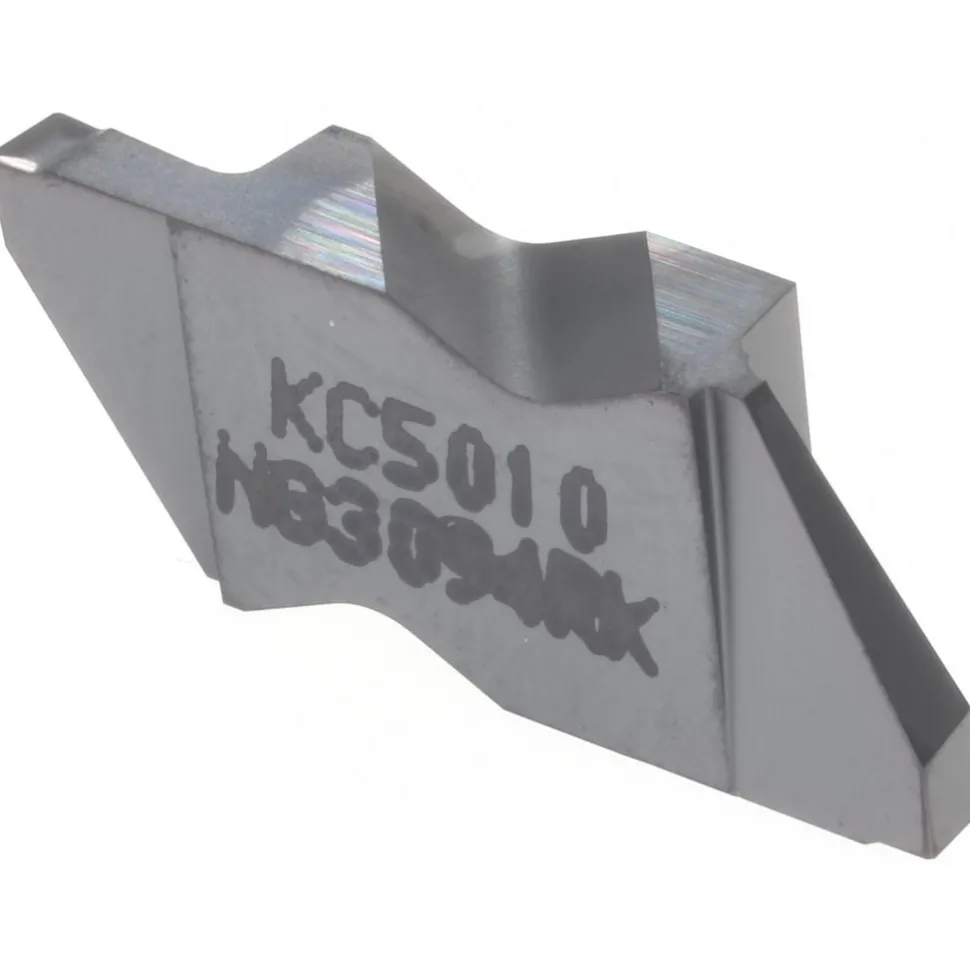

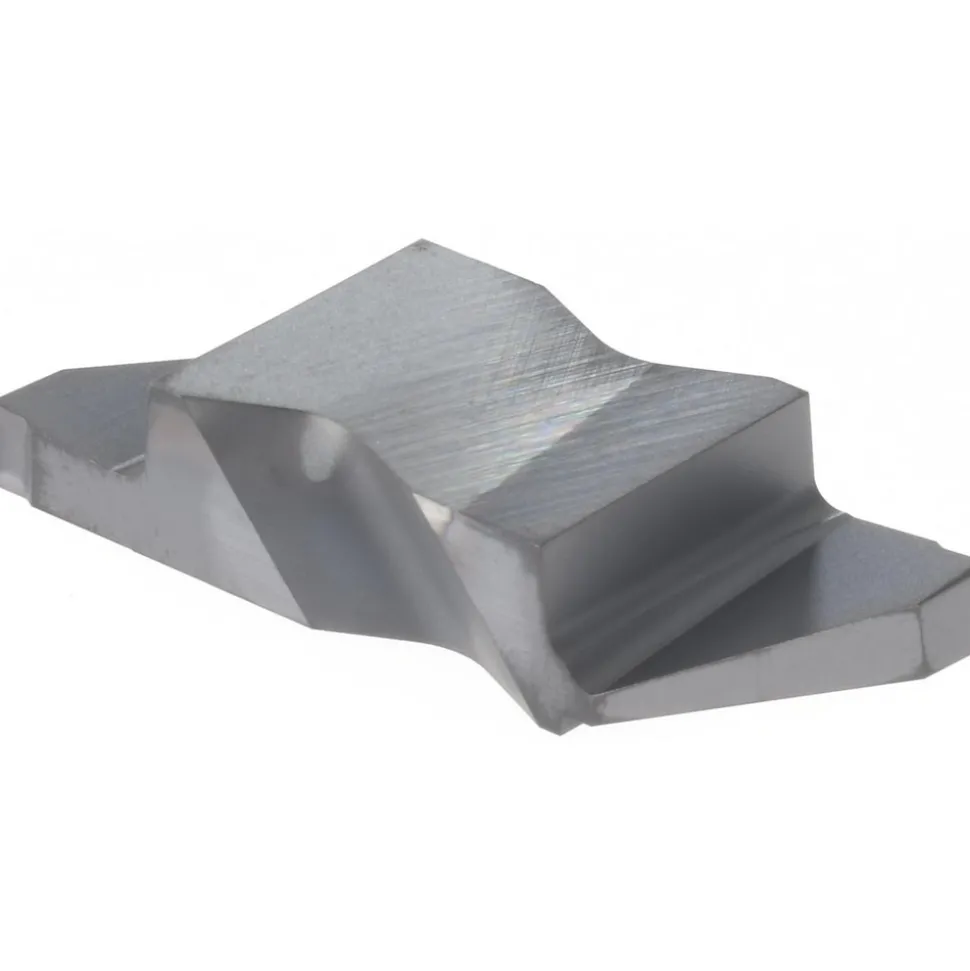

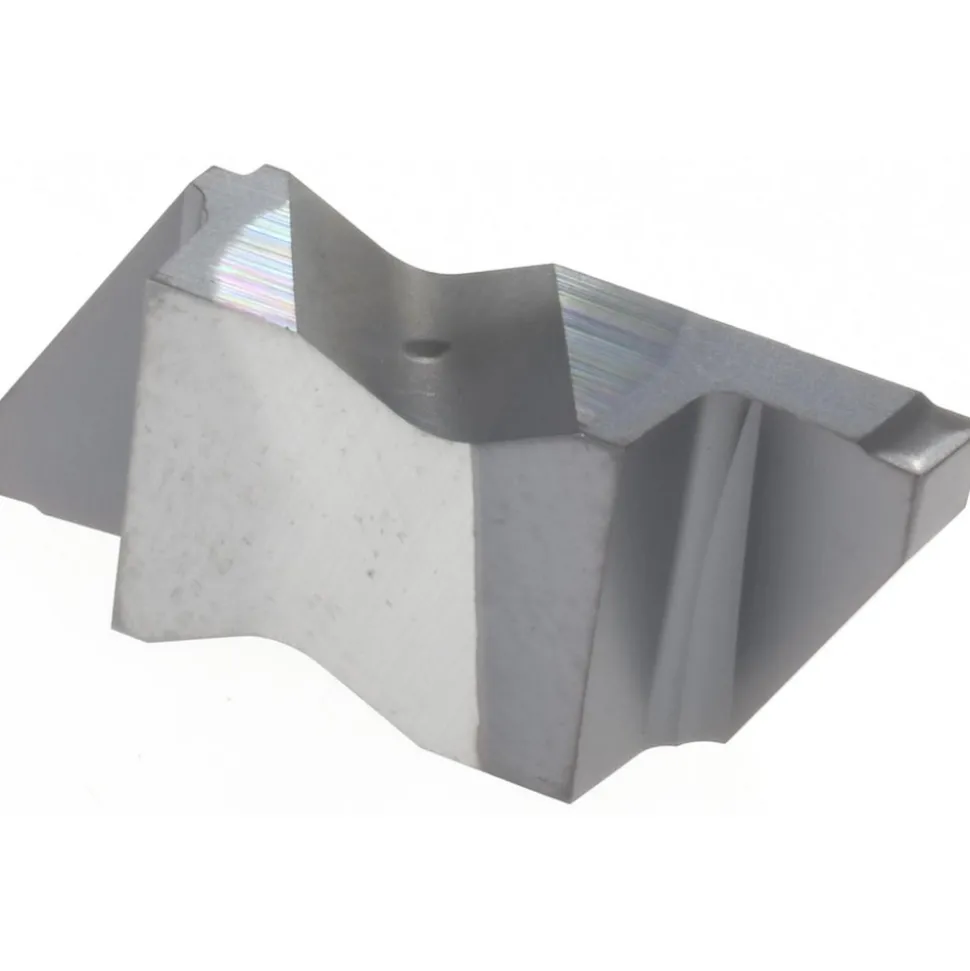

Grooving Insert: NG3094RK KC5010, Carbide
30,99 $
Specifications
| Insert Style: NG | Cutting Width (Decimal Inch): 0.0941 |
| Cutting Width (mm): 2.39 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.1500 | Maximum Depth of Cut (mm): 3.81 |
| Insert Material: Carbide | Manufacturer Grade: KC5010 |
| Full Radius: No | Corner Radius (Decimal Inch): 0.0075 |
| Corner Radius (mm): 0.19 | Rake: Positive |
| Measurement Type: Metric | Insert Size: 3094 |
| Material Grade: C3; C4 | Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm): 3.00 to 4.00 | Lead Angle: 3.000 |
| Multi-use Tool: No | Series: Top Notch |
| Coating Process: PVD | Rake Angle: 10.000 |
| UNSPSC Code: 23242105 | Chip Breaker: K |
| MSC/Manufacturer Number: NG3094R/LK | Insert Height (Decimal Inch): 0.3440 |
| Included Angle Degree: 55 | Coating/Finish: TiAlN |
| Country of Origin: UNITED STATES | |
| Insert Style: NG | |
| Cutting Width (Decimal Inch): 0.0941 | |
| Cutting Width (mm): 2.39 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.1500 | |
| Maximum Depth of Cut (mm): 3.81 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC5010 | |
| Full Radius: No | |
| Corner Radius (Decimal Inch): 0.0075 | |
| Corner Radius (mm): 0.19 | |
| Rake: Positive | |
| Measurement Type: Metric | |
| Insert Size: 3094 | |
| Material Grade: C3; C4 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000 | |
| Maximum Depth Of Cut Range (mm): 3.00 to 4.00 | |
| Lead Angle: 3.000 | |
| Multi-use Tool: No | |
| Series: Top Notch | |
| Coating Process: PVD | |
| Rake Angle: 10.000 | |
| UNSPSC Code: 23242105 | |
| Chip Breaker: K | |
| MSC/Manufacturer Number: NG3094R/LK | |
| Insert Height (Decimal Inch): 0.3440 | |
| Included Angle Degree: 55 | |
| Coating/Finish: TiAlN | |
| Country of Origin: UNITED STATES |
| MSC# | 02711125 |
| Mfr# | 1723607 |
| Big Book# | 906 |
