Sale!

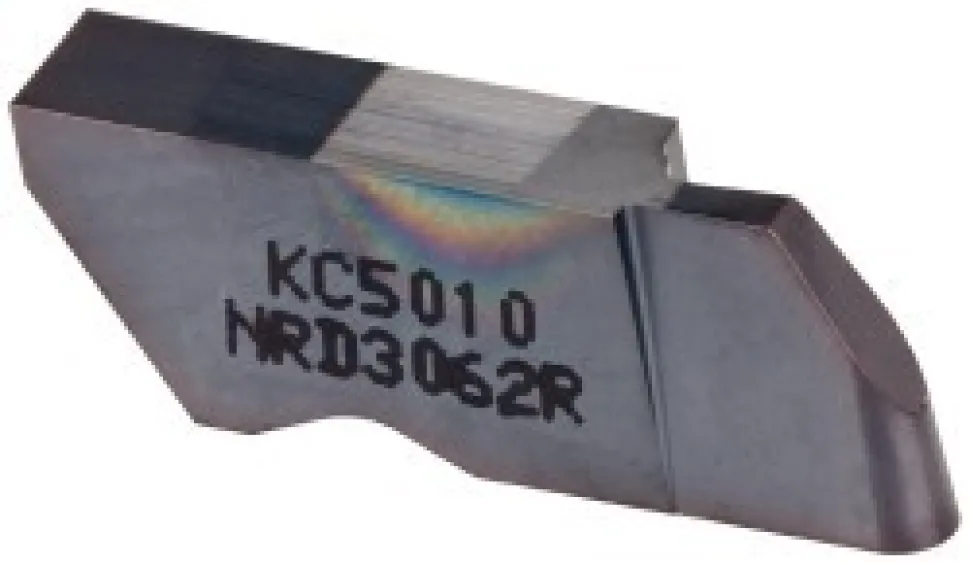

Grooving Insert: NRD3062R KC5010, Carbide

Original price was: 33,00 $.Current price is: 23,89 $.

Specifications

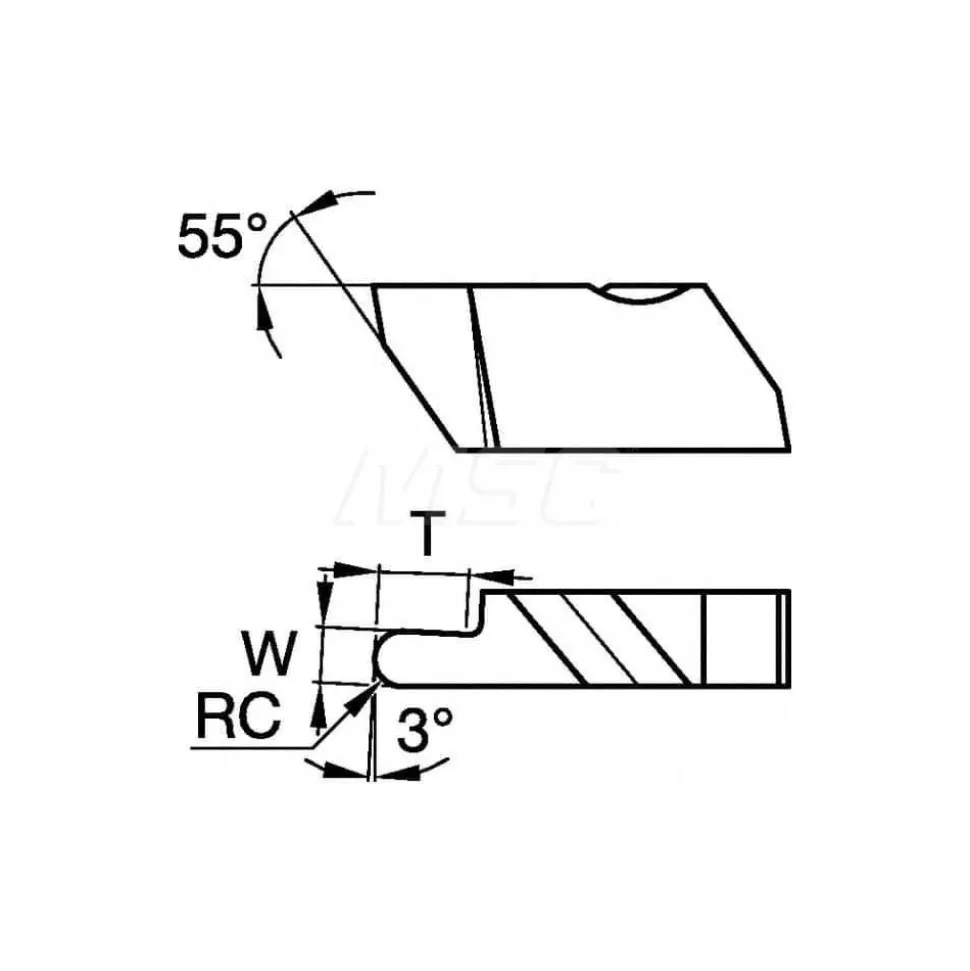

Insert Style: NRD	Cutting Width (Decimal Inch): 0.1252
Cutting Width (mm): 3.18	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.2500	Maximum Depth of Cut (mm): 6.35
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: Yes	Corner Radius (Decimal Inch): 0.0626
Corner Radius (mm): 1.59	Rake: Neutral
Measurement Type: Metric	Insert Size: 3062
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.2000 to 0.3000
Maximum Depth Of Cut Range (mm): 5.00 to 10.00	Multi-use Tool: No
Series: Top Notch	Coating Process: PVD
UNSPSC Code: 23242105	MSC/Manufacturer Number: NRD3062R
Insert Height (Decimal Inch): 0.3440	Included Angle Degree: 55
Coating/Finish: TiAlN	Country of Origin: UNITED STATES
Insert Style: NRD
Cutting Width (Decimal Inch): 0.1252
Cutting Width (mm): 3.18
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.2500
Maximum Depth of Cut (mm): 6.35
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: Yes
Corner Radius (Decimal Inch): 0.0626
Corner Radius (mm): 1.59
Rake: Neutral
Measurement Type: Metric
Insert Size: 3062
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.2000 to 0.3000
Maximum Depth Of Cut Range (mm): 5.00 to 10.00
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
UNSPSC Code: 23242105
MSC/Manufacturer Number: NRD3062R
Insert Height (Decimal Inch): 0.3440
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
