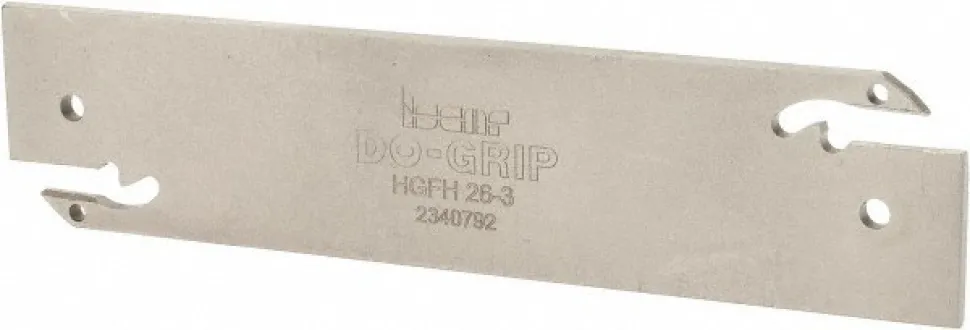

HGFH Double End Neutral Indexable Cutoff Blade

105,99 $

Specifications

End Type: Double	Cutting Direction: Neutral
Blade Height (mm): 26.00	Blade Height (Decimal Inch): 1.0236
Blade Width (Decimal Inch): 0.0900	Blade Width (mm): 2.40
Blade Overall Length (Decimal Inch): 4.3307	Blade Overall Length (mm): 110.00
Blade Style: HGFH	Insert Holding Method: Self Grip
Maximum Workpiece Diameter (mm): 75.00	Maximum Workpiece Diameter (Decimal Inch): 2.9500
Series: Do-Grip; Heli-Grip	Cutting Tool Application: Grooving; Turning; Parting
Insert Width (mm): 3.00	Standards: ISO 13399
Cutting Height (mm): 21.40	Cutting Height (Decimal Inch): 0.8425
Minimum Insert Width (Decimal Inch): 0.1181	Minimum Insert Width (mm): 3.00
Insert Width: 0.1181	UNSPSC Code: 23241600
Country of Origin: Israel
End Type: Double
Cutting Direction: Neutral
Blade Height (mm): 26.00
Blade Height (Decimal Inch): 1.0236
Blade Width (Decimal Inch): 0.0900
Blade Width (mm): 2.40
Blade Overall Length (Decimal Inch): 4.3307
Blade Overall Length (mm): 110.00
Blade Style: HGFH
Insert Holding Method: Self Grip
Maximum Workpiece Diameter (mm): 75.00
Maximum Workpiece Diameter (Decimal Inch): 2.9500
Series: Do-Grip; Heli-Grip
Cutting Tool Application: Grooving; Turning; Parting
Insert Width (mm): 3.00
Standards: ISO 13399
Cutting Height (mm): 21.40
Cutting Height (Decimal Inch): 0.8425
Minimum Insert Width (Decimal Inch): 0.1181
Minimum Insert Width (mm): 3.00
Insert Width: 0.1181
UNSPSC Code: 23241600
Country of Origin: Israel
