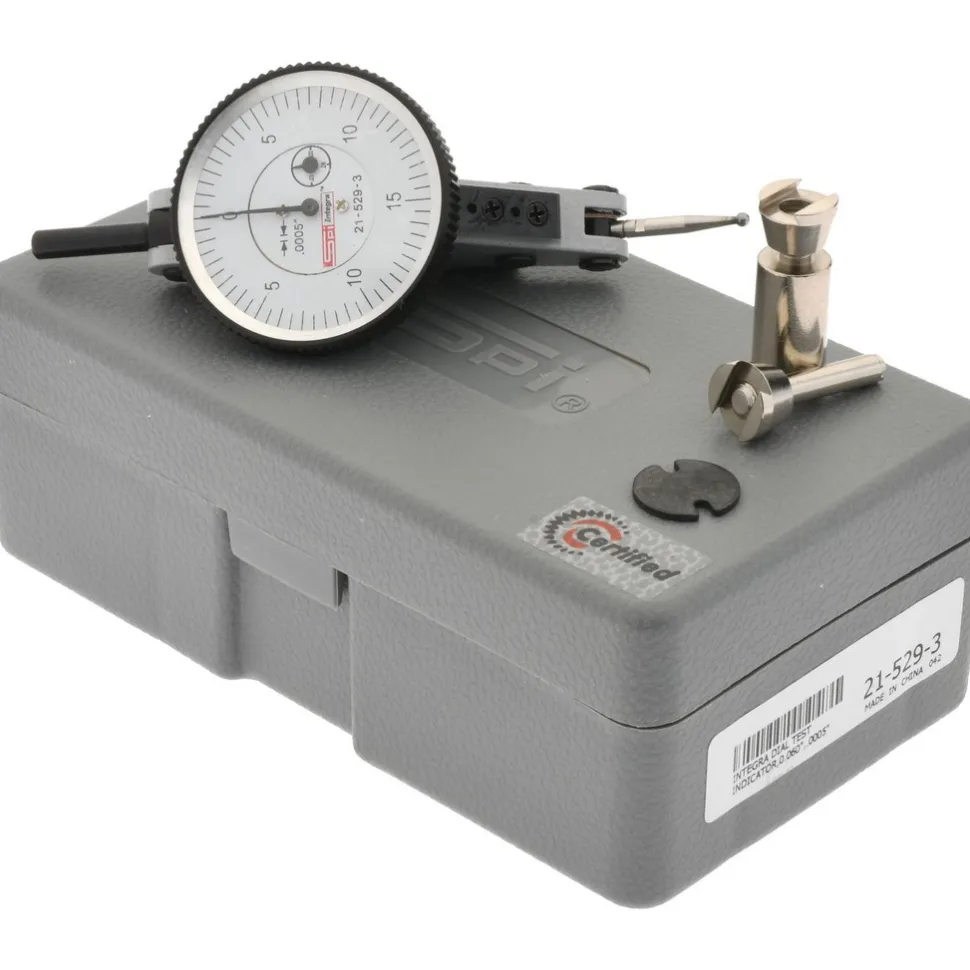

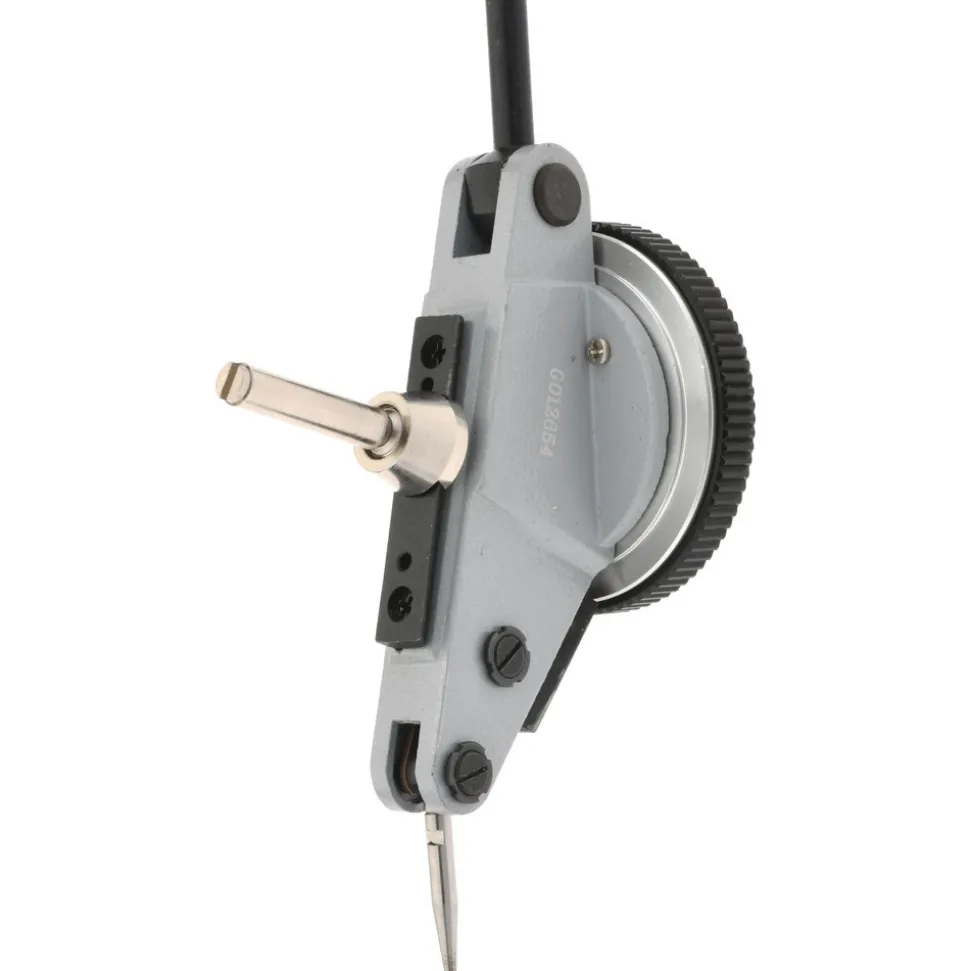

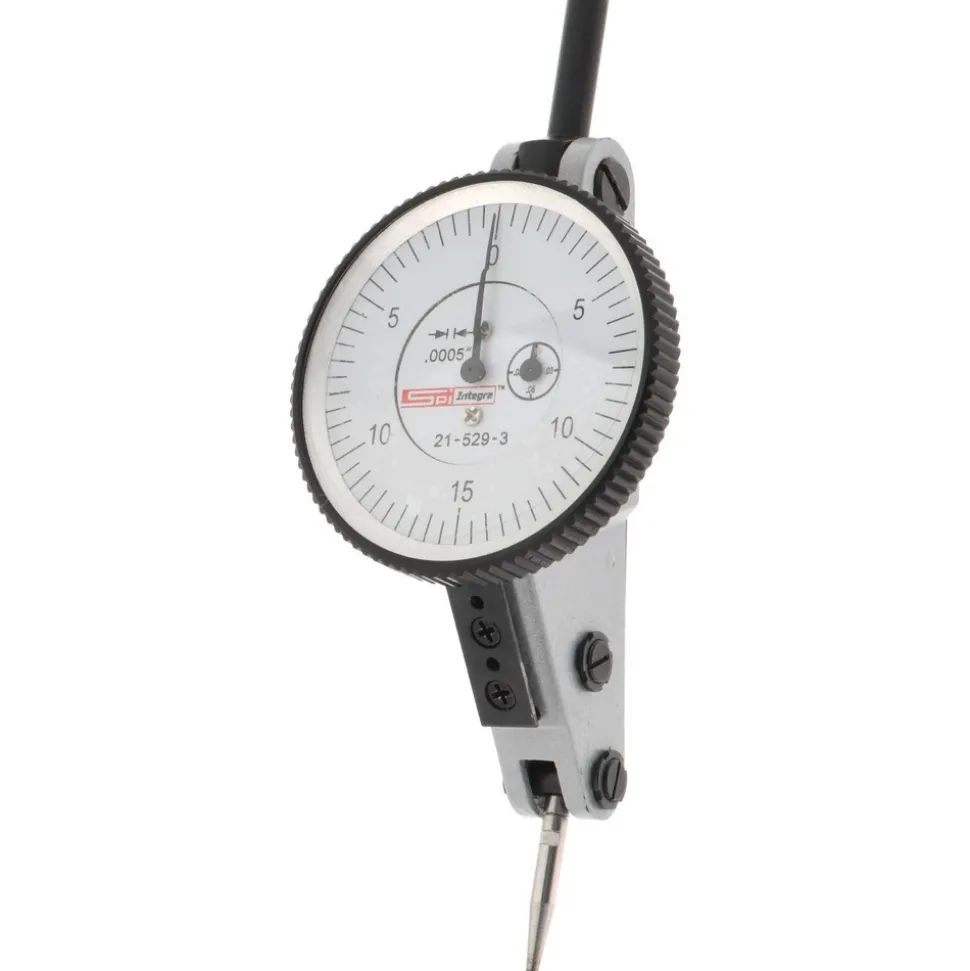

Horizontal Dial Test Indicator: 0.0600″ Max, 0-15-0 Dial Reading, 0.0008″ Accuracy
109,89 $
Specifications
| Minimum Measurement (Decimal Inch): 0 | Maximum Measurement (Decimal Inch): 0.0600 |
| Dial Reading: 0-15-0 | Accuracy (Decimal Inch): 0.0008 |
| Indicator Style: Horizontal | Bearing Type: Jeweled |
| Dial Diameter (Inch): 1-1/2 | Dial Color: White |
| Dial Graduation (Decimal Inch): 0.000500 | Standards: ASME B89.1.10M |
| Mount Type: Dovetail | Calibrated: Yes |
| Attachments: No | Number of Contact Points Included: 2 |
| Contact Point Swivel Angle: 210 | Features: Automatic Reversal, Jeweled Movement, Revolution Counter, Rotating Dial |
| Contact Point Length (Decimal Inch): 0.8600 | Contact Point Length (mm): 18.00 |
| Ball Diameter (Decimal Inch): 0.0790 | Range Per Revolution (Decimal Inch): 0.0600 |
| Style: Horizontal | Contents: Short Form Certificate of Calibration |
| Traceability Certification Included: NIST | UNSPSC Code: 41111630 |
| Country of Origin: China | |
| Minimum Measurement (Decimal Inch): 0 | |
| Maximum Measurement (Decimal Inch): 0.0600 | |
| Dial Reading: 0-15-0 | |
| Accuracy (Decimal Inch): 0.0008 | |
| Indicator Style: Horizontal | |
| Bearing Type: Jeweled | |
| Dial Diameter (Inch): 1-1/2 | |
| Dial Color: White | |
| Dial Graduation (Decimal Inch): 0.000500 | |
| Standards: ASME B89.1.10M | |
| Mount Type: Dovetail | |
| Calibrated: Yes | |
| Attachments: No | |
| Number of Contact Points Included: 2 | |
| Contact Point Swivel Angle: 210 | |
| Features: Automatic Reversal, Jeweled Movement, Revolution Counter, Rotating Dial | |
| Contact Point Length (Decimal Inch): 0.8600 | |
| Contact Point Length (mm): 18.00 | |
| Ball Diameter (Decimal Inch): 0.0790 | |
| Range Per Revolution (Decimal Inch): 0.0600 | |
| Style: Horizontal | |
| Contents: Short Form Certificate of Calibration | |
| Traceability Certification Included: NIST | |
| UNSPSC Code: 41111630 | |
| Country of Origin: China |
| MSC# | 37543857 |
| Mfr# | 21-529-3 |
| Big Book# | 1794 |
