Indexable Boring Bar: A08M-SCLCR2, 15.20 mm Min Bore, Right Hand, 12.70 mm Shank Dia, 0.000 deg Lead Angle, Steel
Original price was: 221,00 $.124,89 $Current price is: 124,89 $.

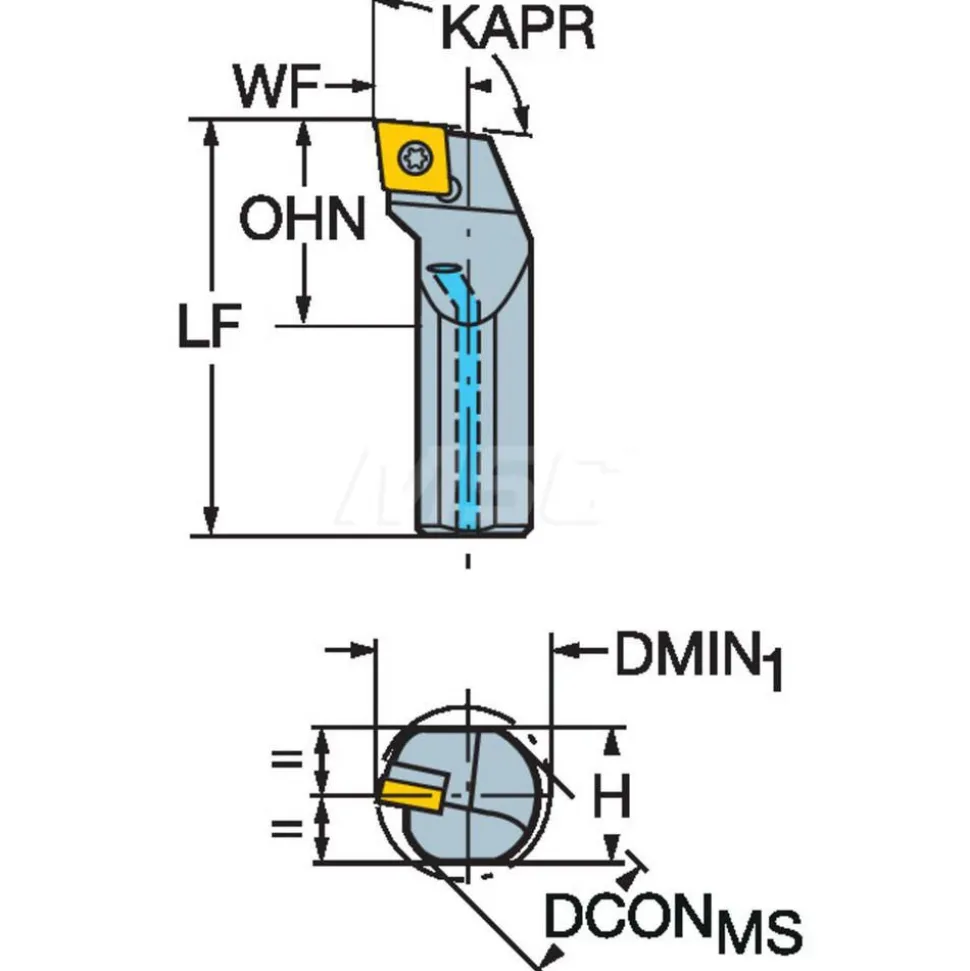

Specifications
| Minimum Bore Diameter (mm): 15.20 | Minimum Bore Diameter (Decimal Inch): 0.5984 |
| Toolholder Style: A-SCLC | Tool Material: Steel |
| Insert Compatibility: CCMT 21.51 | Shank Diameter (mm): 12.70 |
| Shank Diameter (Inch): 1/2 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 6.0000 | Overall Length (mm): 152.40 |
| Overall Length (Inch): 6 | Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.5984 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.5984 | Insert Holding Method: Screw Clamping |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: 0.000 | Series: CoroTurn 107 |
| Insert Inscribed Circle (Inch): 1/4 | Insert Inscribed Circle (Decimal Inch): 0.2500 |
| Insert Inscribed Circle (mm): 6.35 | Multi-use Tool: Yes |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | Back of Bar to Cutting Edge (mm): 152.40 |
| Center to Cutting Edge (Decimal Inch): 0.3120 | Center to Cutting Edge (mm): 7.92 |
| Number of Inserts Used on Toolholder: 1 | Neck Diameter (Decimal Inch): 0.5000 |
| UNSPSC Code: 23241601 | Neck Diameter (Inch): 1/2 |
| Insert Thickness (Decimal Inch): 0.0750 | Manufacturers Catalog Number: A08M-SCLCR 2 |
| Coolant Through: Yes | Country of Origin: India |
| Minimum Bore Diameter (mm): 15.20 | |
| Minimum Bore Diameter (Decimal Inch): 0.5984 | |
| Toolholder Style: A-SCLC | |
| Tool Material: Steel | |
| Insert Compatibility: CCMT 21.51 | |
| Shank Diameter (mm): 12.70 | |
| Shank Diameter (Inch): 1/2 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 6.0000 | |
| Overall Length (mm): 152.40 | |
| Overall Length (Inch): 6 | |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.5984 | |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.5984 | |
| Insert Holding Method: Screw Clamping | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: 0.000 | |
| Series: CoroTurn 107 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | |
| Insert Inscribed Circle (mm): 6.35 | |
| Multi-use Tool: Yes | |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | |
| Back of Bar to Cutting Edge (mm): 152.40 | |
| Center to Cutting Edge (Decimal Inch): 0.3120 | |
| Center to Cutting Edge (mm): 7.92 | |
| Number of Inserts Used on Toolholder: 1 | |
| Neck Diameter (Decimal Inch): 0.5000 | |
| UNSPSC Code: 23241601 | |
| Neck Diameter (Inch): 1/2 | |
| Insert Thickness (Decimal Inch): 0.0750 | |
| Manufacturers Catalog Number: A08M-SCLCR 2 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 35622711 |
| Mfr# | 5721312 |
