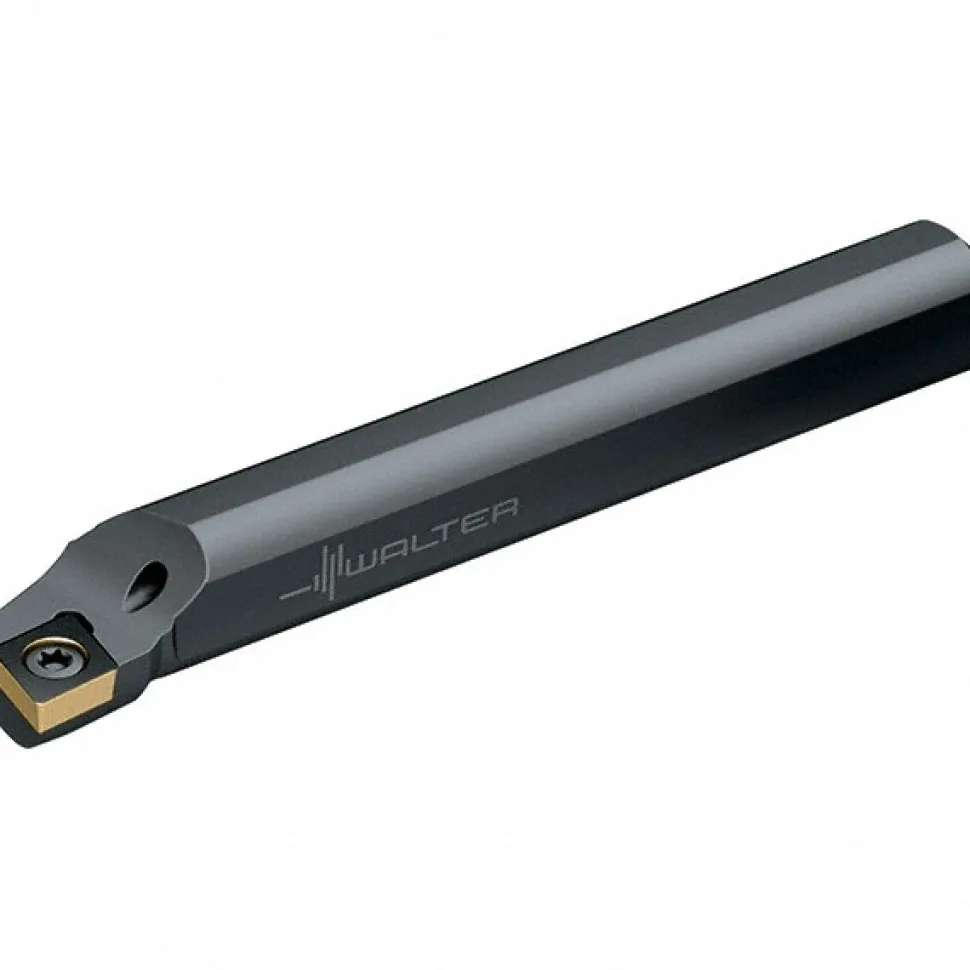

Indexable Boring Bar: A12S-SCLCR3, 0.9290″ Min Bore, Right Hand, 95.000 deg Lead Angle, Steel
132,89 $
Specifications

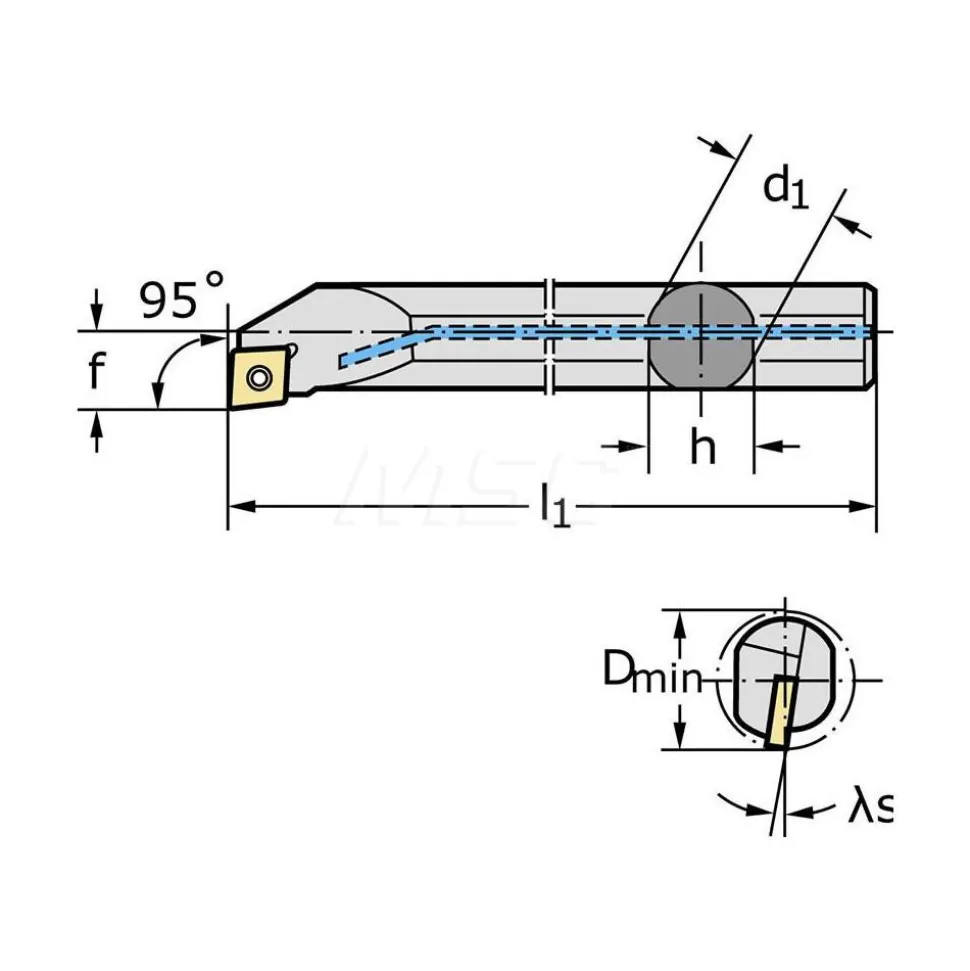

| Minimum Bore Diameter (Decimal Inch): 0.9290 | Toolholder Style: A-SCLC |
| Tool Material: Steel | Insert Compatibility: CC.. 09T3..; CC.. 32.5.. |
| Shank Diameter (Inch): 3/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 10.0000 | Compatible Insert Size Code: 32.5; 09T3 |
| Insert Holding Method: Screw | Compatible Insert Shape: Diamond |
| Rake: Neutral | Lead Angle: 95.000 |
| Series: Walter Turn | Insert Inscribed Circle (Inch): 3/8 |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | Insert Inscribed Circle (mm): 9.53 |
| Compatible Insert Thickness (mm): 3.97 | Multi-use Tool: No |
| Cutting Tool Application: Boring | Center to Cutting Edge (Decimal Inch): 0.5000 |
| Standards: ISO; ANSI | UNSPSC Code: 23241601 |
| Insert Thickness (Decimal Inch): 0.1563 | Insert Thickness (Inch): 5/32 |
| Coolant Through: Yes | Country of Origin: Sweden |
| Minimum Bore Diameter (Decimal Inch): 0.9290 | |
| Toolholder Style: A-SCLC | |
| Tool Material: Steel | |
| Insert Compatibility: CC.. 09T3..; CC.. 32.5.. | |
| Shank Diameter (Inch): 3/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 10.0000 | |
| Compatible Insert Size Code: 32.5; 09T3 | |
| Insert Holding Method: Screw | |
| Compatible Insert Shape: Diamond | |
| Rake: Neutral | |
| Lead Angle: 95.000 | |
| Series: Walter Turn | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (mm): 9.53 | |
| Compatible Insert Thickness (mm): 3.97 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Boring | |
| Center to Cutting Edge (Decimal Inch): 0.5000 | |
| Standards: ISO; ANSI | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Insert Thickness (Inch): 5/32 | |
| Coolant Through: Yes | |
| Country of Origin: Sweden |
| MSC# | 53187142 |
| Mfr# | 5204717 |
