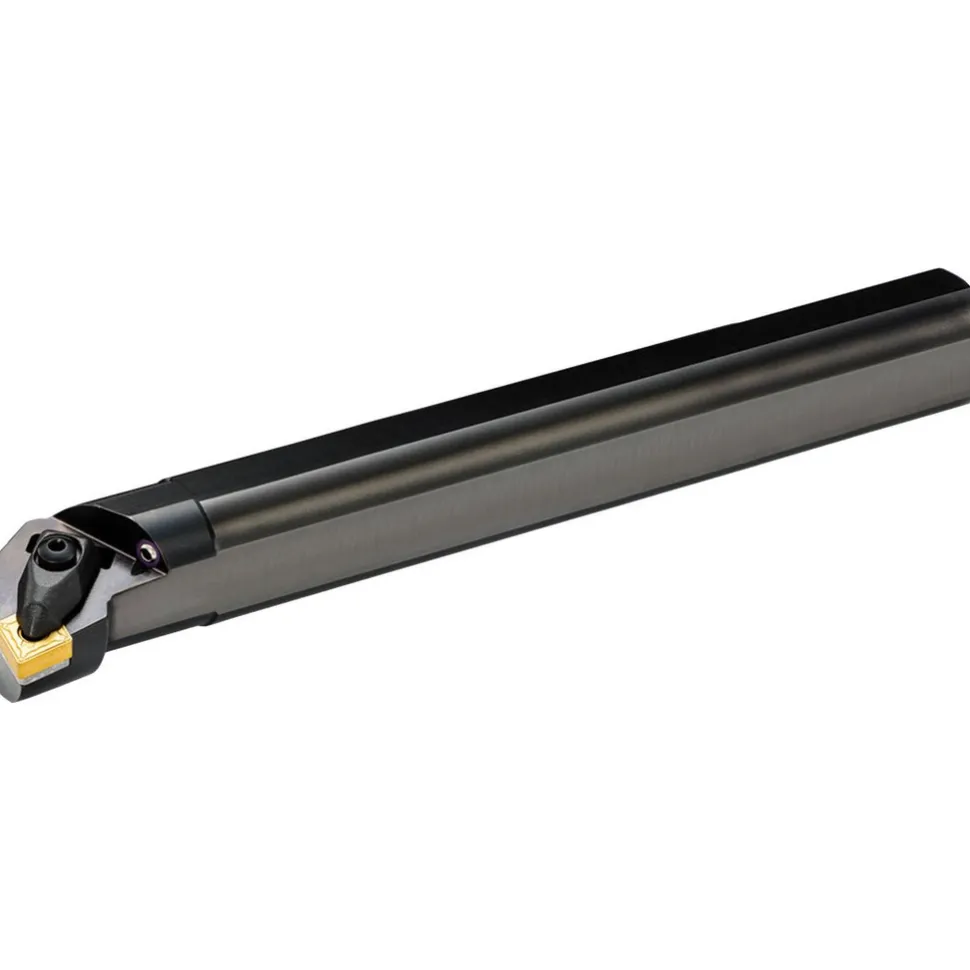

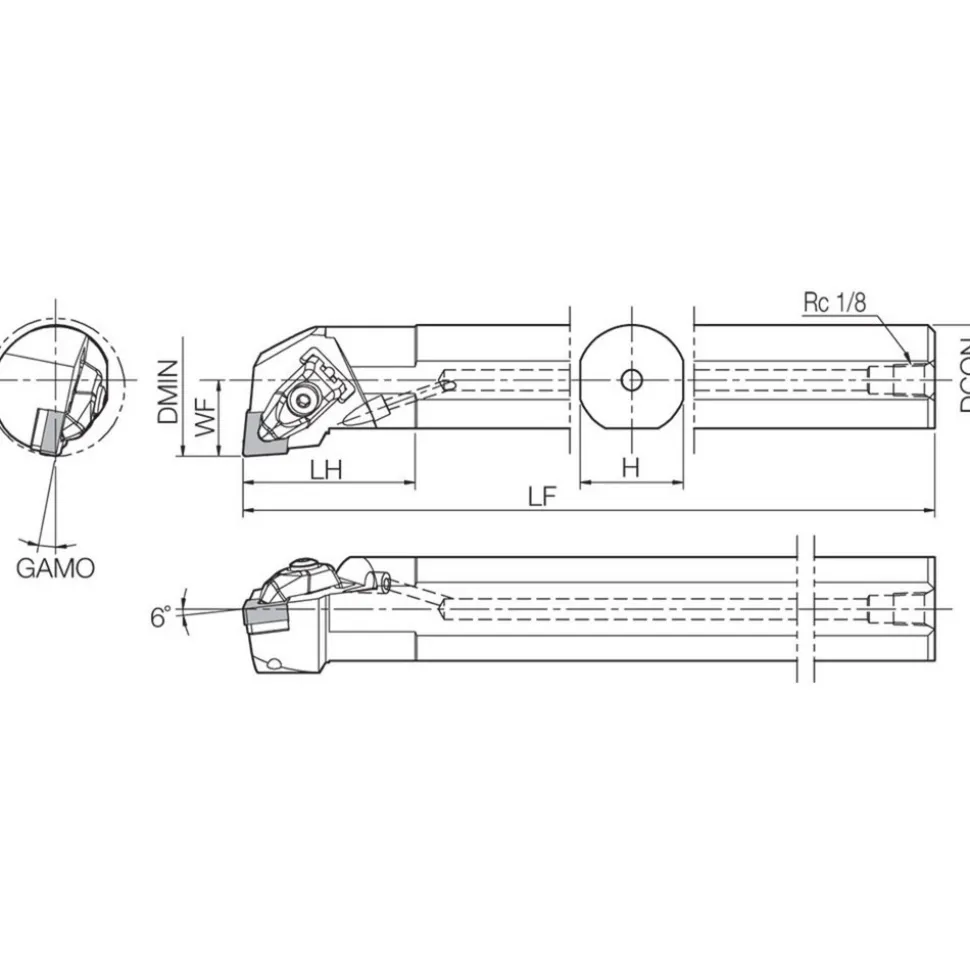

Indexable Boring Bar: A16TDCLNR4, 1.2500″ Min Bore, Right Hand, 5.000 deg Lead Angle, Steel
120,89 $
Specifications
| Minimum Bore Diameter (Decimal Inch): 1.2500 | Maximum Bore Depth (Decimal Inch): 1.5750 |
| Toolholder Style: DCLN | Tool Material: Steel |
| Insert Compatibility: CNMG 43.. | Shank Diameter (Inch): 1 |
| Hand of Holder: Right Hand | Overall Length (Decimal Inch): 12.0000 |
| Compatible Insert Size Code: 43 | Insert Holding Method: Screw Clamping |
| Compatible Insert Shape: Diamond | Rake: Negative |
| Rake Angle: -12.000 | Lead Angle: 5.000 |
| Series: DBCB | Insert Inscribed Circle (Inch): 1/2 |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | Compatible Insert Thickness (Decimal Inch): 0.1875 |

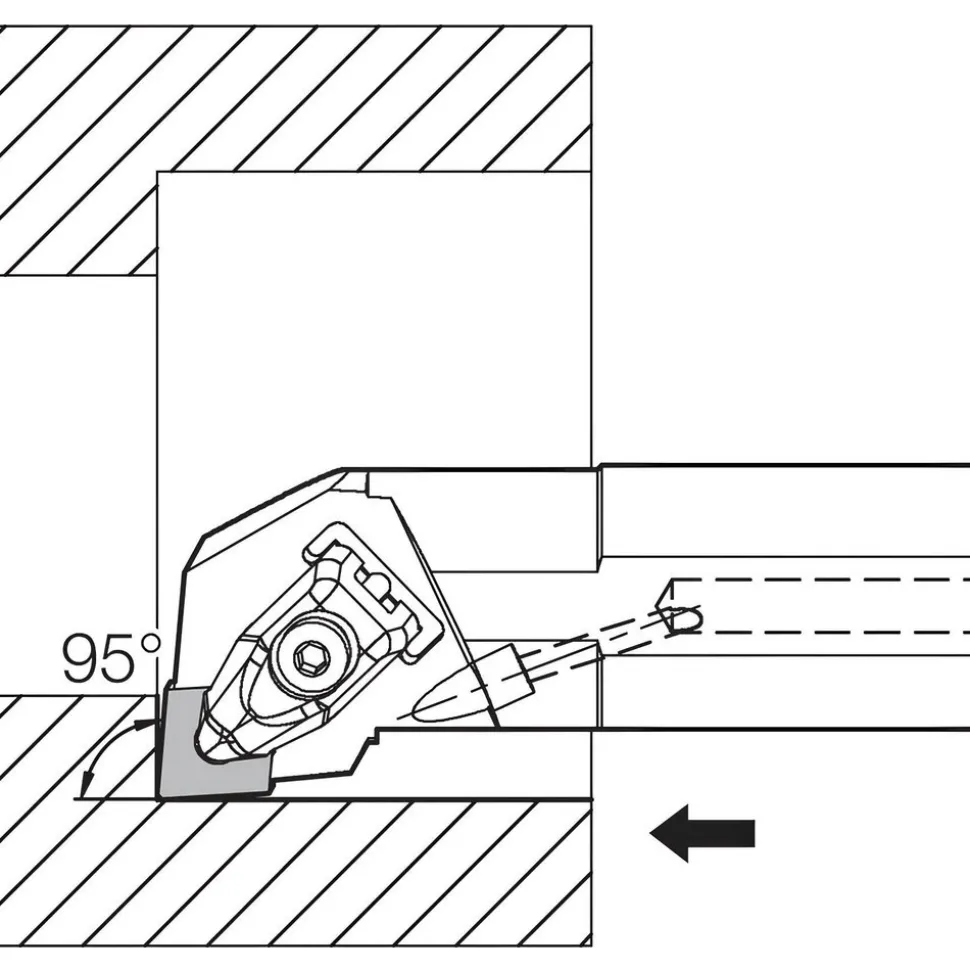

| Multi-use Tool: Yes | Cutting Tool Application: Facing; Boring |
| Center to Cutting Edge (Decimal Inch): 0.6400 | Number of Inserts Used on Toolholder: 1 |
| UNSPSC Code: 23241601 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (Decimal Inch): 1.2500 | |
| Maximum Bore Depth (Decimal Inch): 1.5750 | |
| Toolholder Style: DCLN | |
| Tool Material: Steel | |
| Insert Compatibility: CNMG 43.. | |
| Shank Diameter (Inch): 1 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 12.0000 | |
| Compatible Insert Size Code: 43 | |
| Insert Holding Method: Screw Clamping | |
| Compatible Insert Shape: Diamond | |
| Rake: Negative | |
| Rake Angle: -12.000 | |
| Lead Angle: 5.000 | |
| Series: DBCB | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Compatible Insert Thickness (Decimal Inch): 0.1875 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Facing; Boring | |
| Center to Cutting Edge (Decimal Inch): 0.6400 | |
| Number of Inserts Used on Toolholder: 1 | |
| UNSPSC Code: 23241601 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 50479575 |
| Mfr# | OTM87663 |
