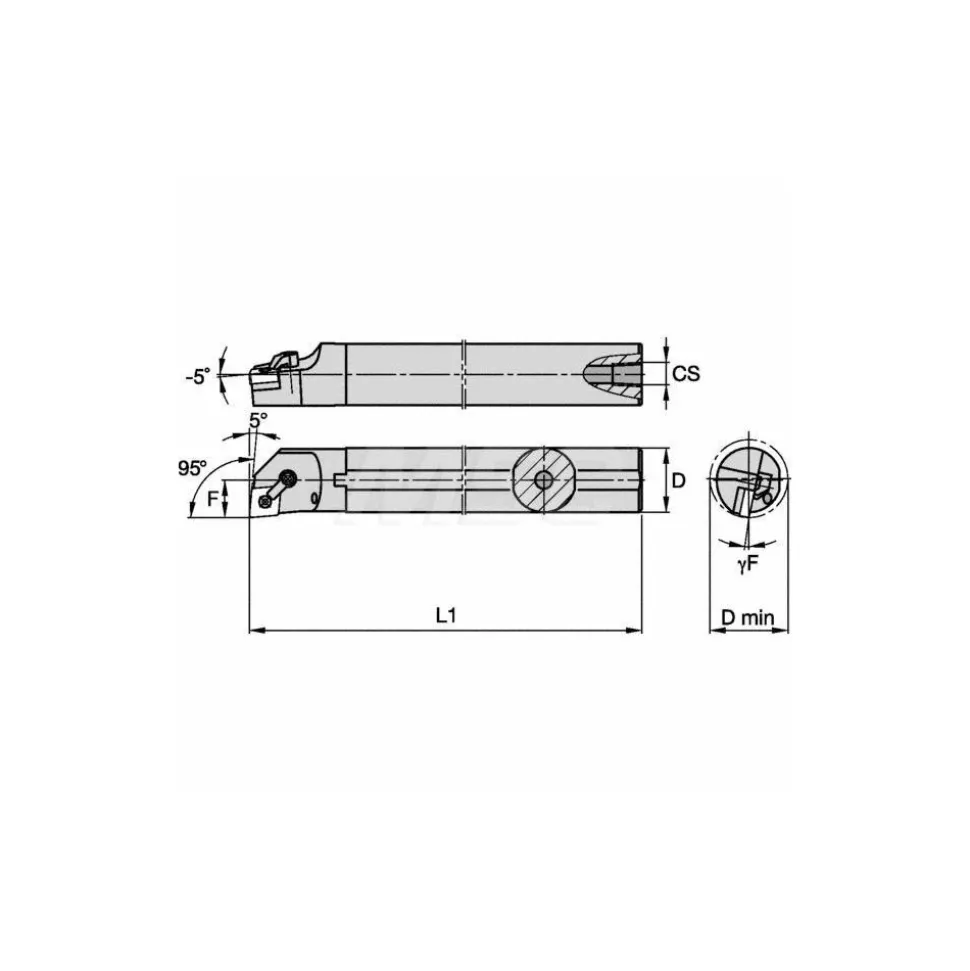

Indexable Boring Bar: A20UMCLNR4, 37.34 mm Min Bore, Right Hand, 31.75 mm Shank Dia, -5.000 deg Lead Angle, Steel
140,89 $
Specifications
| Minimum Bore Diameter (mm): 37.34 | Minimum Bore Diameter (Decimal Inch): 1.4700 |
| Toolholder Style: A-MCLN | Tool Material: Steel |
| Insert Compatibility: CN.. | Shank Diameter (mm): 31.75 |
| Shank Diameter (Inch): 1-1/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 14.0000 | Overall Length (mm): 355.60 |
| Insert Holding Method: Screw; Clamp | Rake: Negative |
| Rake Angle: 5.000 | Lead Angle: -5.000 |
| Series: Kenloc | Insert Inscribed Circle (Inch): 1/2 |
| Multi-use Tool: No | Back of Bar to Cutting Edge (mm): 19.43 |
| Center to Cutting Edge (Decimal Inch): 0.7650 | Coolant Hole Thread Size (Inch): 1/4-18 NPT |
| UNSPSC Code: 23241601 | Insert Thickness (Inch): 3/16 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (mm): 37.34 | |
| Minimum Bore Diameter (Decimal Inch): 1.4700 | |
| Toolholder Style: A-MCLN | |
| Tool Material: Steel | |
| Insert Compatibility: CN.. | |
| Shank Diameter (mm): 31.75 | |
| Shank Diameter (Inch): 1-1/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 14.0000 | |
| Overall Length (mm): 355.60 | |
| Insert Holding Method: Screw; Clamp | |
| Rake: Negative | |
| Rake Angle: 5.000 | |
| Lead Angle: -5.000 | |
| Series: Kenloc | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Multi-use Tool: No | |
| Back of Bar to Cutting Edge (mm): 19.43 | |
| Center to Cutting Edge (Decimal Inch): 0.7650 | |
| Coolant Hole Thread Size (Inch): 1/4-18 NPT | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/16 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 86226651 |
| Mfr# | 1096418 |
| Big Book# | 851 |
