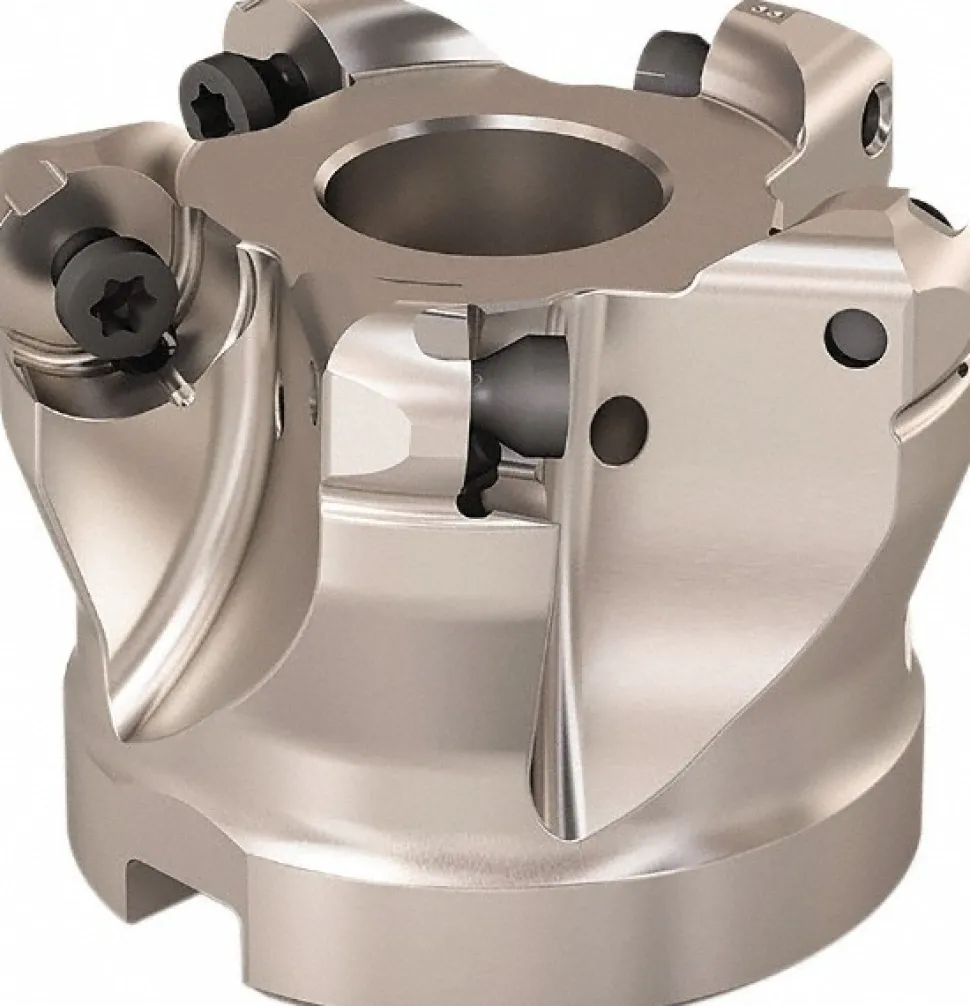

Indexable Copy Face Mill: 2″ Max Cut Dia, 3/4″ Arbor Hole
140,89 $
Specifications
| Minimum Cutting Diameter (mm): 38.80 | Cutting Diameter (Decimal Inch): 2.0000 |
| Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: RP 1204 |
| Cutter Style: R220.29 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Series: R220.29 |
| Hub Diameter (mm): 42.00 | Counterbore Diameter (mm): 19.05 |
| Keyway Width (Decimal Inch): 0.3200 | Overall Height (Inch): 1-1/2 |
| Overall Height (Decimal Inch): 1.5000 | Maximum RPM: 12500 |
| Tool Application: Helical Interpolation; Ramping | Maximum Ramping Angle: 6.50 |
| Insert Inscribed Circle (mm): 12.00 | Number Of Cutter Inserts: 5 |
| Coolant Through: Yes | Overall Diameter (Decimal Inch – 4 Decimals): 2.0000 |
| UNSPSC Code: 27112803 | Country of Origin: France |
| Minimum Cutting Diameter (mm): 38.80 | |
| Cutting Diameter (Decimal Inch): 2.0000 | |
| Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: RP 1204 | |
| Cutter Style: R220.29 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: R220.29 | |
| Hub Diameter (mm): 42.00 | |
| Counterbore Diameter (mm): 19.05 | |
| Keyway Width (Decimal Inch): 0.3200 | |
| Overall Height (Inch): 1-1/2 | |
| Overall Height (Decimal Inch): 1.5000 | |
| Maximum RPM: 12500 | |
| Tool Application: Helical Interpolation; Ramping | |
| Maximum Ramping Angle: 6.50 | |
| Insert Inscribed Circle (mm): 12.00 | |
| Number Of Cutter Inserts: 5 | |
| Coolant Through: Yes | |
| Overall Diameter (Decimal Inch – 4 Decimals): 2.0000 | |
| UNSPSC Code: 27112803 | |
| Country of Origin: France |
| MSC# | 61380069 |
| Mfr# | 02949643 |
