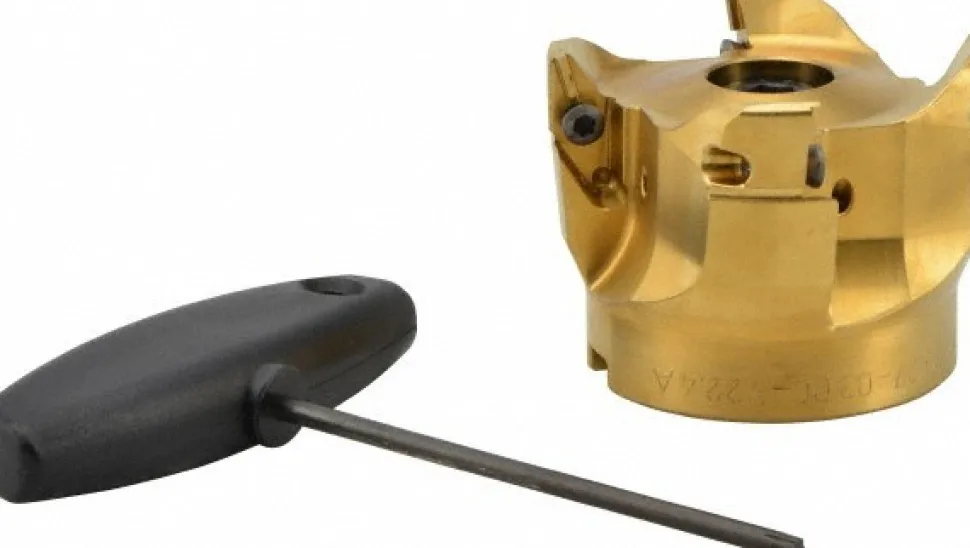

Indexable Copy Face Mill: 76.2 mm Max Cut Dia
Original price was: 1 296,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 3.0000 | Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (mm): 76.20 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: VPGX2206E-E10 |
| Cutter Style: R220.97 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Series: R220.97 |
| Hub Diameter (mm): 62.00 | Counterbore Diameter (mm): 25.40 |
| Keyway Width (Decimal Inch): 0.3800 | Overall Height (Decimal Inch): 2.2500 |
| Maximum RPM: 25000 | Tool Application: Helical Interpolation; Ramping |
| Maximum Ramping Angle: 5.00 | Insert Inscribed Circle (mm): 22.00 |
| Complete Insert Compatibility: VPGX 220631EN-E10; VPGX 220631FN-E06 | Number Of Cutter Inserts: 4 |
| Coolant Through: Yes | UNSPSC Code: 27112803 |
| Country of Origin: France | |
| Cutting Diameter (Decimal Inch): 3.0000 | |
| Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: VPGX2206E-E10 | |
| Cutter Style: R220.97 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: R220.97 | |
| Hub Diameter (mm): 62.00 | |
| Counterbore Diameter (mm): 25.40 | |
| Keyway Width (Decimal Inch): 0.3800 | |
| Overall Height (Decimal Inch): 2.2500 | |
| Maximum RPM: 25000 | |
| Tool Application: Helical Interpolation; Ramping | |
| Maximum Ramping Angle: 5.00 | |
| Insert Inscribed Circle (mm): 22.00 | |
| Complete Insert Compatibility: VPGX 220631EN-E10; VPGX 220631FN-E06 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: France |
| MSC# | 93675858 |
| Mfr# | 00050756 |
| Big Book# | 677 |
