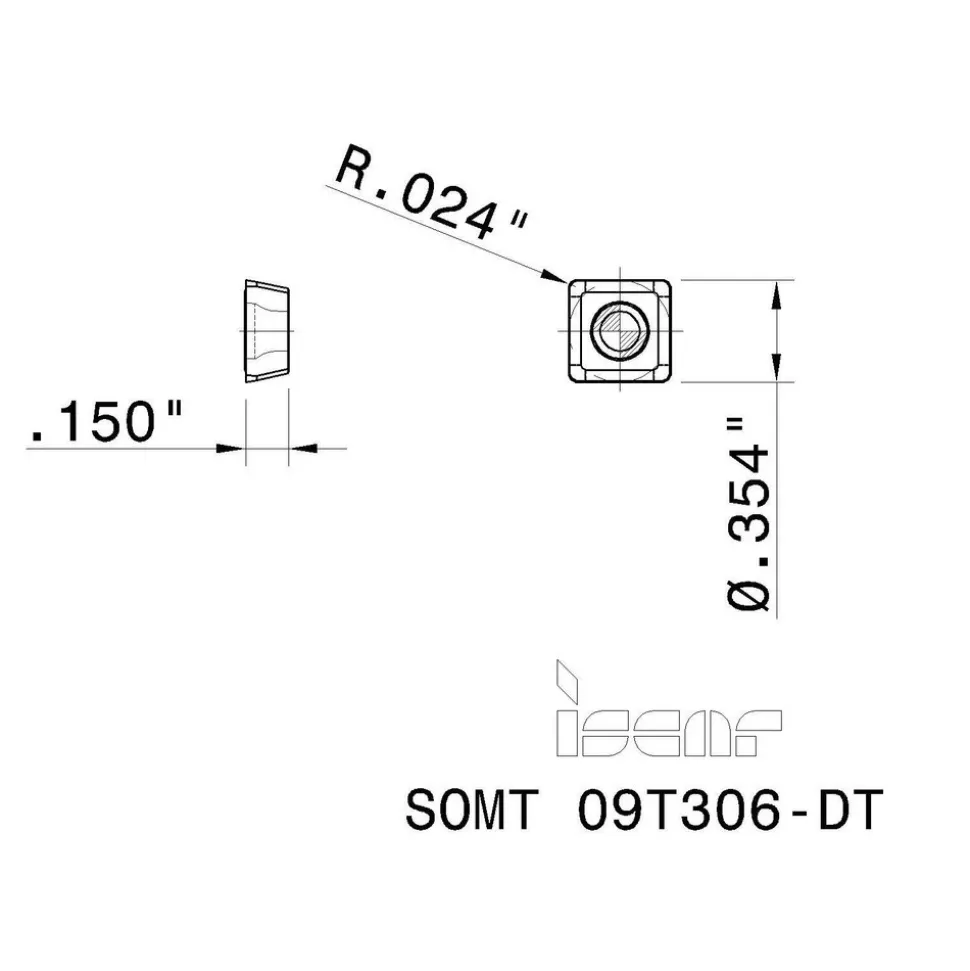

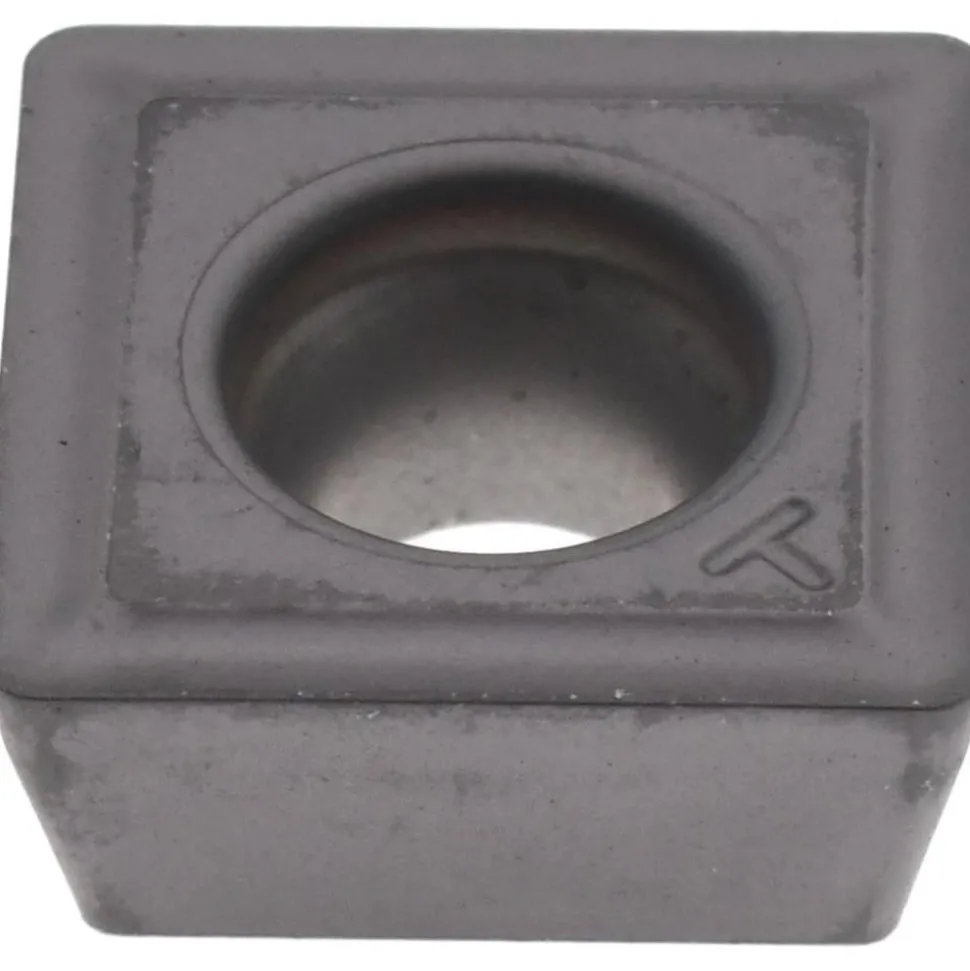

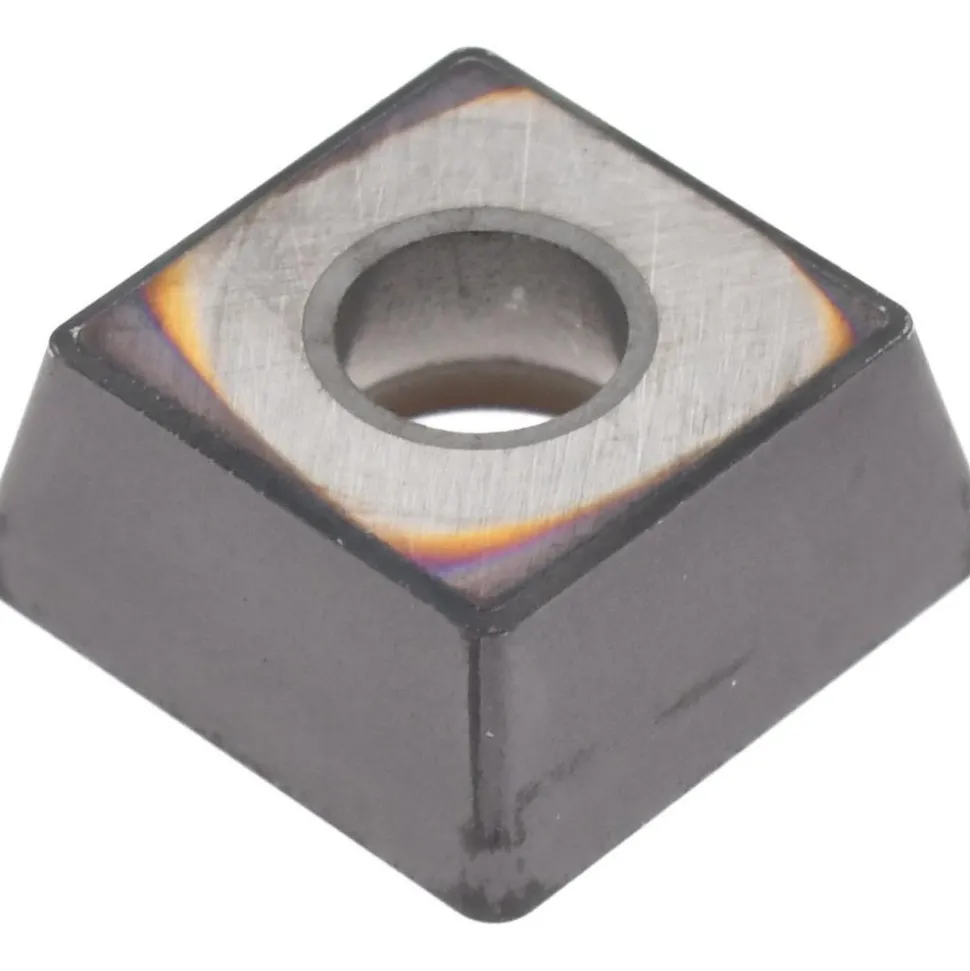

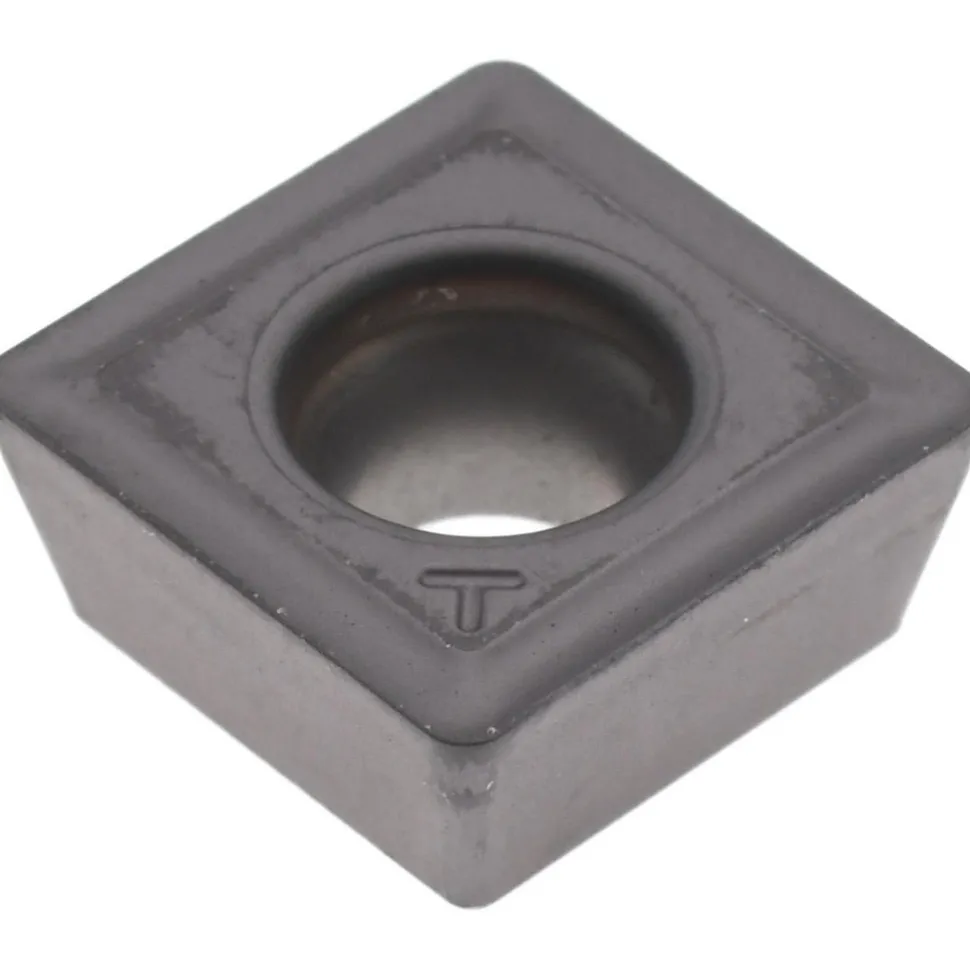

Indexable Drill Insert: SOMT09T306DT IC908, Carbide
Original price was: 22,00 $.15,89 $Current price is: 15,89 $.
Specifications
| Insert Style: SOMT | Insert Material: Carbide |
| Manufacturer Grade: IC908 | Inscribed Circle (Decimal Inch): 0.3543 |
| Inscribed Circle (mm): 9.00 | Corner Radius (Decimal Inch): 0.0236 |
| Corner Radius (mm): 0.60 | Chipbreaker: DT |
| Series: DR-TWIST | Material Grade: C6; C7; C1; C2 |
| Coating Process: PVD | Shape: Square |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; S; H; K; M |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| Insert Size: 09T306 | Width (mm – 2 Decimals): 9.00 |
| Length (Mm): 9.00 | Width (Decimal Inch – 4 Decimals): 0.3540 |
| Length (Decimal Inch – 4 Decimals): 0.3540 | Thickness (Decimal Inch – 4 Decimals): 0.1500 |
| Coating/Finish: TiAlN | Insert Size Code: 09 |
| UNSPSC Code: 23242105 | Country of Origin: Israel |
| Insert Style: SOMT | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Inscribed Circle (Decimal Inch): 0.3543 | |
| Inscribed Circle (mm): 9.00 | |
| Corner Radius (Decimal Inch): 0.0236 | |
| Corner Radius (mm): 0.60 | |
| Chipbreaker: DT | |
| Series: DR-TWIST | |
| Material Grade: C6; C7; C1; C2 | |
| Coating Process: PVD | |
| Shape: Square | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Insert Size: 09T306 | |
| Width (mm – 2 Decimals): 9.00 | |
| Length (Mm): 9.00 | |
| Width (Decimal Inch – 4 Decimals): 0.3540 | |
| Length (Decimal Inch – 4 Decimals): 0.3540 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1500 | |
| Coating/Finish: TiAlN | |
| Insert Size Code: 09 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 85805471 |
| Mfr# | 5505240 |
