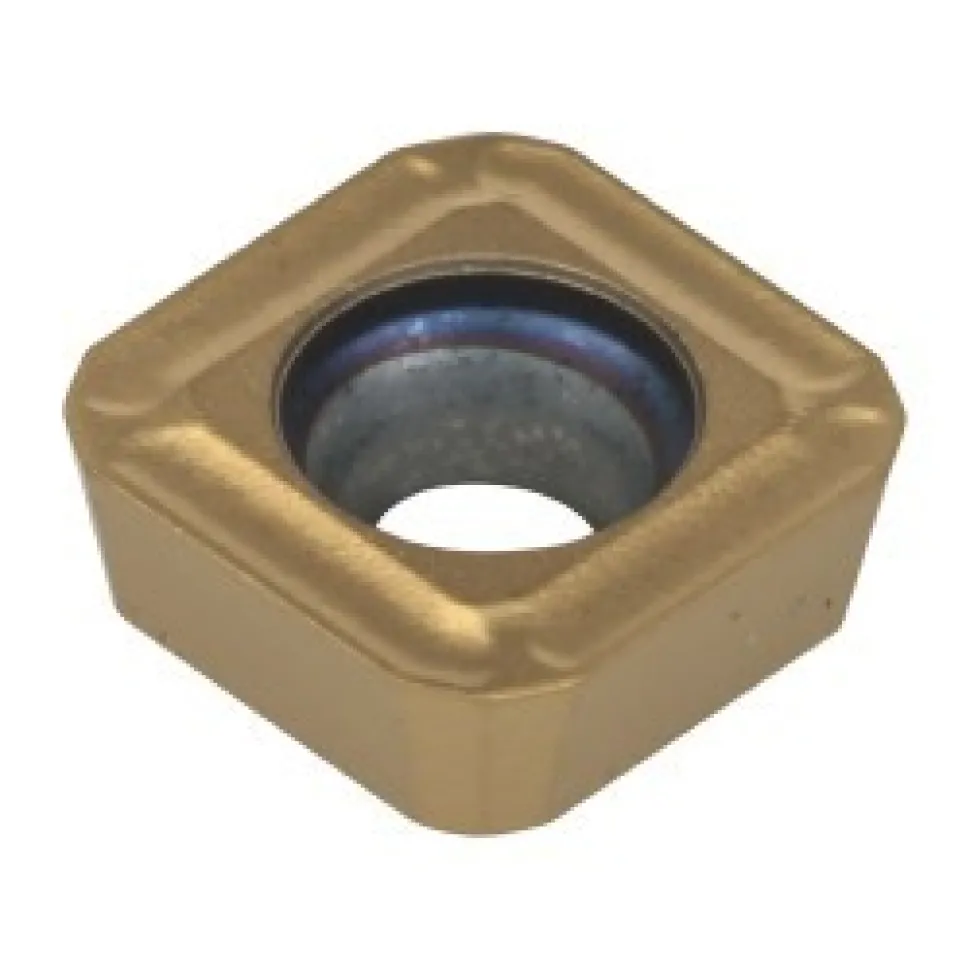

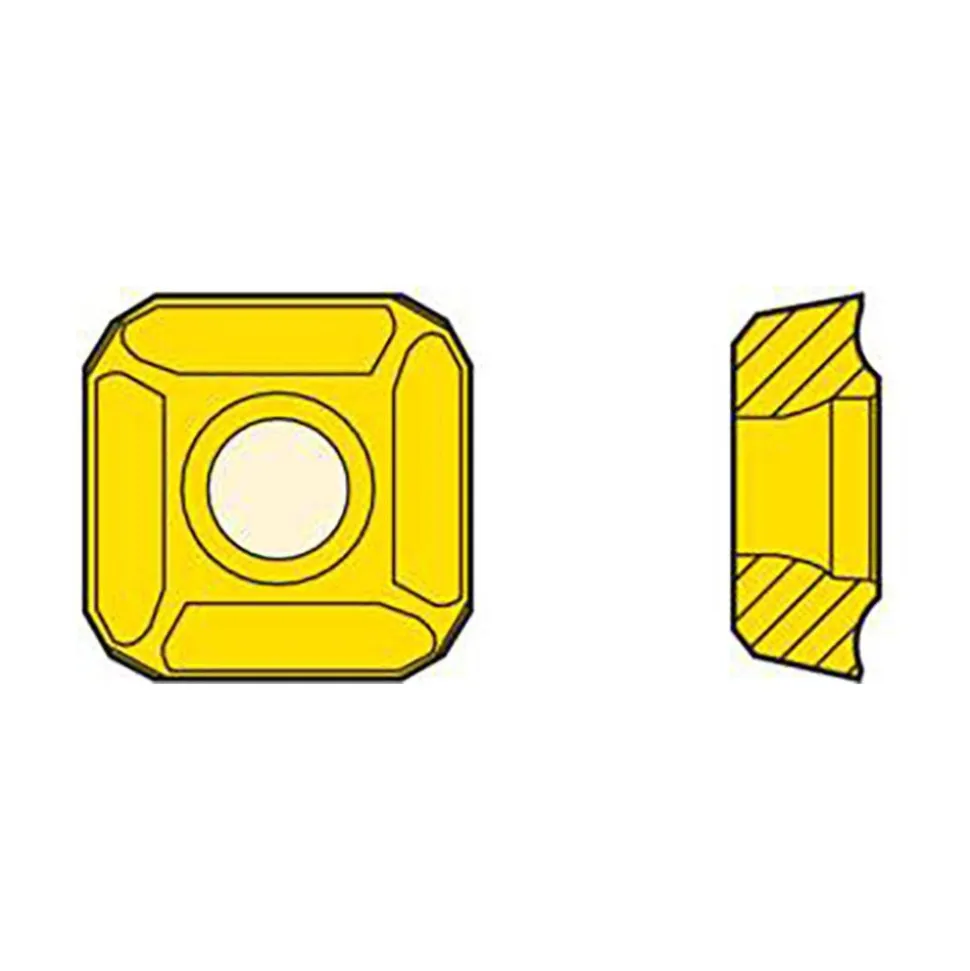

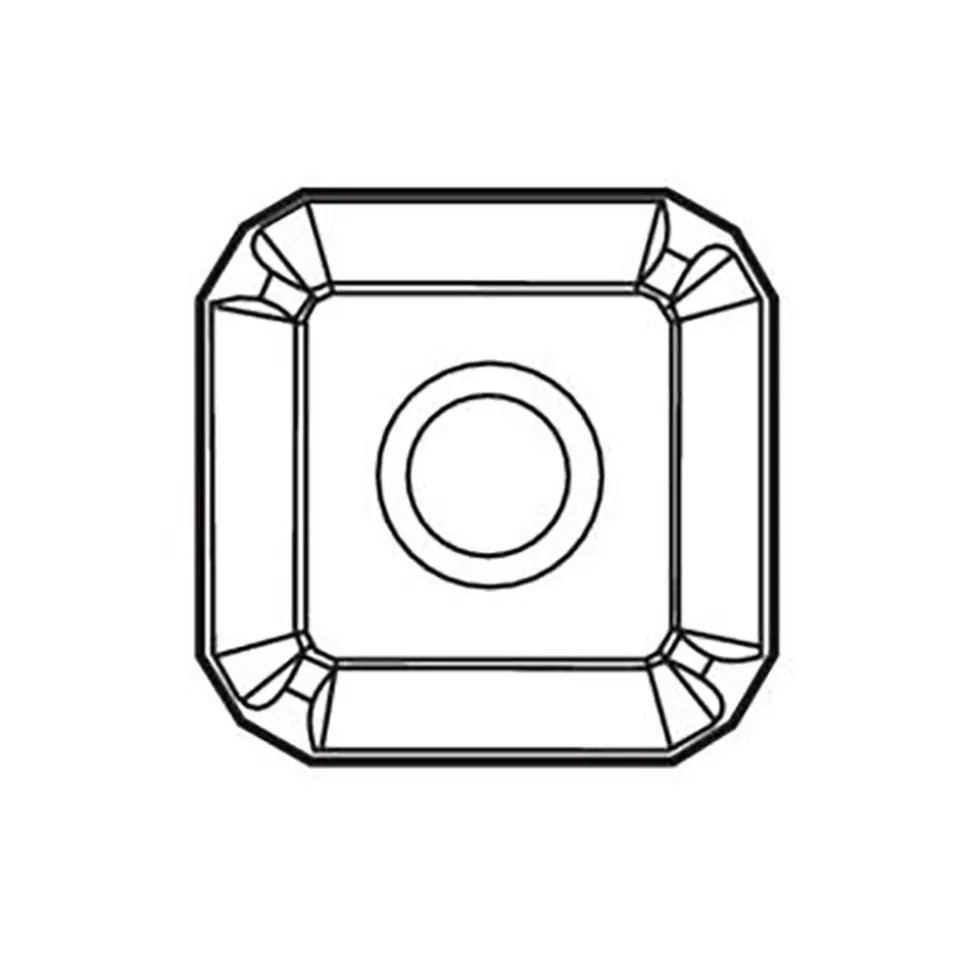

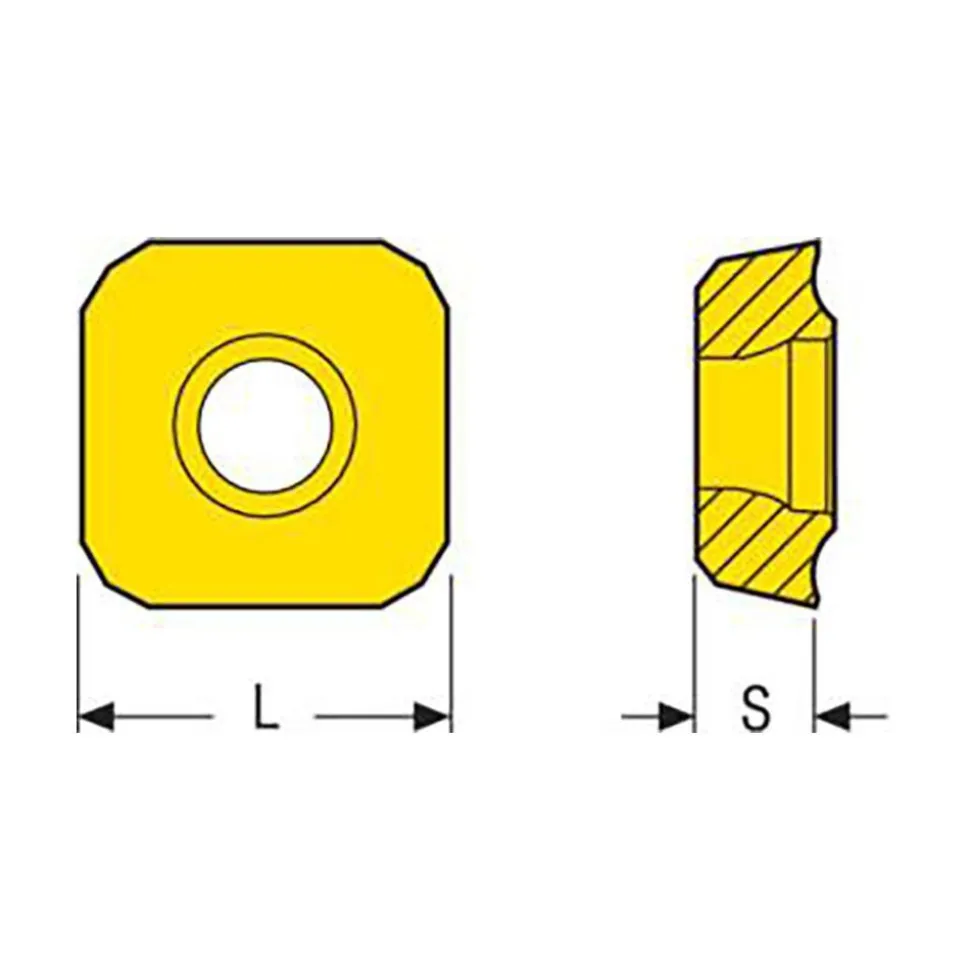

Indexable Drill Insert: SPGX0602-C1 T400D, Carbide

Original price was: 26,00 $.Current price is: 18,89 $.

Specifications

Insert Style: SPGX	Insert Material: Carbide
Manufacturer Grade: T400D	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (mm): 6.35	Chipbreaker: C1
Series: Perfomax	Material Grade: C1
Coating Process: PVD	Shape: Square
Relief Angle: 11.000	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N	Insert Size: 0602
Width (mm – 2 Decimals): 6.35	Length (Mm): 6.35
Width (Decimal Inch – 4 Decimals): 0.2500	Length (Decimal Inch – 4 Decimals): 0.2500
Included Angle Degree: 90	Coating/Finish: TiN; TiAlN
Insert Size Code: 06	Hole Diameter (Decimal Inch): 0.1020 in
UNSPSC Code: 23242105	Country of Origin: India
Insert Style: SPGX
Insert Material: Carbide
Manufacturer Grade: T400D
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (mm): 6.35
Chipbreaker: C1
Series: Perfomax
Material Grade: C1
Coating Process: PVD
Shape: Square
Relief Angle: 11.000
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Insert Size: 0602
Width (mm – 2 Decimals): 6.35
Length (Mm): 6.35
Width (Decimal Inch – 4 Decimals): 0.2500
Length (Decimal Inch – 4 Decimals): 0.2500
Included Angle Degree: 90
Coating/Finish: TiN; TiAlN
Insert Size Code: 06
Hole Diameter (Decimal Inch): 0.1020 in
UNSPSC Code: 23242105
Country of Origin: India
