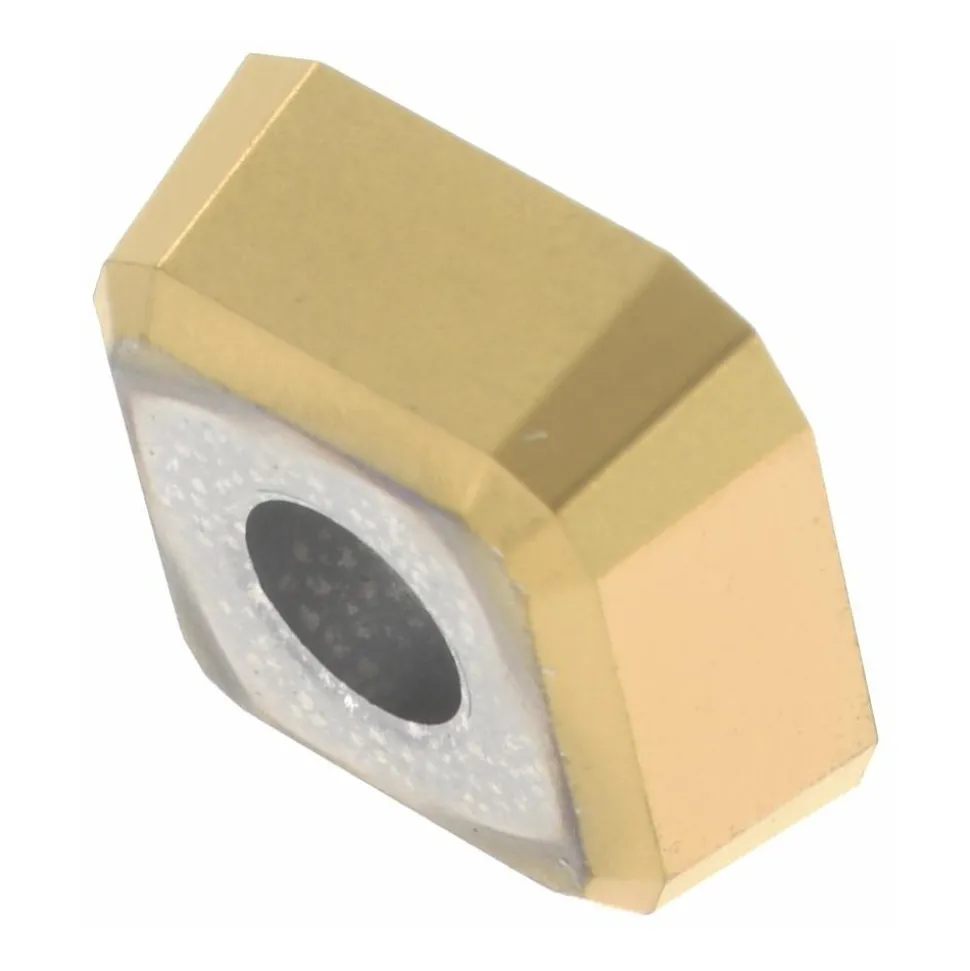

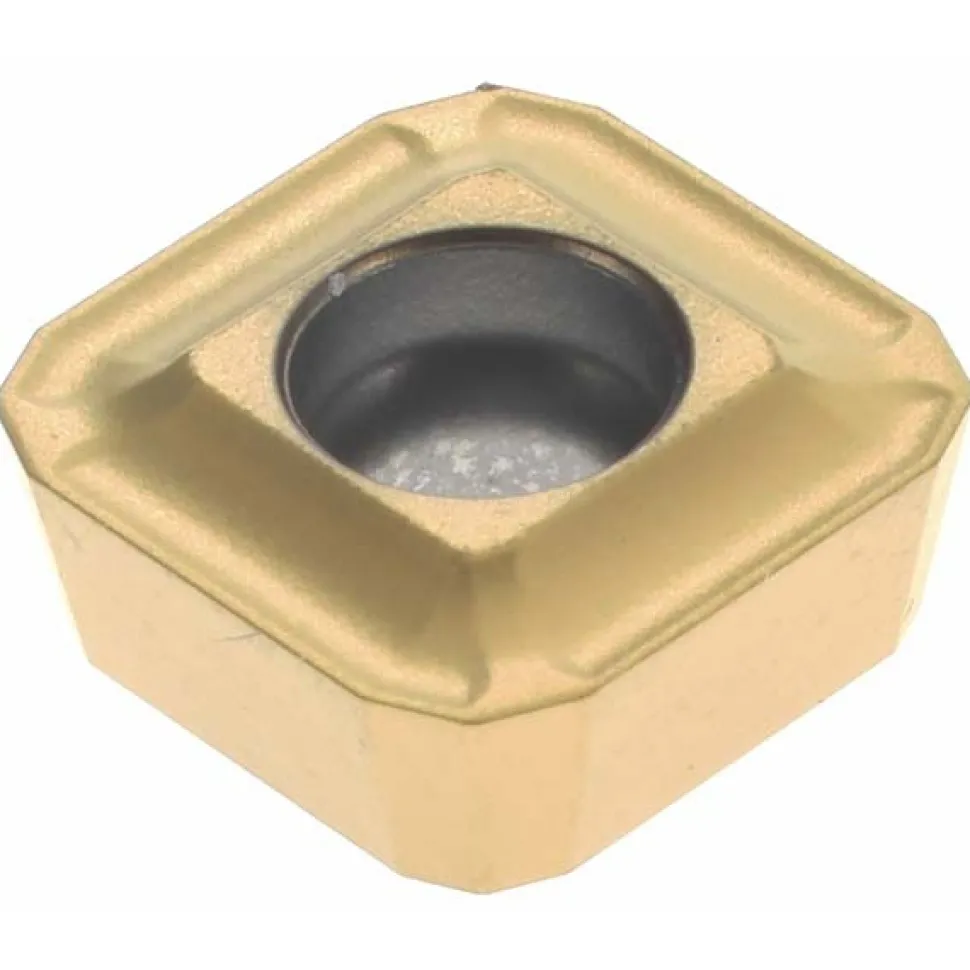

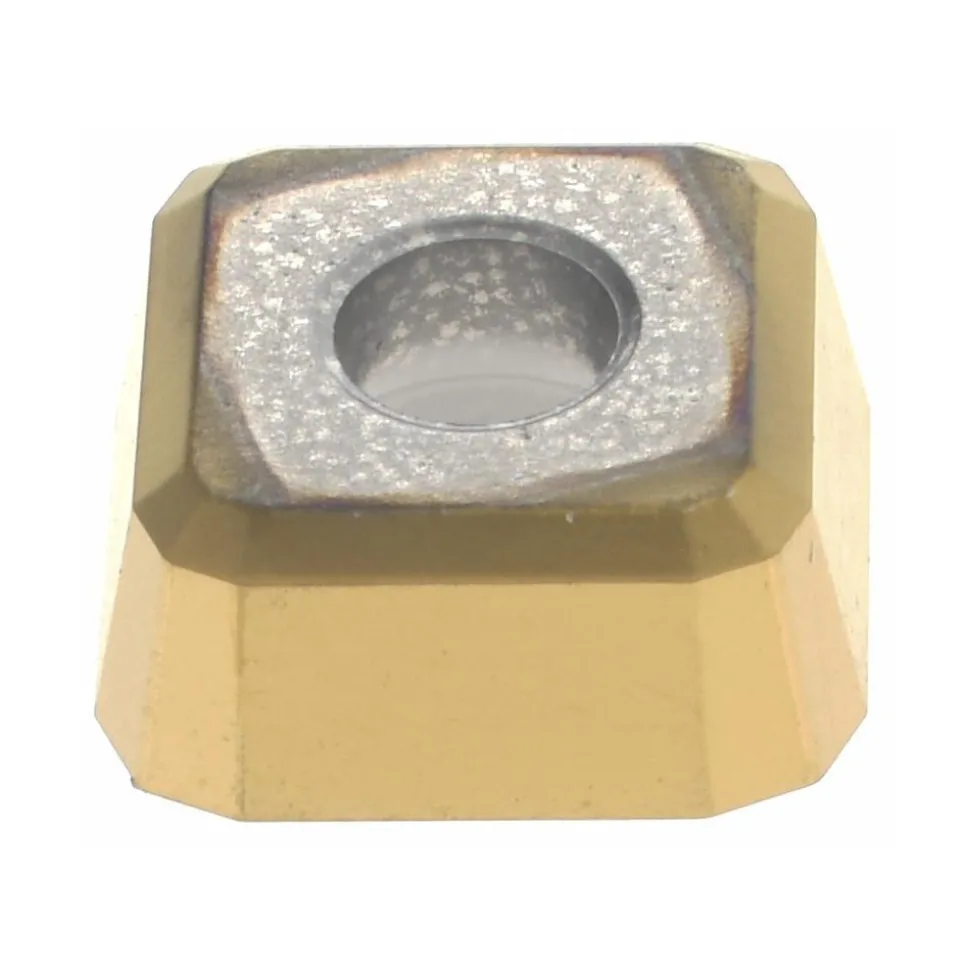

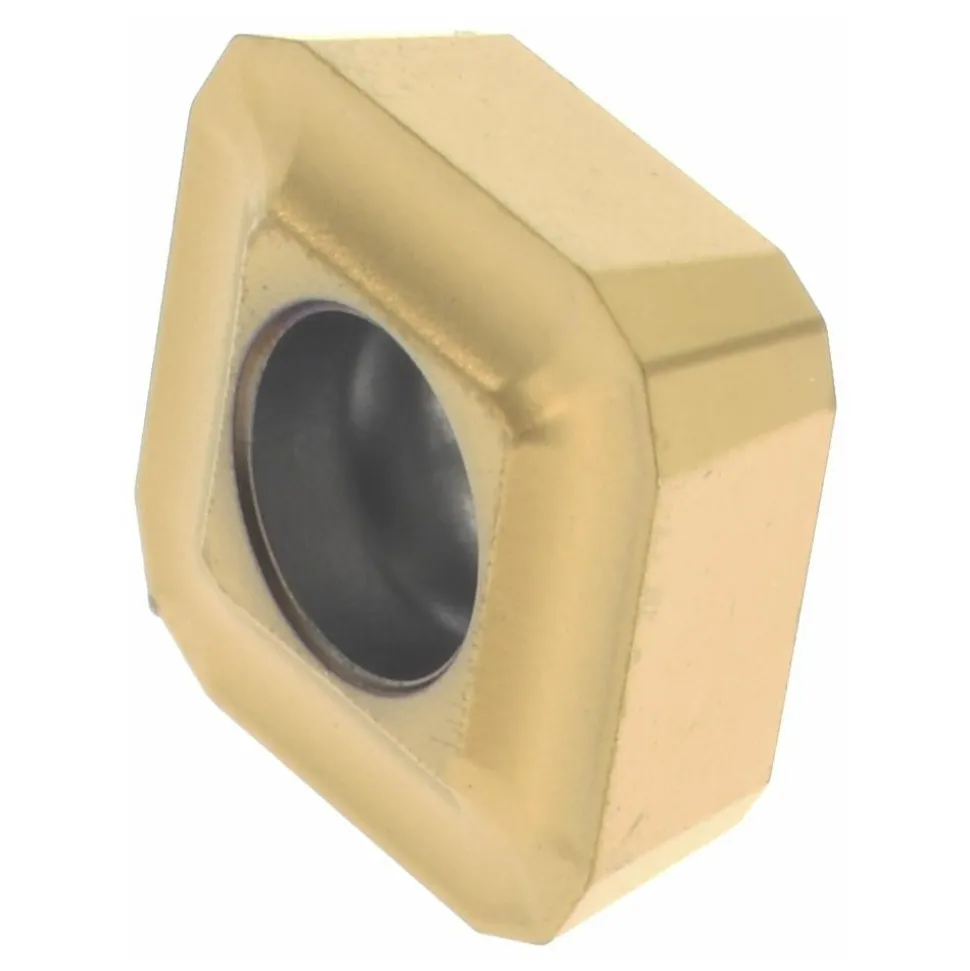

Indexable Drill Insert: SPGX0703-C1 T400D, Carbide

21,99 $

Specifications

Insert Style: SPGX	Insert Material: Carbide
Manufacturer Grade: T400D	Inscribed Circle (Decimal Inch): 0.3126
Inscribed Circle (mm): 7.94	Chipbreaker: C1
Series: Perfomax	Material Grade: C1
Coating Process: PVD	Shape: Square
Relief Angle: 11.000	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N	Insert Size: 0703
Width (mm – 2 Decimals): 7.94	Length (Mm): 7.94
Width (Decimal Inch – 4 Decimals): 0.3130	Length (Decimal Inch – 4 Decimals): 0.3130
Included Angle Degree: 90	Thickness (Decimal Inch – 4 Decimals): 0.1250
Coating/Finish: TiN; TiAlN	Insert Size Code: 07
Hole Diameter (Decimal Inch): 0.1140 in	UNSPSC Code: 23242105
Country of Origin: India
Insert Style: SPGX
Insert Material: Carbide
Manufacturer Grade: T400D
Inscribed Circle (Decimal Inch): 0.3126
Inscribed Circle (mm): 7.94
Chipbreaker: C1
Series: Perfomax
Material Grade: C1
Coating Process: PVD
Shape: Square
Relief Angle: 11.000
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Insert Size: 0703
Width (mm – 2 Decimals): 7.94
Length (Mm): 7.94
Width (Decimal Inch – 4 Decimals): 0.3130
Length (Decimal Inch – 4 Decimals): 0.3130
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1250
Coating/Finish: TiN; TiAlN
Insert Size Code: 07
Hole Diameter (Decimal Inch): 0.1140 in
UNSPSC Code: 23242105
Country of Origin: India
