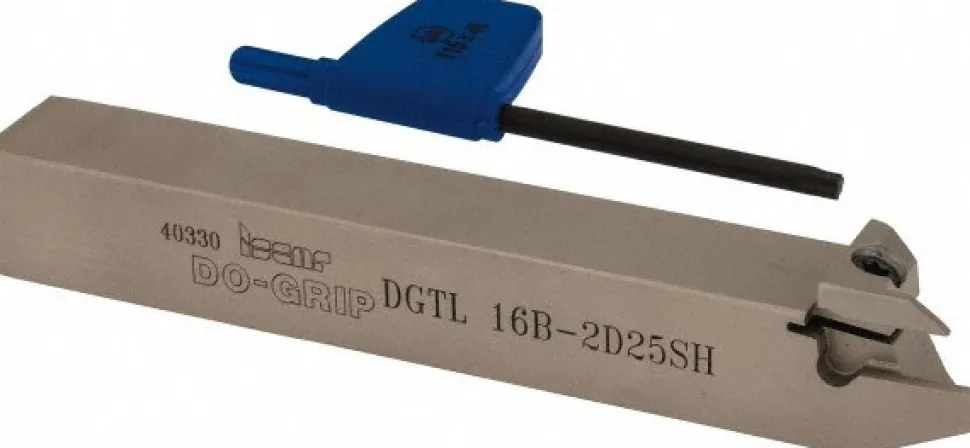

Indexable Grooving-Cutoff Toolholder: DGTL 16B-2D25SH, 1.9 to 2.5 mm Groove Width, 12.7 mm Max Depth of Cut, Left Hand
Original price was: 176,00 $.119,89 $Current price is: 119,89 $.
Specifications
| Internal or External: External | Hand of Holder: Left Hand |
| Maximum Depth of Cut (Decimal Inch): 0.5000 | Maximum Depth of Cut (mm): 12.70 |
| Maximum Groove Width (Decimal Inch): 0.0984 | Maximum Groove Width (mm): 2.50 |
| Minimum Groove Width (Decimal Inch): 0.0748 | Minimum Groove Width (mm): 1.90 |
| Toolholder Style: DGT | Insert Holding Method: Clamp |
| Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT | Insert Compatibility: DG.. |
| Shank Height (mm): 16.00 | Shank Height (Decimal Inch): 0.6299 |
| Shank Length (mm): 100.50 | Shank Width/Diameter (Decimal Inch): 0.6299 |
| Shank Width/Diameter (mm): 16.00 | Series: Do-Grip |
| Overall Length (mm): 120.00 | Overall Length (Decimal Inch): 4.7244 |
| Cutting Tool Application: Grooving; Cut-Off | Full Radius Insert: No |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5984 | Head Height (Decimal Inch): 0.7756 |
| Head Height (mm): 19.70 | Head Length (mm): 19.50 |
| Standards: ISO 13399 | Complete Insert Compatibility: DGN 1900WP; DGL 2202C-6D; DGN 2502C; DGN 2400WP; DGN 2202C; DGN 2002C; DGR 2202C-6D; DGN 2202UA; DGN 2002Z; DGN 2202UT |
| Coolant Through: No | UNSPSC Code: 23153308 |
| Country of Origin: Israel | |
| Internal or External: External | |
| Hand of Holder: Left Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.5000 | |
| Maximum Depth of Cut (mm): 12.70 | |
| Maximum Groove Width (Decimal Inch): 0.0984 | |
| Maximum Groove Width (mm): 2.50 | |
| Minimum Groove Width (Decimal Inch): 0.0748 | |
| Minimum Groove Width (mm): 1.90 | |
| Toolholder Style: DGT | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT | |
| Insert Compatibility: DG.. | |
| Shank Height (mm): 16.00 | |
| Shank Height (Decimal Inch): 0.6299 | |
| Shank Length (mm): 100.50 | |
| Shank Width/Diameter (Decimal Inch): 0.6299 | |
| Shank Width/Diameter (mm): 16.00 | |
| Series: Do-Grip | |
| Overall Length (mm): 120.00 | |
| Overall Length (Decimal Inch): 4.7244 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5984 | |
| Head Height (Decimal Inch): 0.7756 | |
| Head Height (mm): 19.70 | |
| Head Length (mm): 19.50 | |
| Standards: ISO 13399 | |
| Complete Insert Compatibility: DGN 1900WP; DGL 2202C-6D; DGN 2502C; DGN 2400WP; DGN 2202C; DGN 2002C; DGR 2202C-6D; DGN 2202UA; DGN 2002Z; DGN 2202UT | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 05414354 |
| Mfr# | 2301538 |
