Indexable Grooving-Cutoff Toolholder: RF123G079-16B, 3 to 4 mm Groove Width, 20.07 mm Max Depth of Cut, Right Hand
128,99 $
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | Maximum Depth of Cut (mm): 20.07 |
| Maximum Groove Width (mm): 4.00 | Minimum Groove Width (Decimal Inch): 0.1181 |
| Minimum Groove Width (mm): 3.00 | Toolholder Style: RF123..B |
| Insert Holding Method: Clamp | Compatible Insert Size Code: N123G2 |
| Insert Compatibility: N123G2-0300-CM | Shank Height (mm): 25.40 |
| Shank Height (Inch): 1 | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (mm): 111.40 | Shank Length (Decimal Inch): 4.3860 |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (mm): 25.40 |
| Shank Width/Diameter (Inch): 1 | Series: CoroCut 1-2 |

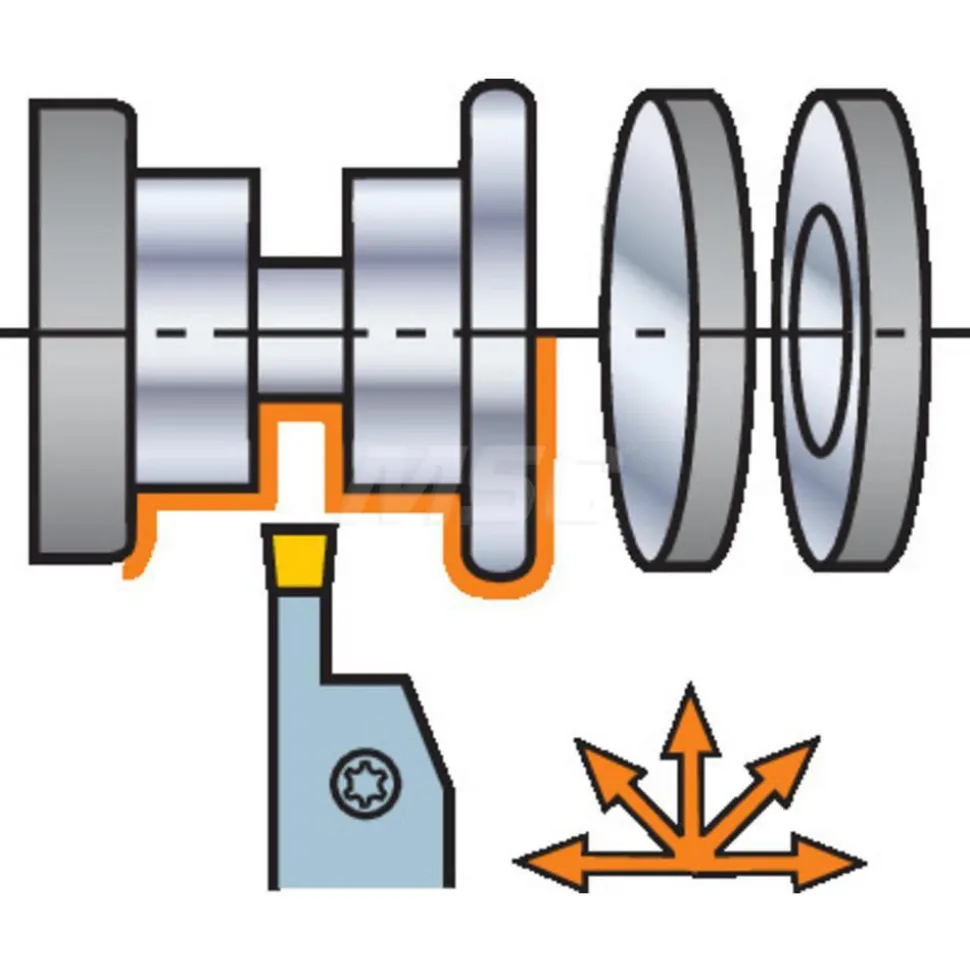

| Overall Length (mm): 152.40 | Cutting Tool Application: Grooving; Cut-Off; Parting |
| Maximum Overhang (Inch): 1.6140 | Back of Bar to Cutting Edge (Decimal Inch): 6.0000 |
| Head Height (Decimal Inch): 1.0000 | Head Height (mm): 25.40 |
| Head Length (Decimal Inch): 1.0000 | Head Length (mm): 25.40 |
| Manufacturers Catalog Number: RF123G079-16B | Coolant Through: No |
| UNSPSC Code: 27112809 | Country of Origin: VARIOUS |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | |
| Maximum Depth of Cut (mm): 20.07 | |
| Maximum Groove Width (mm): 4.00 | |
| Minimum Groove Width (Decimal Inch): 0.1181 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: RF123..B | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: N123G2 | |
| Insert Compatibility: N123G2-0300-CM | |
| Shank Height (mm): 25.40 | |
| Shank Height (Inch): 1 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (mm): 111.40 | |
| Shank Length (Decimal Inch): 4.3860 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Shank Width/Diameter (Inch): 1 | |
| Series: CoroCut 1-2 | |
| Overall Length (mm): 152.40 | |
| Cutting Tool Application: Grooving; Cut-Off; Parting | |
| Maximum Overhang (Inch): 1.6140 | |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | |
| Head Height (Decimal Inch): 1.0000 | |
| Head Height (mm): 25.40 | |
| Head Length (Decimal Inch): 1.0000 | |
| Head Length (mm): 25.40 | |
| Manufacturers Catalog Number: RF123G079-16B | |
| Coolant Through: No | |
| UNSPSC Code: 27112809 | |
| Country of Origin: VARIOUS |
| MSC# | 45321924 |
| Mfr# | 5741122 |
