Indexable Grooving-Cutoff Toolholder: RF151.23-16-30, 3 to 4.15 mm Groove Width, 19.99 mm Max Depth of Cut, Right Hand
134,99 $

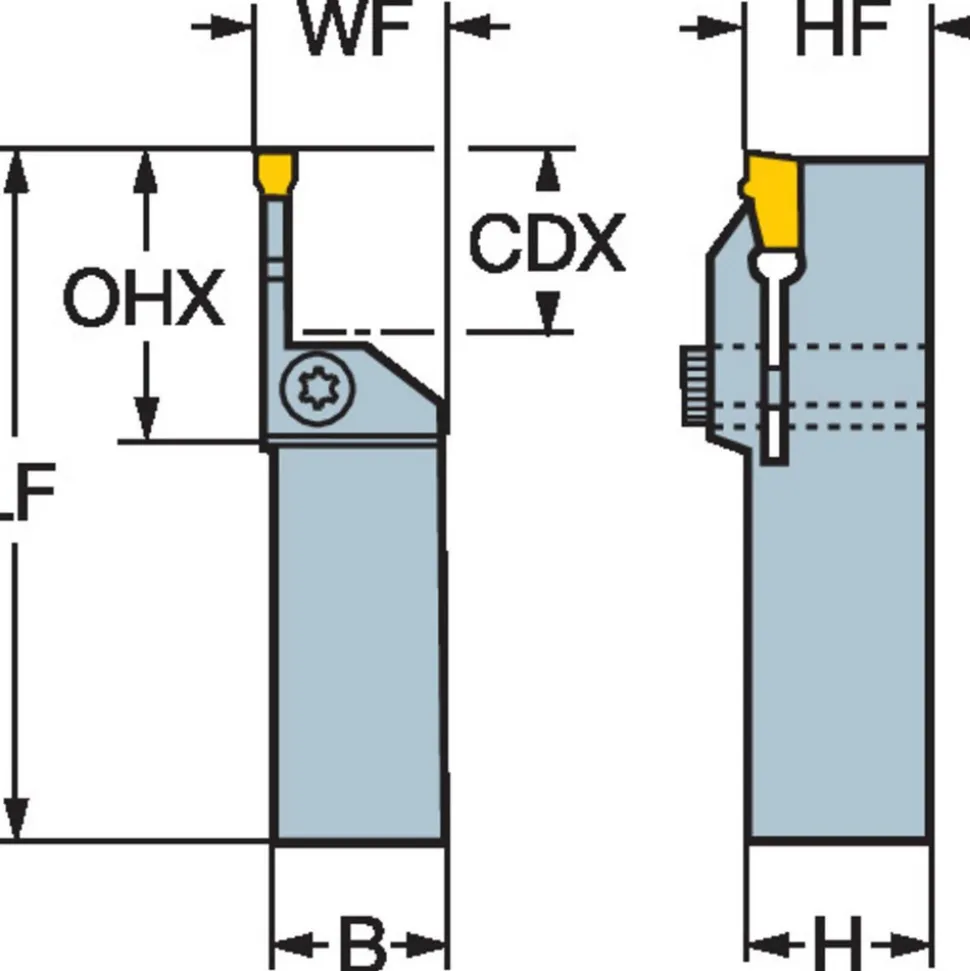

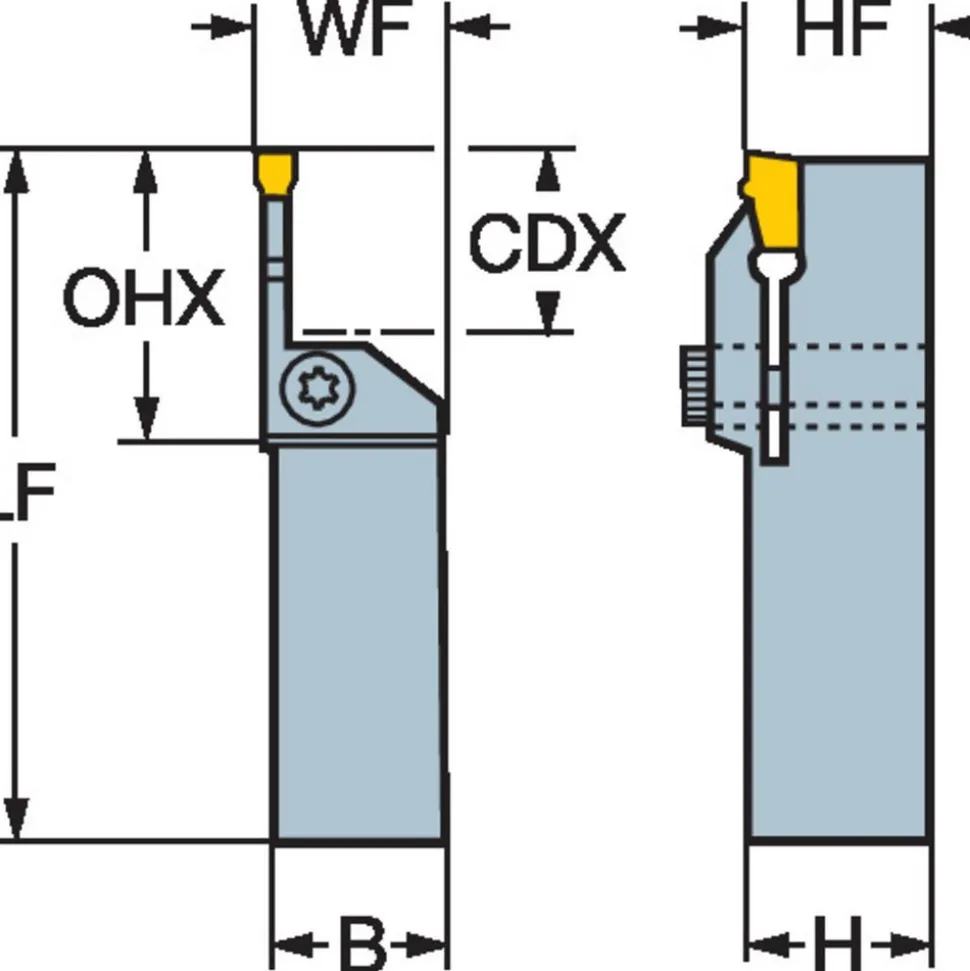

Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.7870 | Maximum Depth of Cut (mm): 19.99 |
| Maximum Groove Width (mm): 4.15 | Minimum Groove Width (Decimal Inch): 0.1181 |
| Minimum Groove Width (mm): 3.00 | Toolholder Style: RF151.23 |

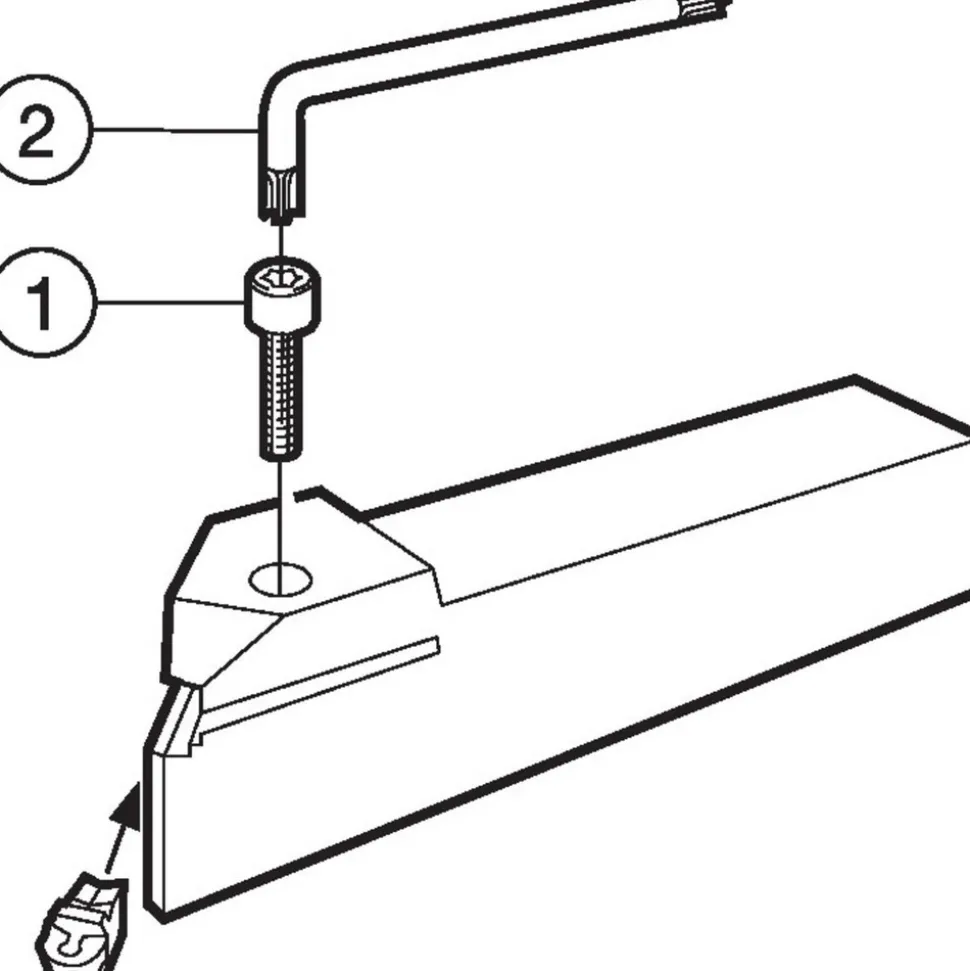

| Insert Holding Method: Clamp | Insert Compatibility: N151.2-300-5E |
| Shank Height (mm): 25.40 | Shank Height (Inch): 1 |
| Shank Height (Decimal Inch): 1.0000 | Shank Length (mm): 86.00 |
| Shank Length (Decimal Inch): 3.3860 | Shank Width/Diameter (Decimal Inch): 1.0000 |
| Shank Width/Diameter (mm): 25.40 | Shank Width/Diameter (Inch): 1 |
| Series: T-Max Q-Cut | Overall Length (mm): 127.00 |
| Back of Bar to Cutting Edge (Decimal Inch): 5.0000 | Head Height (Decimal Inch): 1.0000 |
| Head Height (mm): 25.40 | Head Length (Decimal Inch): 1.0000 |
| Head Length (mm): 25.40 | Manufacturers Catalog Number: RF151.23-16-30 |
| Insert Seat Size: 30.0 | Coolant Through: No |
| UNSPSC Code: 23153308 | Country of Origin: VARIOUS |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.7870 | |
| Maximum Depth of Cut (mm): 19.99 | |
| Maximum Groove Width (mm): 4.15 | |
| Minimum Groove Width (Decimal Inch): 0.1181 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: RF151.23 | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: N151.2-300-5E | |
| Shank Height (mm): 25.40 | |
| Shank Height (Inch): 1 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (mm): 86.00 | |
| Shank Length (Decimal Inch): 3.3860 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Shank Width/Diameter (Inch): 1 | |
| Series: T-Max Q-Cut | |
| Overall Length (mm): 127.00 | |
| Back of Bar to Cutting Edge (Decimal Inch): 5.0000 | |
| Head Height (Decimal Inch): 1.0000 | |
| Head Height (mm): 25.40 | |
| Head Length (Decimal Inch): 1.0000 | |
| Head Length (mm): 25.40 | |
| Manufacturers Catalog Number: RF151.23-16-30 | |
| Insert Seat Size: 30.0 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: VARIOUS |
| MSC# | 43539758 |
| Mfr# | 5740956 |
