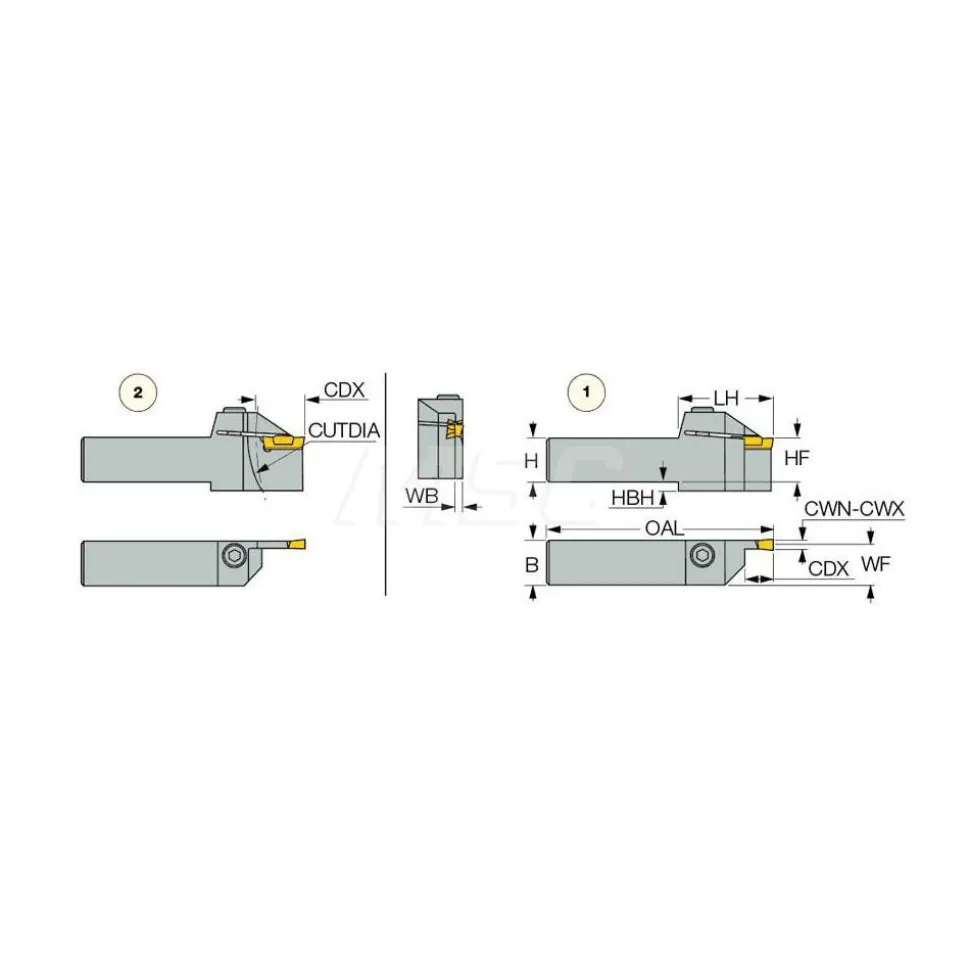

Indexable Grooving Toolholder: HELIR 25.4-4T25, External, Right Hand, 1.97″ Max Workpiece Dia
126,89 $
Specifications
| Toolholder Type: External Grooving | Hand of Holder: Right Hand |
| Minimum Groove Width (Decimal Inch): 0.1570 | Toolholder Style: HELI |
| Maximum Groove Width (Decimal Inch): 0.1870 | Insert Holding Method: Clamp |
| Compatible Insert Size Code: GRIP-4; DG.-4 | Shank Height (Decimal Inch): 1.0000 |
| Series: Heli-Grip | Shank Length (Decimal Inch): 4.3500 |
| Overall Length (Decimal Inch): 6.0000 | Multi-use Tool: No |
| Maximum Workpiece Diameter (Decimal Inch): 1.9700 | Back of Bar to Cutting Edge (Decimal Inch): 0.9400 |
| Head Length (Decimal Inch): 1.6500 | Primary Workpiece Material: Universal |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: P; S; H; K; M; N |
| Coolant Through: No | Country of Origin: Israel |
| Toolholder Type: External Grooving | |
| Hand of Holder: Right Hand | |
| Minimum Groove Width (Decimal Inch): 0.1570 | |
| Toolholder Style: HELI | |
| Maximum Groove Width (Decimal Inch): 0.1870 | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: GRIP-4; DG.-4 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Heli-Grip | |
| Shank Length (Decimal Inch): 4.3500 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: No | |
| Maximum Workpiece Diameter (Decimal Inch): 1.9700 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.9400 | |
| Head Length (Decimal Inch): 1.6500 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 52720117 |
| Mfr# | 2500452 |
