Indexable Grooving Toolholder: MG 12.7-11C25, Internal, Right Hand
126,89 $

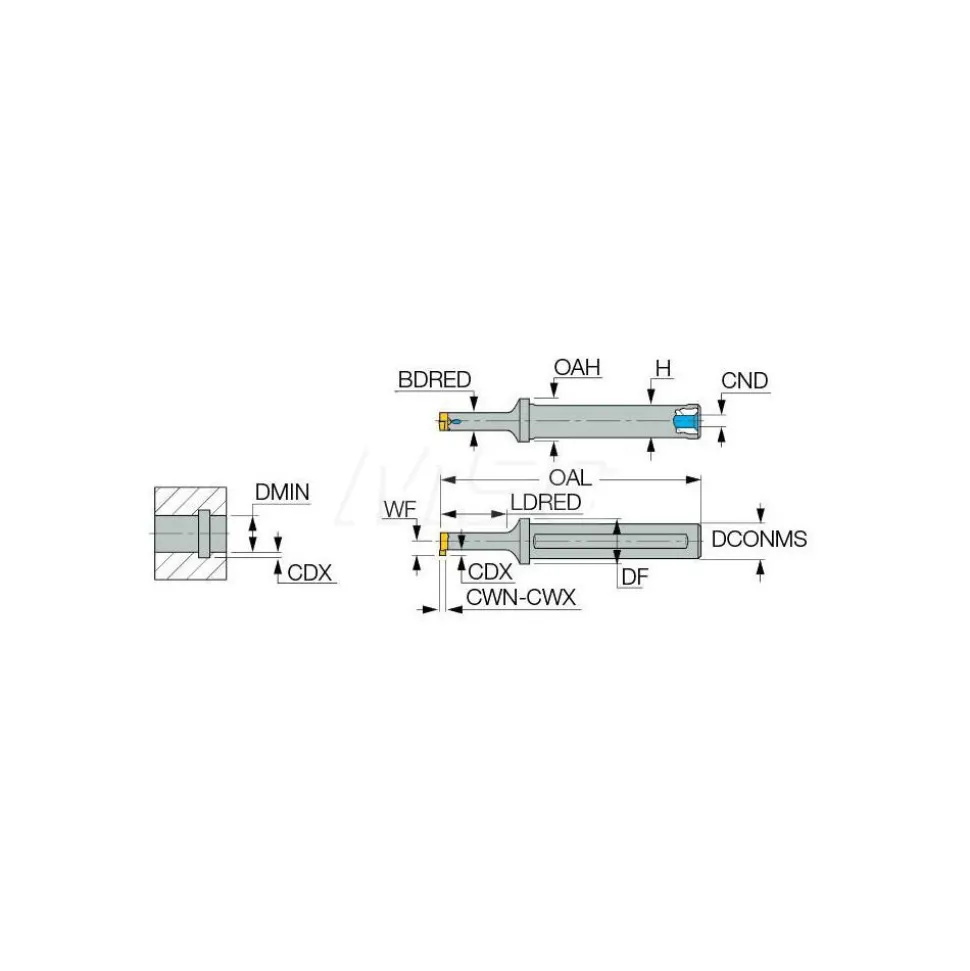

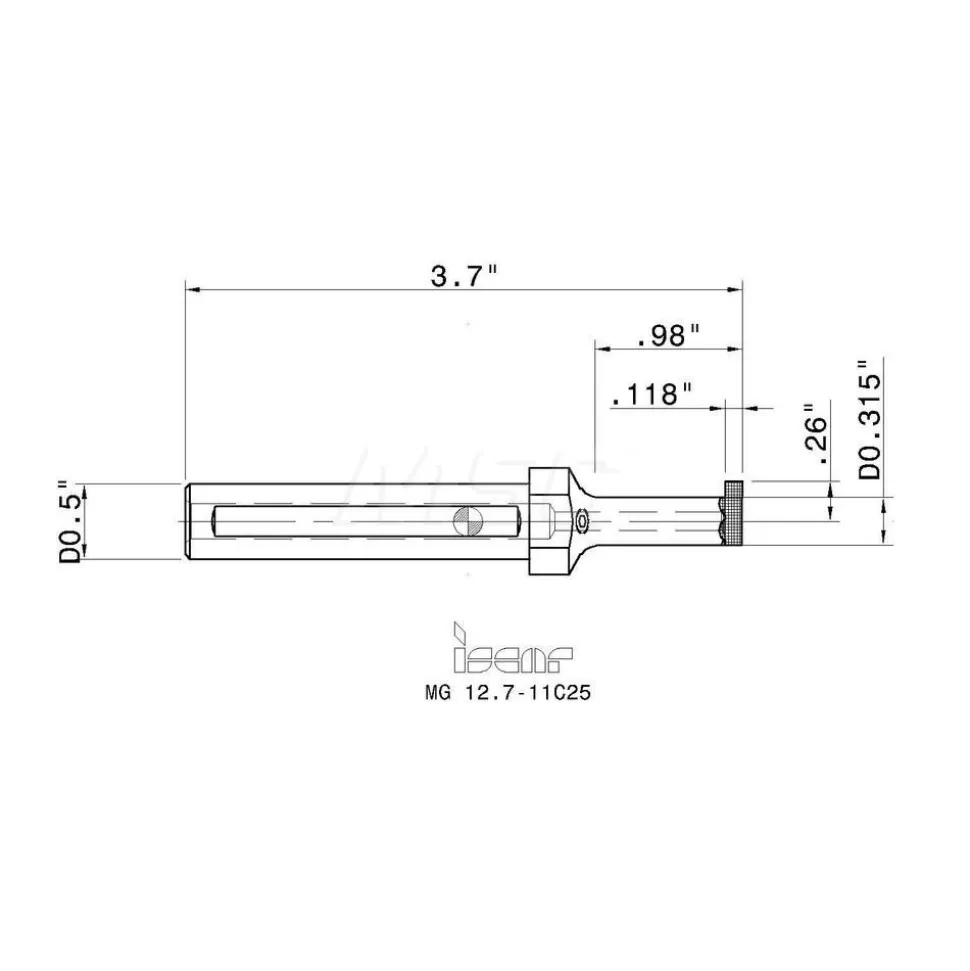

Specifications
| Toolholder Type: Internal Grooving | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.0900 | Minimum Groove Width (Decimal Inch): 0.0200 |
| Toolholder Style: MG | Maximum Groove Width (Decimal Inch): 0.1180 |
| Insert Holding Method: Screw | Insert Compatibility: GIQR/L 11 |
| Compatible Insert Size Code: GIQR/L 11; GIQR/L 11-R; GIQR/L-A18; GIQR/L 8; GIQR/L-B18; GIQR/L-MT; GIQR/L 11-15; GIQR/L-WT; GIQR/L 11-15-R; GIQR/L 8-R | Shank Height (Decimal Inch): 0.4300 |
| Series: ChamGroove | Shank Length (Decimal Inch): 2.6400 |
| Overall Length (Decimal Inch): 3.6200 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.2600 | Minimum Hole Diameter (Decimal Inch): 0.4330 |
| Head Height (Decimal Inch): 0.6410 | Head Length (Decimal Inch): 0.9800 |
| Primary Workpiece Material: Universal | UNSPSC Code: 23153308 |
| Primary Workpiece Material Code: P; S; H; K; M; N | Manufacturers Catalog Number: MG 12.7-11C25 |
| Coolant Through: Yes | Country of Origin: Israel |
| Toolholder Type: Internal Grooving | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.0900 | |
| Minimum Groove Width (Decimal Inch): 0.0200 | |
| Toolholder Style: MG | |
| Maximum Groove Width (Decimal Inch): 0.1180 | |
| Insert Holding Method: Screw | |
| Insert Compatibility: GIQR/L 11 | |
| Compatible Insert Size Code: GIQR/L 11; GIQR/L 11-R; GIQR/L-A18; GIQR/L 8; GIQR/L-B18; GIQR/L-MT; GIQR/L 11-15; GIQR/L-WT; GIQR/L 11-15-R; GIQR/L 8-R | |
| Shank Height (Decimal Inch): 0.4300 | |
| Series: ChamGroove | |
| Shank Length (Decimal Inch): 2.6400 | |
| Overall Length (Decimal Inch): 3.6200 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.2600 | |
| Minimum Hole Diameter (Decimal Inch): 0.4330 | |
| Head Height (Decimal Inch): 0.6410 | |
| Head Length (Decimal Inch): 0.9800 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Manufacturers Catalog Number: MG 12.7-11C25 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 82834813 |
| Mfr# | 2800927 |
| Big Book# | 890 |
