Sale!

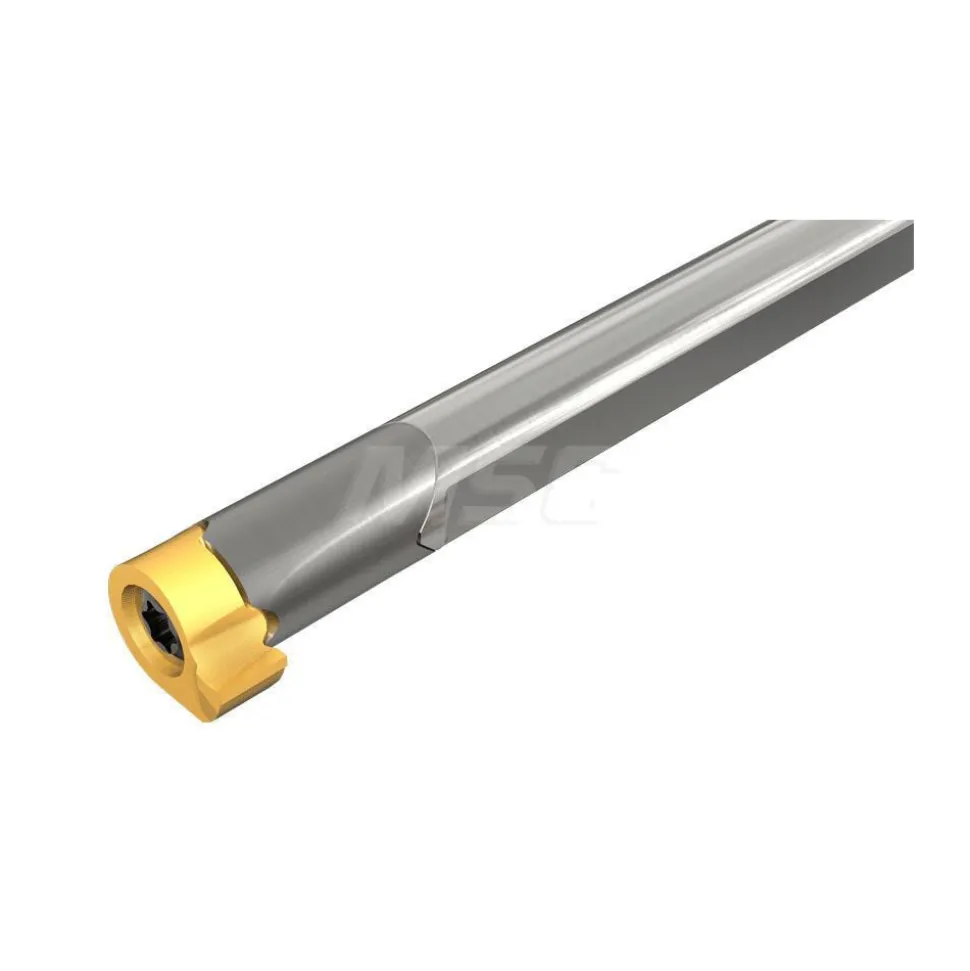

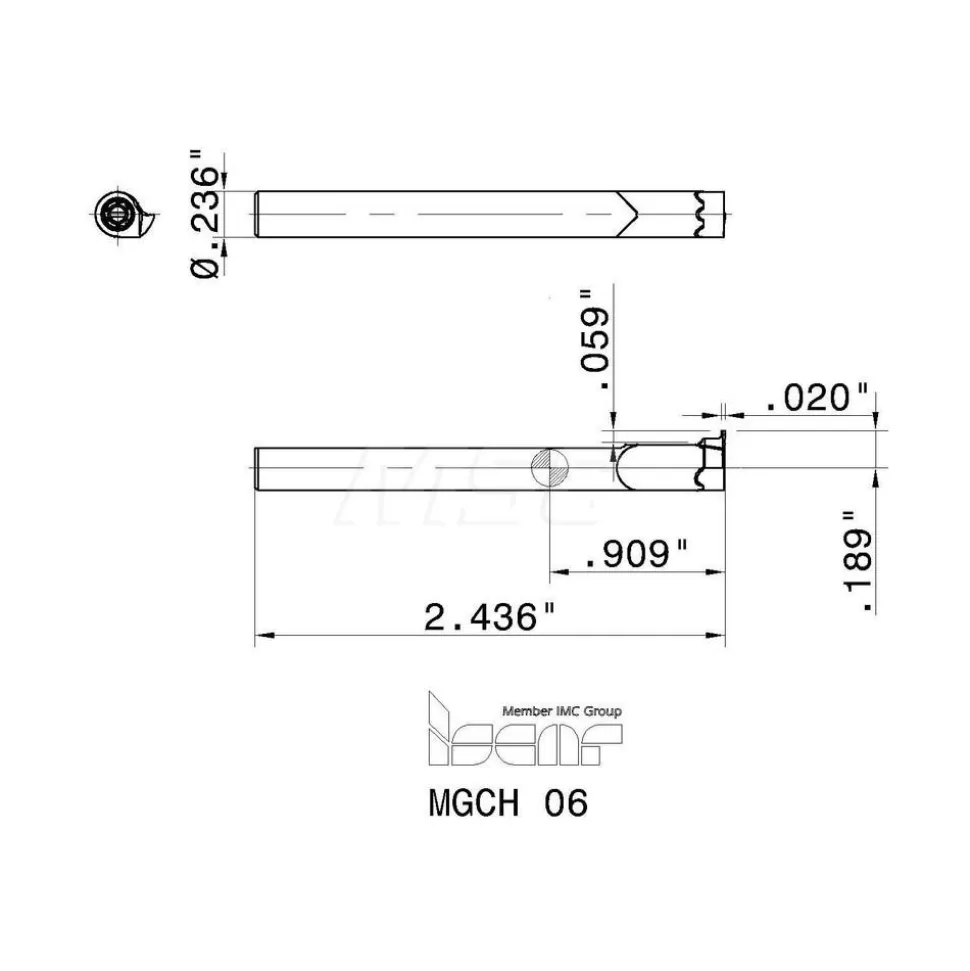

Indexable Grooving Toolholder: MGCH 06, Internal, Right Hand
Original price was: 212,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Toolholder Type: Internal Grooving | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.0590 | Maximum Depth of Cut (mm): 1.50 |
| Minimum Groove Width (Decimal Inch): 0.0197 | Minimum Groove Width (mm): 0.50 |
| Maximum Groove Width (mm): 4.00 | Toolholder Style: MGCH |
| Maximum Groove Width (Decimal Inch): 0.1575 | Insert Holding Method: Screw |
| Compatible Insert Size Code: GIQR/L 8 | Series: ChamGroove |
| Overall Length (mm): 62.00 | Overall Length (Decimal Inch): 2.4409 |
| Multi-use Tool: No | Center to Cutting Edge (Decimal Inch): 0.1890 |
| Center to Cutting Edge (mm): 4.80 | Minimum Hole Diameter (mm): 8.00 |
| Minimum Hole Diameter (Decimal Inch): 0.3150 | Primary Workpiece Material: Universal |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: P; S; H; K; M; N |
| Manufacturers Catalog Number: MGCH 06 | Toolholder Material: Solid Carbide |
| Coolant Through: No | Country of Origin: Israel |
| Toolholder Type: Internal Grooving | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.0590 | |
| Maximum Depth of Cut (mm): 1.50 | |
| Minimum Groove Width (Decimal Inch): 0.0197 | |
| Minimum Groove Width (mm): 0.50 | |
| Maximum Groove Width (mm): 4.00 | |
| Toolholder Style: MGCH | |
| Maximum Groove Width (Decimal Inch): 0.1575 | |
| Insert Holding Method: Screw | |
| Compatible Insert Size Code: GIQR/L 8 | |
| Series: ChamGroove | |
| Overall Length (mm): 62.00 | |
| Overall Length (Decimal Inch): 2.4409 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.1890 | |
| Center to Cutting Edge (mm): 4.80 | |
| Minimum Hole Diameter (mm): 8.00 | |
| Minimum Hole Diameter (Decimal Inch): 0.3150 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Manufacturers Catalog Number: MGCH 06 | |
| Toolholder Material: Solid Carbide | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 82301219 |
| Mfr# | 2800929 |
