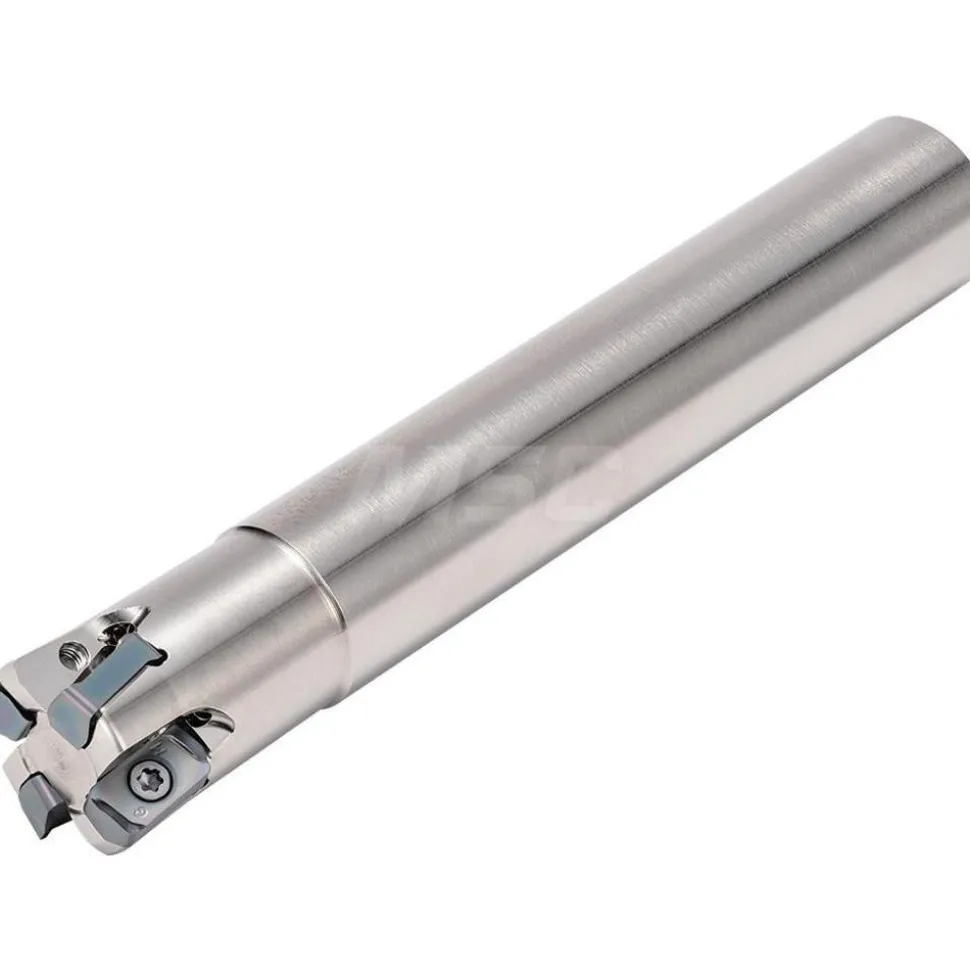

Indexable High-Feed End Mill: MFH1000W100035T47, 1″ Cut Dia, 1″ Shank Dia, Weldon Flat Shank
Original price was: 550,00 $.140,99 $Current price is: 140,99 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.6850 | Maximum Cutting Diameter (Decimal Inch): 1.0000 |
| Maximum Cutting Diameter (mm): 25.40 | Maximum Cutting Diameter (Inch): 1 |
| Maximum Depth of Cut (mm): 0.99 | Maximum Depth of Cut (Decimal Inch): 0.0390 |
| Toolholder Style: MFH | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Maximum Ramping Angle: 2.80 | Compatible Insert Style: LOGU 030310ER-GM |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 5 |
| Overall Length (Decimal Inch): 4.8200 | Maximum RPM: 13400 |
| Head Length (Decimal Inch): 2.5000 | Functional Length (Decimal Inch): 4.8200 |

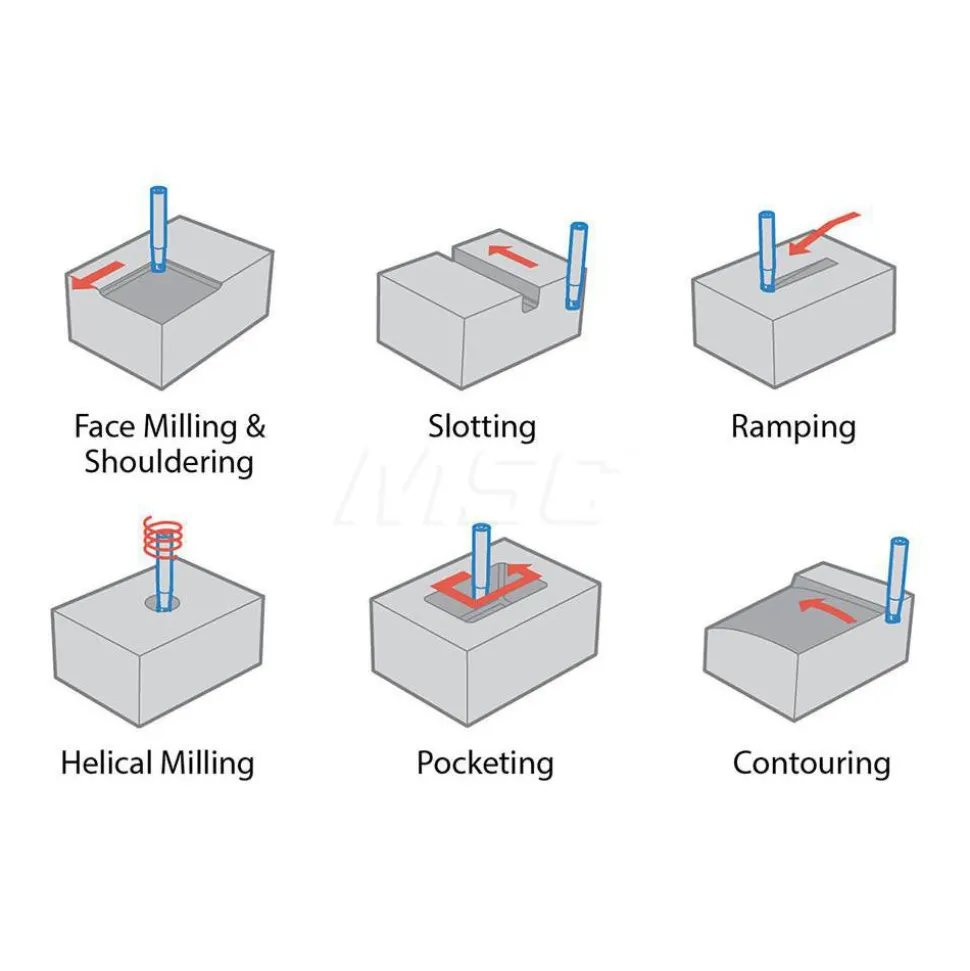

| Tool Application: Facing; Plunging; Ramping; Shouldering; Slotting | Weldon Flat: Yes |
| Manufacturers Catalog Number: MFH 1000-W100-03-5T47 | Number Of Flutes: 5 |
| Coolant Through: Yes | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Minimum Cutting Diameter (Decimal Inch): 0.6850 | |
| Maximum Cutting Diameter (Decimal Inch): 1.0000 | |
| Maximum Cutting Diameter (mm): 25.40 | |
| Maximum Cutting Diameter (Inch): 1 | |
| Maximum Depth of Cut (mm): 0.99 | |
| Maximum Depth of Cut (Decimal Inch): 0.0390 | |
| Toolholder Style: MFH | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Maximum Ramping Angle: 2.80 | |
| Compatible Insert Style: LOGU 030310ER-GM | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 5 | |
| Overall Length (Decimal Inch): 4.8200 | |
| Maximum RPM: 13400 | |
| Head Length (Decimal Inch): 2.5000 | |
| Functional Length (Decimal Inch): 4.8200 | |
| Tool Application: Facing; Plunging; Ramping; Shouldering; Slotting | |
| Weldon Flat: Yes | |
| Manufacturers Catalog Number: MFH 1000-W100-03-5T47 | |
| Number Of Flutes: 5 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 50390673 |
| Mfr# | THN07726 |
