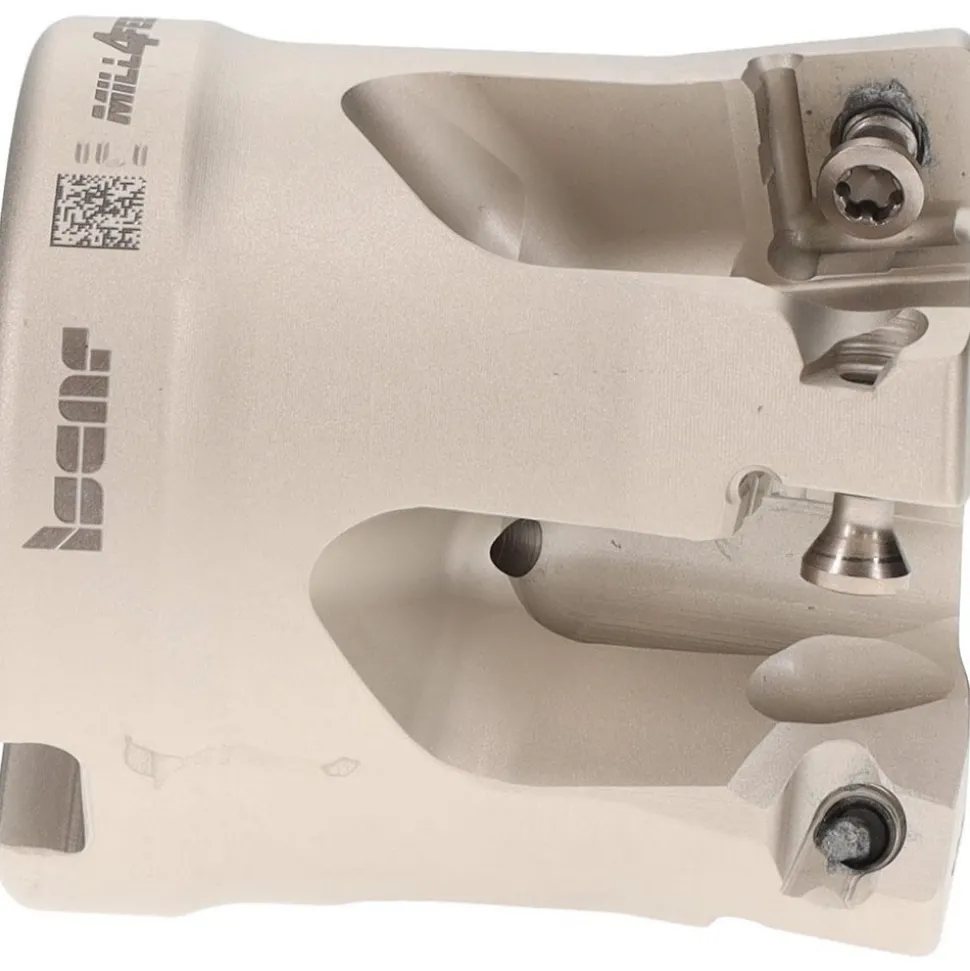

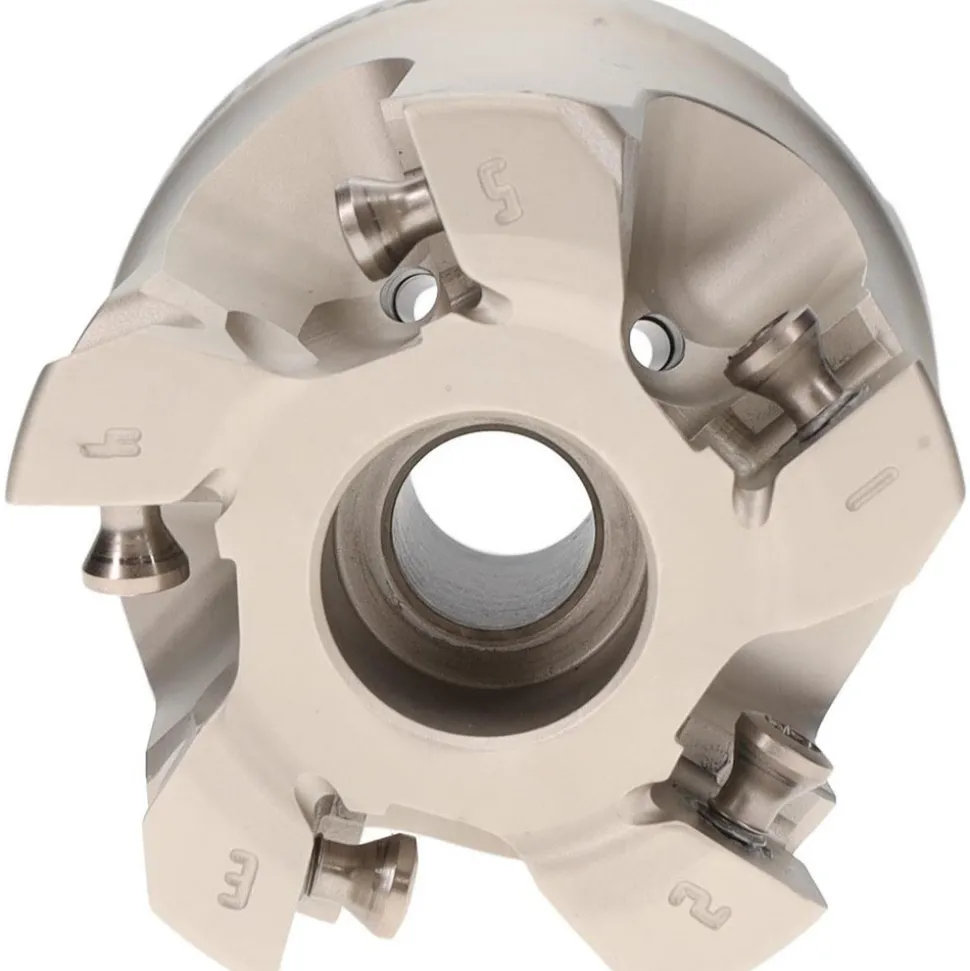

Indexable High-Feed Face Mill: 1.136 to 2″ Cut Dia, 0.75″ Arbor Hole
138,99 $
Specifications
| Cutting Diameter (mm): 28.80 | Cutting Diameter (Decimal Inch): 1.1360 |
| Minimum Cutting Diameter (Decimal Inch): 1.1360 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.0590 | Maximum Depth of Cut (mm): 1.50 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Arbor Hole Diameter (mm): 19.05 |
| Compatible Insert Size Code: SOMW; SOMT | Maximum Ramping Angle: 2.60 |
| Cutter Style: FFQ4 | Insert Compatibility: FFQ4 |
| Insert Holding Method: Screw | Series: FFQ4 |
| Maximum Body Diameter (mm): 47.00 | Maximum Body Diameter (Decimal Inch): 1.8500 |
| Overall Height (mm): 50.80 | Overall Height (Decimal Inch): 2.0000 |
| Standards: ISO | Number Of Cutter Inserts: 5 |
| Number Of Flutes: 5 | Coolant Through: Yes |
| UNSPSC Code: 27112803 | Country of Origin: Israel |
| Cutting Diameter (mm): 28.80 | |
| Cutting Diameter (Decimal Inch): 1.1360 | |
| Minimum Cutting Diameter (Decimal Inch): 1.1360 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.0590 | |
| Maximum Depth of Cut (mm): 1.50 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Arbor Hole Diameter (mm): 19.05 | |
| Compatible Insert Size Code: SOMW; SOMT | |
| Maximum Ramping Angle: 2.60 | |
| Cutter Style: FFQ4 | |
| Insert Compatibility: FFQ4 | |
| Insert Holding Method: Screw | |
| Series: FFQ4 | |
| Maximum Body Diameter (mm): 47.00 | |
| Maximum Body Diameter (Decimal Inch): 1.8500 | |
| Overall Height (mm): 50.80 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Standards: ISO | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 46657102 |
| Mfr# | 3107341 |
