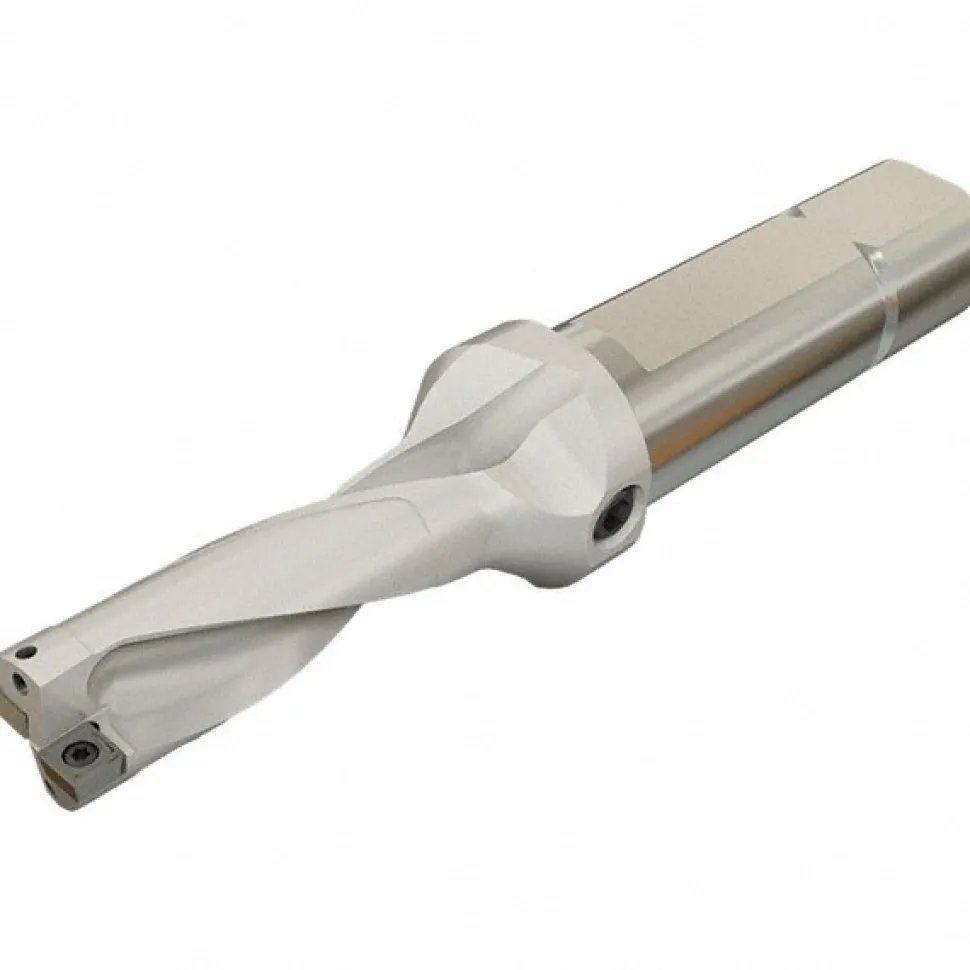

Indexable Insert Drill: DR08122438100063DN, 13/16″ Max Dia, 3xD, 1″ Shank Dia
122,89 $
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 13/16 |
| Maximum Drill Diameter (Decimal Inch): 0.8500 | Maximum Drill Depth (Decimal Inch): 2.4400 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 |
| Tool Material: Steel | Compatible Insert Style: SOMX |
| Compatible Insert Size Code: 060304 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | Overall Length (Decimal Inch): 6.3000 |
| Series: DR-3D-N | Flute Length (Decimal Inch): 2.4400 |
| Body Length (Decimal Inch): 3.3000 | Shank Length (Decimal Inch): 3.0000 |
| Neck Diameter (Inch): 1.2600 | Modular Connection Size: 1 in |
| Coolant Hole Thread Size: “1/16-27 NPT” | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2441 |
| UNSPSC Code: 23291503 | Insert Compatibility: SOMX060304 |
| Collar Diameter (Decimal Inch): 1.2600 | Body Side Coolant Hole Thread Size (Inch): 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch): 3/8-18 | Insert Lock Screw: SR 34-508/L |
| Coolant Through: Yes | Country of Origin: Israel |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 13/16 | |
| Maximum Drill Diameter (Decimal Inch): 0.8500 | |
| Maximum Drill Depth (Decimal Inch): 2.4400 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMX | |
| Compatible Insert Size Code: 060304 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | |
| Overall Length (Decimal Inch): 6.3000 | |
| Series: DR-3D-N | |
| Flute Length (Decimal Inch): 2.4400 | |
| Body Length (Decimal Inch): 3.3000 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.2600 | |
| Modular Connection Size: 1 in | |
| Coolant Hole Thread Size: “1/16-27 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2441 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMX060304 | |
| Collar Diameter (Decimal Inch): 1.2600 | |
| Body Side Coolant Hole Thread Size (Inch): 1/16-27 | |
| Shank End Coolant Hole Thread Size (Inch): 3/8-18 | |
| Insert Lock Screw: SR 34-508/L | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 45392727 |
| Mfr# | 3201397 |
