Sale!

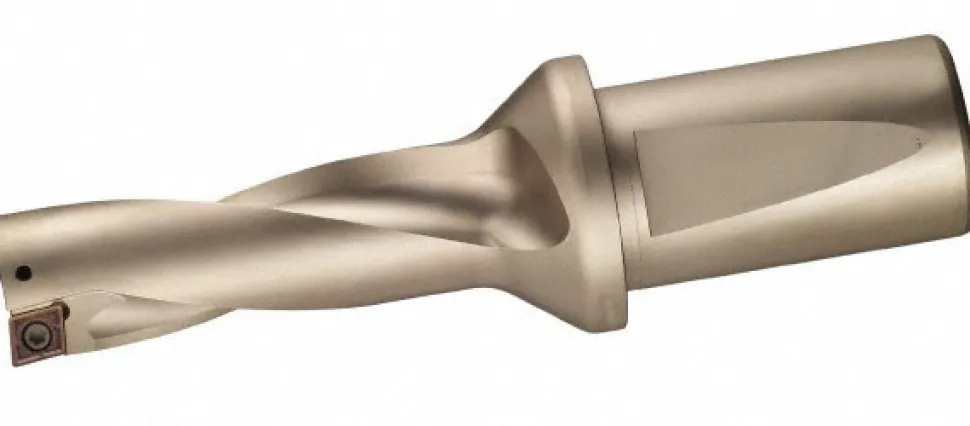

Indexable Insert Drill: WDX0875D3S100, 7/8″ Max Dia, 3xD, 1″ Shank Dia
Original price was: 677,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Compatible Drill Style: WDX | Maximum Drill Diameter (Inch): 7/8 |
| Maximum Drill Diameter (Decimal Inch): 0.8750 | Maximum Drill Depth (Decimal Inch): 2.7430 |
| Shank Type: Straight-Cylindrical | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 |
| Tool Material: Steel | Compatible Insert Style: WDXT |
| Drill Depth by Diameter Ratio: 3xD | Series: WDX |
| Flute Length (Decimal Inch): 2.7430 | Body Length (Decimal Inch): 3.3340 |
| Shank Length (Decimal Inch): 2.5000 | Neck Diameter (Inch): 1.2990 |
| Coolant Hole Thread Size: “1/4-18 NPT” | Tool Application: Drilling |
| Tool Performance: General Purpose | UNSPSC Code: 23291503 |
| Insert Compatibility: WDXT 063006 | Collar Diameter (Decimal Inch): 1.2990 |
| Coolant Through: Yes | Country of Origin: Japan |
| Compatible Drill Style: WDX | |
| Maximum Drill Diameter (Inch): 7/8 | |
| Maximum Drill Diameter (Decimal Inch): 0.8750 | |
| Maximum Drill Depth (Decimal Inch): 2.7430 | |
| Shank Type: Straight-Cylindrical | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: WDXT | |
| Drill Depth by Diameter Ratio: 3xD | |
| Series: WDX | |
| Flute Length (Decimal Inch): 2.7430 | |
| Body Length (Decimal Inch): 3.3340 | |
| Shank Length (Decimal Inch): 2.5000 | |
| Neck Diameter (Inch): 1.2990 | |
| Coolant Hole Thread Size: “1/4-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: WDXT 063006 | |
| Collar Diameter (Decimal Inch): 1.2990 | |
| Coolant Through: Yes | |
| Country of Origin: Japan |
| MSC# | 77315034 |
| Mfr# | 2A00W2J |
