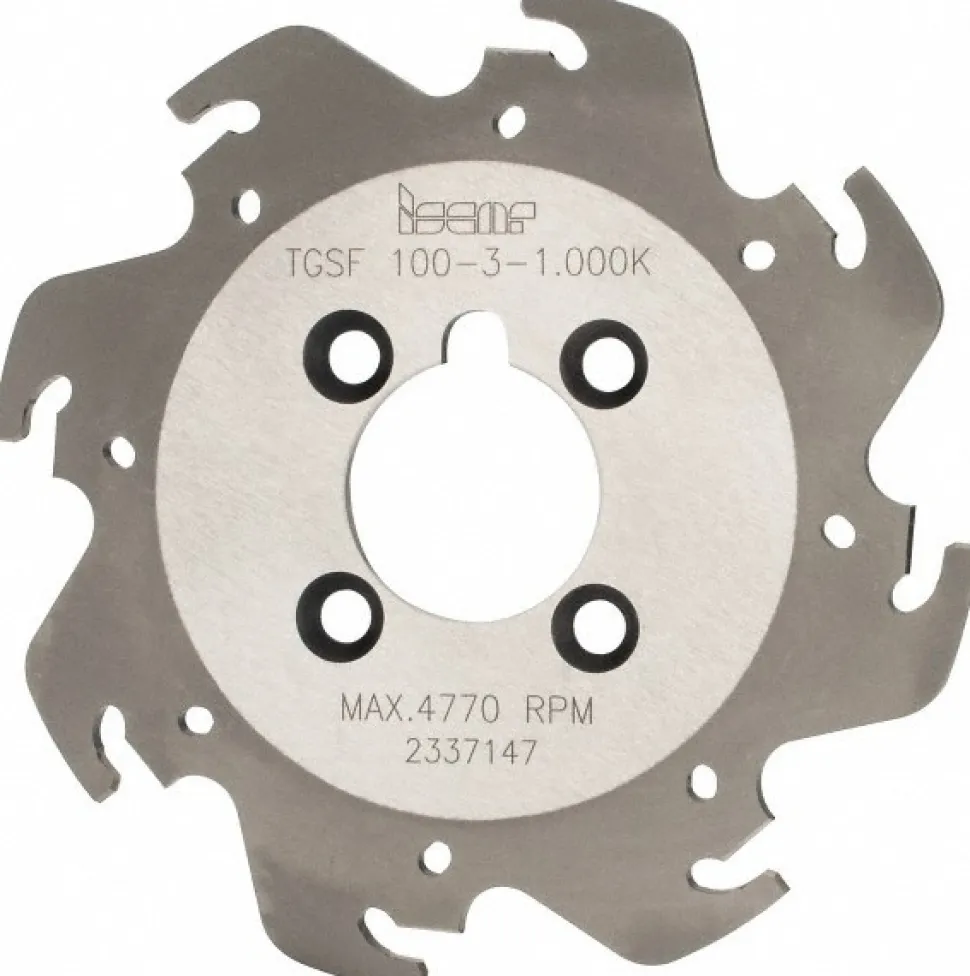

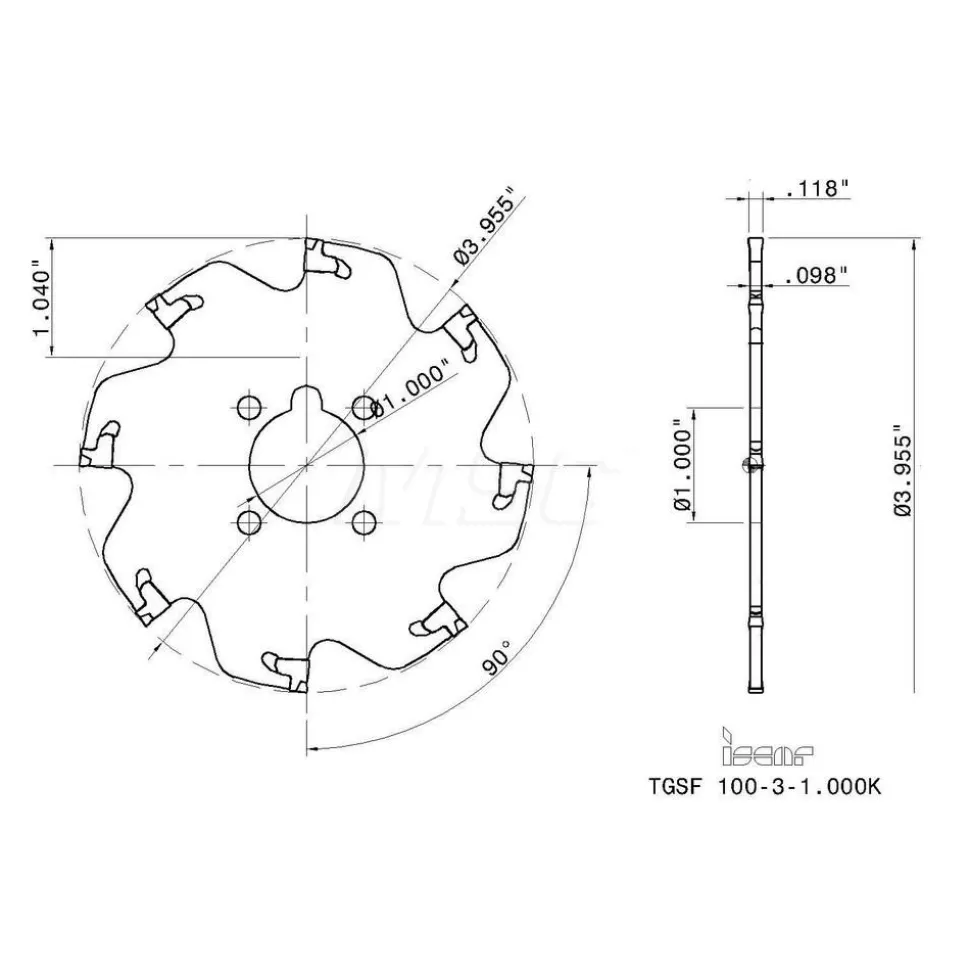

Indexable Slotting Cutter: 0.1180″ Cutting Width, 3.9400″ Cutter Dia, Arbor Connection, 1.0400″ Depth of Cut, 1.0000″ Hole Dia, 1.0000″ Shank Dia, Right Hand
Original price was: 992,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Connection Type: Arbor | Maximum Depth of Cut (Decimal Inch): 1.0400 |
| Hole Diameter (Inch): 1 | Hole Diameter (Decimal Inch): 1.0000 |
| Cutter Diameter (Decimal Inch): 3.9400 | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Cutting Direction: Right Hand |
| Insert Holding Method: Clamp | Number Of Cutter Inserts: 8 |
| Compatible Insert Style: TAG | Compatible Insert Size Code: 3 |
| Tooth Type: Straight | Series: TGSF |
| Toolholder Style: TGSF | Cutting Radius (Fractional Inch): 1/64 |
| Maximum RPM: 4470 | Tool Application: Milling |
| Minimum Cutting Width (Decimal Inch): 0.1200 | Maximum Cutting Width (Decimal Inch): 0.1200 |
| Minimum Cutting Diameter (mm): 100.08 | UNSPSC Code: 23241629 |
| Cutter Body Width (Decimal Inch): 0.1000 | Manufacturers Catalog Number: TGSF 100-3-1.000K |
| Number Of Teeth: 8 | Complete Insert Compatibility: TAG N3C |
| Country of Origin: Israel | |
| Connection Type: Arbor | |
| Maximum Depth of Cut (Decimal Inch): 1.0400 | |
| Hole Diameter (Inch): 1 | |
| Hole Diameter (Decimal Inch): 1.0000 | |
| Cutter Diameter (Decimal Inch): 3.9400 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Clamp | |
| Number Of Cutter Inserts: 8 | |
| Compatible Insert Style: TAG | |
| Compatible Insert Size Code: 3 | |
| Tooth Type: Straight | |
| Series: TGSF | |
| Toolholder Style: TGSF | |
| Cutting Radius (Fractional Inch): 1/64 | |
| Maximum RPM: 4470 | |
| Tool Application: Milling | |
| Minimum Cutting Width (Decimal Inch): 0.1200 | |
| Maximum Cutting Width (Decimal Inch): 0.1200 | |
| Minimum Cutting Diameter (mm): 100.08 | |
| UNSPSC Code: 23241629 | |
| Cutter Body Width (Decimal Inch): 0.1000 | |
| Manufacturers Catalog Number: TGSF 100-3-1.000K | |
| Number Of Teeth: 8 | |
| Complete Insert Compatibility: TAG N3C | |
| Country of Origin: Israel |
| MSC# | 91105825 |
| Mfr# | 2302201 |
| Big Book# | 699 |
