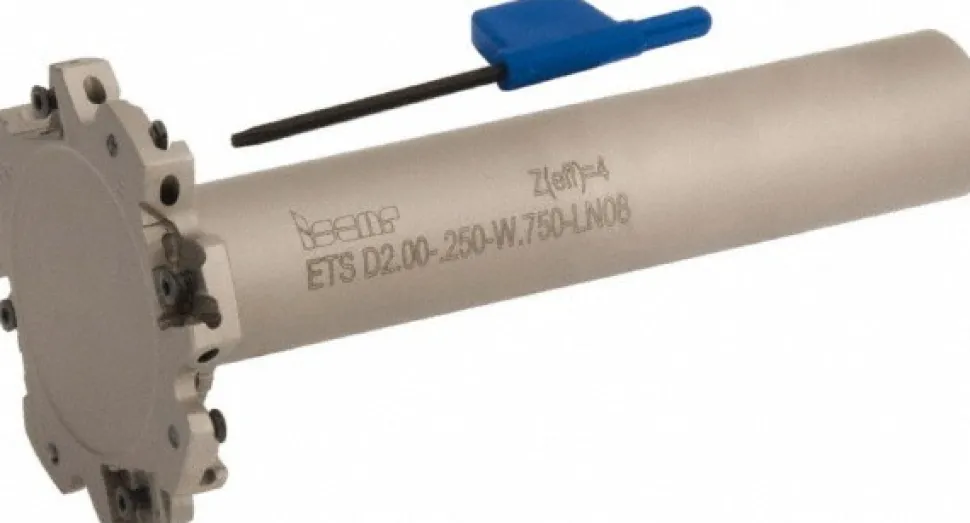

Indexable Slotting Cutter: 1/4″ Cutting Width, 2″ Cutter Dia, Weldon Connection, 0.6250″ Depth of Cut, 3/4″ Shank Dia, 3.9810″ Shank Length, Right Hand
Original price was: 943,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Connection Type: Weldon | Cutting Width (Inch): 1/4 |
| Maximum Depth of Cut (Decimal Inch): 0.6250 | Hole Diameter (Inch): 3/4 |
| Hole Diameter (Decimal Inch): 0.7500 | Cutter Diameter (Decimal Inch): 2.0000 |
| Cutter Diameter (Inch): 2 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Length (Decimal Inch): 3.9810 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Number Of Cutter Inserts: 4 | Compatible Insert Style: LNET |
| Compatible Insert Size Code: 083504 | Series: ETS-LN08 |
| Toolholder Style: ETS-LN08 | Cutting Radius (Fractional Inch): 1/64 |
| Tool Application: Milling | Minimum Cutting Width (Decimal Inch): 0.2500 |
| Minimum Cutting Width (Inch): 1/4 | Maximum Cutting Width (Decimal Inch): 0.2690 |
| Minimum Cutting Diameter (mm): 50.80 | UNSPSC Code: 23241629 |
| Weldon Flat: Yes | Manufacturers Catalog Number: ETS D2.00-.250-W.750-LN08 |
| Overall Height (Decimal Inch): 4.2500 | Insert Inscribed Circle (mm): 6.85 |
| Number Of Teeth: 8 | Complete Insert Compatibility: LNET 083504-TN-N |
| Country of Origin: Israel | |
| Connection Type: Weldon | |
| Cutting Width (Inch): 1/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.6250 | |
| Hole Diameter (Inch): 3/4 | |
| Hole Diameter (Decimal Inch): 0.7500 | |
| Cutter Diameter (Decimal Inch): 2.0000 | |
| Cutter Diameter (Inch): 2 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Length (Decimal Inch): 3.9810 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 4 | |
| Compatible Insert Style: LNET | |
| Compatible Insert Size Code: 083504 | |
| Series: ETS-LN08 | |
| Toolholder Style: ETS-LN08 | |
| Cutting Radius (Fractional Inch): 1/64 | |
| Tool Application: Milling | |
| Minimum Cutting Width (Decimal Inch): 0.2500 | |
| Minimum Cutting Width (Inch): 1/4 | |
| Maximum Cutting Width (Decimal Inch): 0.2690 | |
| Minimum Cutting Diameter (mm): 50.80 | |
| UNSPSC Code: 23241629 | |
| Weldon Flat: Yes | |
| Manufacturers Catalog Number: ETS D2.00-.250-W.750-LN08 | |
| Overall Height (Decimal Inch): 4.2500 | |
| Insert Inscribed Circle (mm): 6.85 | |
| Number Of Teeth: 8 | |
| Complete Insert Compatibility: LNET 083504-TN-N | |
| Country of Origin: Israel |
| MSC# | 45386927 |
| Mfr# | 3181011 |
| Big Book# | 699 |
