Sale!

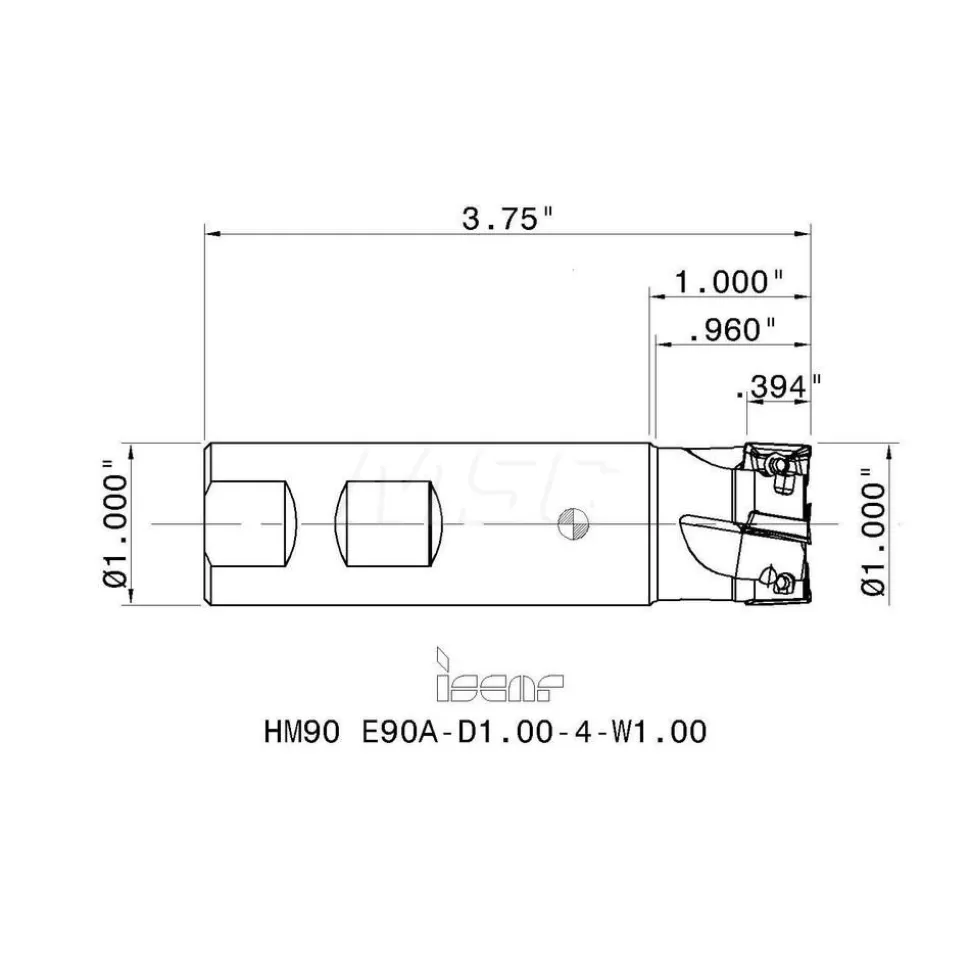

Indexable Square-Shoulder End Mill: HM90 E90A-D1.00-4-W1.0, 1″ Cut Dia, 0.394″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
Original price was: 446,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 3.7500 | Overall Length (Inch): 3-3/4 |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | Cutter Style: HM90 E90A-10 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 2.5 | Tool Material: Solid Carbide |
| Series: Heli2000 | Flute Type: Helical |
| Lead Angle: 90 | Shank Length (Inch): 2-3/4 |
| Shank Length (Decimal Inch): 2.7500 | Head Length (Decimal Inch): 1.0000 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT | Insert Compatibility: AP..1003..; HM90 AP..1003.. |
| UNSPSC Code: 27112803 | Number Of Flutes: 4 |
| Usable Length (Decimal Inch): 0.9600 | Number Of Cutter Inserts: 4 |
| Coolant Through: No | Country of Origin: Germany |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 3.7500 | |
| Overall Length (Inch): 3-3/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 2.5 | |
| Tool Material: Solid Carbide | |
| Series: Heli2000 | |
| Flute Type: Helical | |
| Lead Angle: 90 | |
| Shank Length (Inch): 2-3/4 | |
| Shank Length (Decimal Inch): 2.7500 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 4 | |
| Usable Length (Decimal Inch): 0.9600 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: No | |
| Country of Origin: Germany |
| MSC# | 81212649 |
| Mfr# | 3101934 |
| Big Book# | 691 |
