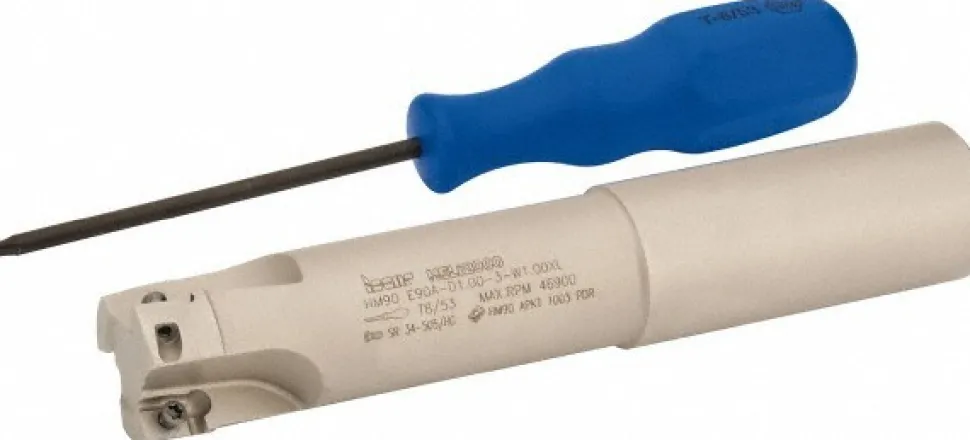

Indexable Square-Shoulder End Mill: HM90E90A-D1.0-3W1.00XL, 1″ Cut Dia, 0.394″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
Original price was: 432,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 5.5100 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Cutter Style: HM90 E90A-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Insert Holding Method: Screw | Maximum Ramping Angle: 2.5 |
| Tool Material: Solid Carbide | Series: Heli2000 |
| Lead Angle: 90 | Shank Length (Decimal Inch): 2.3600 |
| Head Length (Decimal Inch): 3.1500 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 E90A-D1.00-3-W1.00XL | Number Of Flutes: 3 |
| Usable Length (Decimal Inch): 3.1100 | Number Of Cutter Inserts: 3 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 5.5100 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 2.5 | |
| Tool Material: Solid Carbide | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.3600 | |
| Head Length (Decimal Inch): 3.1500 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90A-D1.00-3-W1.00XL | |
| Number Of Flutes: 3 | |
| Usable Length (Decimal Inch): 3.1100 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60841160 |
| Mfr# | 3102144 |
| Big Book# | 691 |
