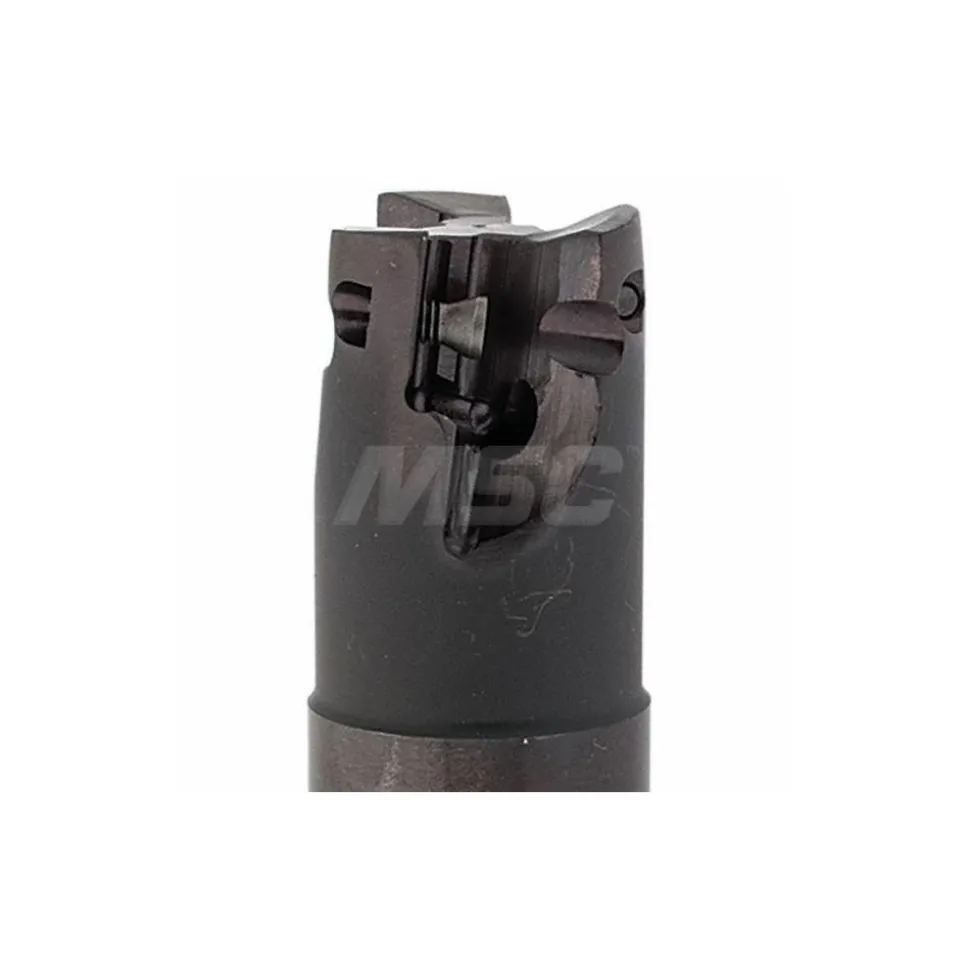

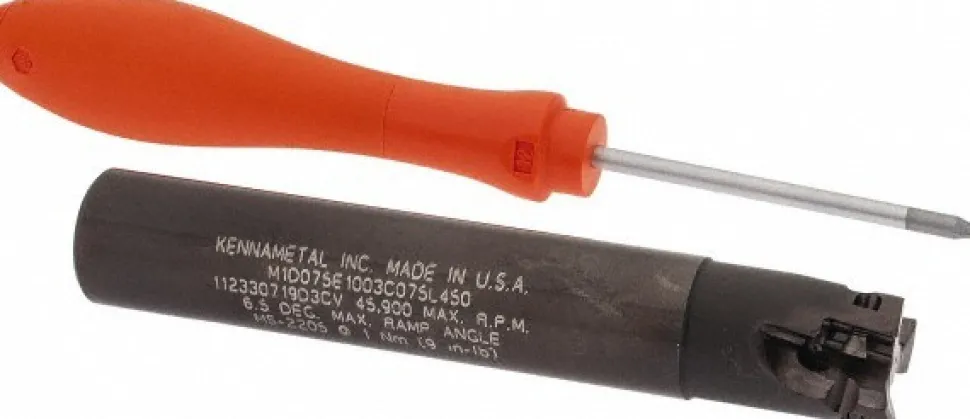

Indexable Square-Shoulder End Mill: M1D075E1003C075L450, 3/4″ Cut Dia, 0.398″ Max Depth of Cut, 3/4″ Dia Cylindrical Shank
128,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Overall Length (Inch): 4-1/2 |
| Maximum Depth of Cut (Decimal Inch): 0.3980 | Cutter Style: Mill 1-10 |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 0.7500 |
| Shank Diameter (Inch): 3/4 | Insert Holding Method: Screw |
| Lead Angle: 0 | Head Length (Decimal Inch): 1.1000 |
| Maximum RPM: 45900 | Coolant Hole Diameter (Decimal Inch): 0.2360 |
| Insert Compatibility: EP10..; EC10.. | ISO Number: M1D075E1003C075L450 |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Number Of Cutter Inserts: 3 | Coolant Through: Yes |
| Country of Origin: Bulgaria | |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Overall Length (Inch): 4-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.3980 | |
| Cutter Style: Mill 1-10 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.1000 | |
| Maximum RPM: 45900 | |
| Coolant Hole Diameter (Decimal Inch): 0.2360 | |
| Insert Compatibility: EP10..; EC10.. | |
| ISO Number: M1D075E1003C075L450 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 63220842 |
| Mfr# | 3742521 |
| Big Book# | 710 |
