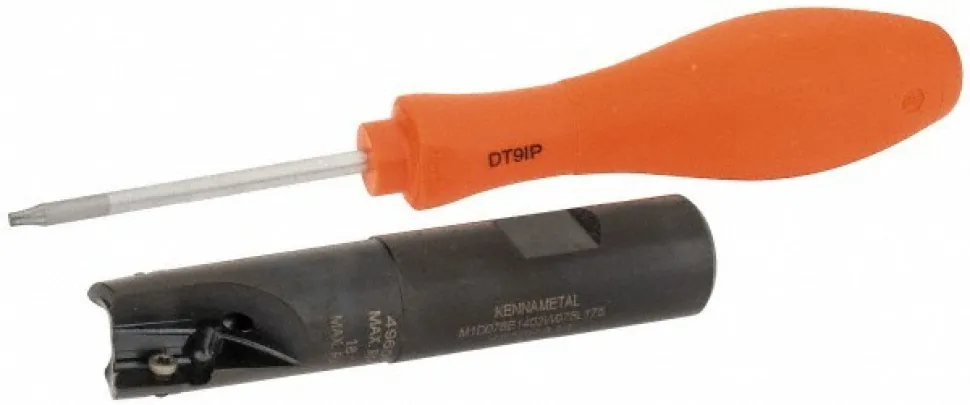

Indexable Square-Shoulder End Mill: M1D075E1402W075L175, 3/4″ Cut Dia, 14.73 mm Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
128,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.7800 | Overall Length (mm): 96.01 |
| Maximum Depth of Cut (mm): 14.73 | Maximum Depth of Cut (Decimal Inch): 0.5800 |
| Cutter Style: Mill 1 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Head Length (Decimal Inch): 1.7500 | Maximum RPM: 49600 |
| Insert Compatibility: EP14..; EC14.. | ISO Number: M1D075E1402W075L175 |
| UNSPSC Code: 27112803 | Number Of Flutes: 2 |
| Number Of Cutter Inserts: 2 | Coolant Through: Yes |
| Country of Origin: Brazil | |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.7800 | |
| Overall Length (mm): 96.01 | |
| Maximum Depth of Cut (mm): 14.73 | |
| Maximum Depth of Cut (Decimal Inch): 0.5800 | |
| Cutter Style: Mill 1 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.7500 | |
| Maximum RPM: 49600 | |
| Insert Compatibility: EP14..; EC14.. | |
| ISO Number: M1D075E1402W075L175 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: Brazil |
| MSC# | 73005381 |
| Mfr# | 2623856 |
| Big Book# | 711 |
