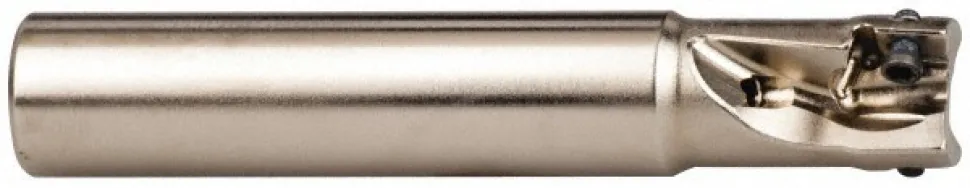

Indexable Square-Shoulder End Mill: R217.69-00.375-0-062AN, 3/8″ Cut Dia, 0.197″ Max Depth of Cut, 3/8″ Dia Cylindrical Shank
Original price was: 478,00 $.124,99 $Current price is: 124,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.3750 in | Cutting Diameter (mm): 9.53 |
| Cutting Diameter: 3/8 | Overall Length (Decimal Inch): 2.1650 |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | Cutter Style: R217.69-06A |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 0.3750 |
| Shank Diameter (Inch): 3/8 | Insert Holding Method: Screw |
| Series: Nano Turbo | Lead Angle: 90 |
| Shank Length (Decimal Inch): 1.4960 | Head Length (Decimal Inch): 0.6690 |
| Maximum RPM: 60000 | Tool Application: Milling |
| Insert Compatibility: XO.X 0602 | ISO Number: R217.69-00.375-0-062AN |
| UNSPSC Code: 27112803 | Number Of Flutes: 2 |
| Number Of Cutter Inserts: 2 | Coolant Through: Yes |
| Country of Origin: India | |
| Cutting Diameter (Decimal Inch): 0.3750 in | |
| Cutting Diameter (mm): 9.53 | |
| Cutting Diameter: 3/8 | |
| Overall Length (Decimal Inch): 2.1650 | |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | |
| Cutter Style: R217.69-06A | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.3750 | |
| Shank Diameter (Inch): 3/8 | |
| Insert Holding Method: Screw | |
| Series: Nano Turbo | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 1.4960 | |
| Head Length (Decimal Inch): 0.6690 | |
| Maximum RPM: 60000 | |
| Tool Application: Milling | |
| Insert Compatibility: XO.X 0602 | |
| ISO Number: R217.69-00.375-0-062AN | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 83251033 |
| Mfr# | 02694880 |
| Big Book# | 667 |
