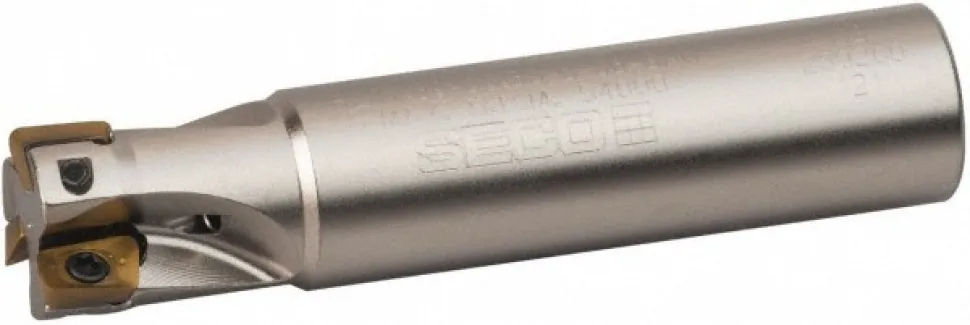

Indexable Square-Shoulder End Mill: R217.69-00.50-0-06-3AN, 1/2″ Cut Dia, 0.197″ Max Depth of Cut, 1/2″ Dia Cylindrical Shank
122,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.5000 in | Cutting Diameter (mm): 12.70 |
| Cutting Diameter: 1/2 | Overall Length (Decimal Inch): 2.3620 |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | Cutter Style: R217.69-06A |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 0.5000 |
| Shank Diameter (Inch): 1/2 | Insert Holding Method: Screw |
| Series: Nano Turbo | Lead Angle: 90 |
| Shank Length (Decimal Inch): 1.6540 | Head Length (Decimal Inch): 0.7080 |
| Maximum RPM: 54000 | Tool Application: Milling |
| Insert Compatibility: XO.X 0602 | ISO Number: R217.69-00.50-0-06-3AN |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Number Of Cutter Inserts: 3 | Coolant Through: Yes |
| Country of Origin: India | |
| Cutting Diameter (Decimal Inch): 0.5000 in | |
| Cutting Diameter (mm): 12.70 | |
| Cutting Diameter: 1/2 | |
| Overall Length (Decimal Inch): 2.3620 | |
| Maximum Depth of Cut (Decimal Inch): 0.1970 | |
| Cutter Style: R217.69-06A | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Shank Diameter (Inch): 1/2 | |
| Insert Holding Method: Screw | |
| Series: Nano Turbo | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 1.6540 | |
| Head Length (Decimal Inch): 0.7080 | |
| Maximum RPM: 54000 | |
| Tool Application: Milling | |
| Insert Compatibility: XO.X 0602 | |
| ISO Number: R217.69-00.50-0-06-3AN | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 83250902 |
| Mfr# | 02694887 |
| Big Book# | 667 |
