Sale!

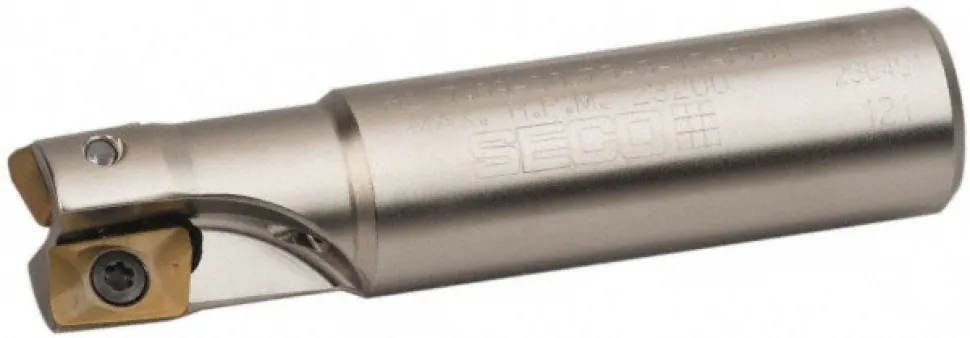

Indexable Square-Shoulder End Mill: R217.69-00.75-3-12-2AN, 3/4″ Cut Dia, 0.433″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 555,00 $.138,89 $Current price is: 138,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter (mm): 19.05 |
| Cutting Diameter: 3/4 | Overall Length (Decimal Inch): 3.3800 |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | Cutter Style: R217.69-12A |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 0.7500 |
| Shank Diameter (Inch): 3/4 | Insert Holding Method: Screw |
| Series: Super Turbo | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.2000 | Head Length (Decimal Inch): 1.1700 |
| Maximum RPM: 23200 | Tool Application: Milling |
| Insert Compatibility: XO.X 1204.. | ISO Number: R217.69-00.75-3-12-2AN |
| UNSPSC Code: 27112803 | Number Of Flutes: 2 |
| Usable Length (Decimal Inch): 2.3620 | Number Of Cutter Inserts: 2 |
| Coolant Through: Yes | Country of Origin: India |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter (mm): 19.05 | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.3800 | |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | |
| Cutter Style: R217.69-12A | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Series: Super Turbo | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.2000 | |
| Head Length (Decimal Inch): 1.1700 | |
| Maximum RPM: 23200 | |
| Tool Application: Milling | |
| Insert Compatibility: XO.X 1204.. | |
| ISO Number: R217.69-00.75-3-12-2AN | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Usable Length (Decimal Inch): 2.3620 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 83251272 |
| Mfr# | 02688950 |
| Big Book# | 669 |
