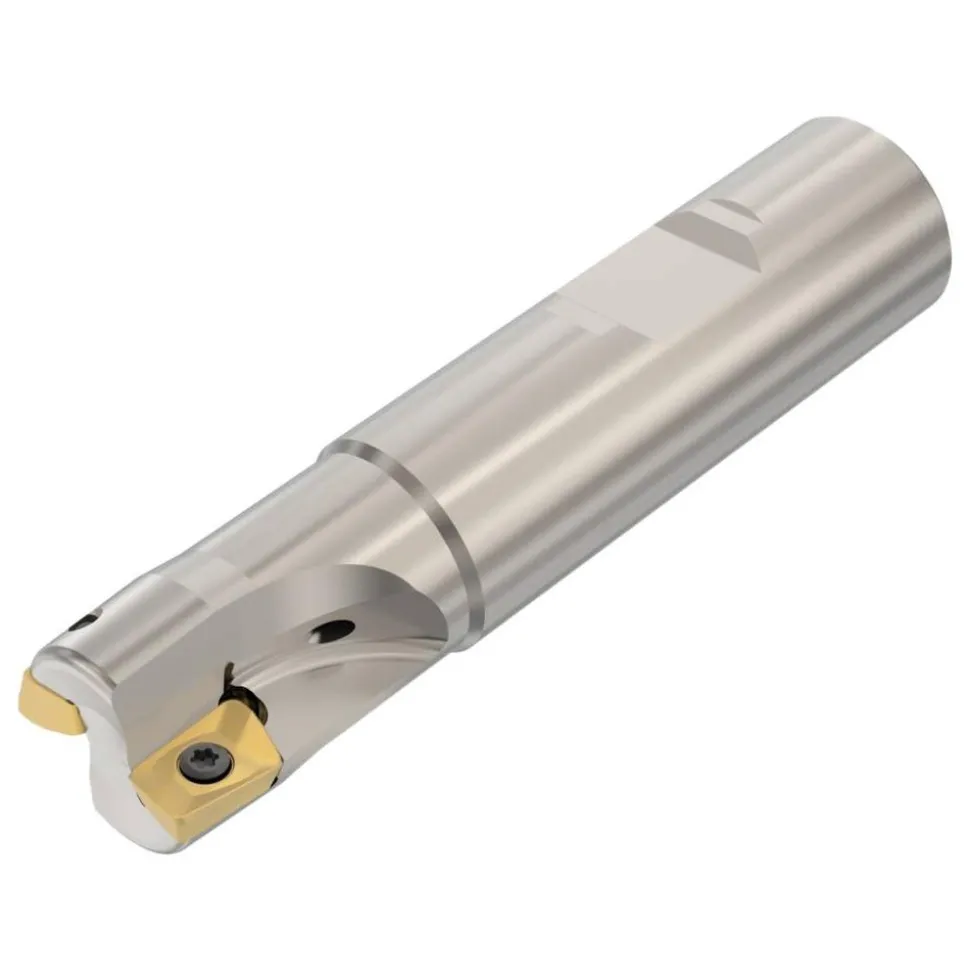

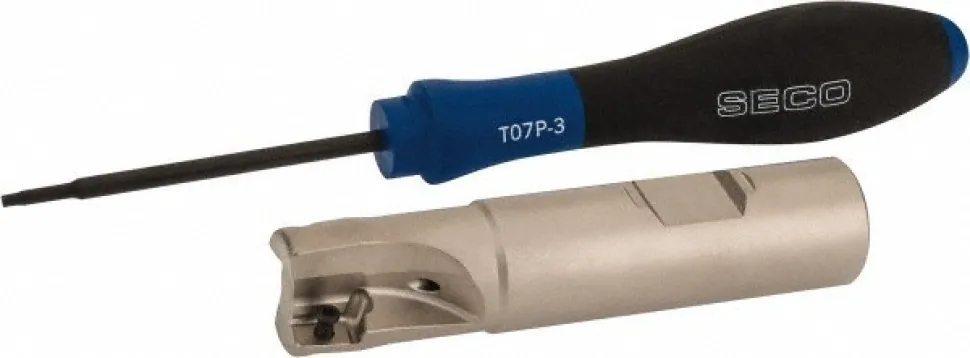

Indexable Square-Shoulder End Mill: R217.69-00.750-3-10-2A, 3/4″ Cut Dia, 0.354″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
136,99 $

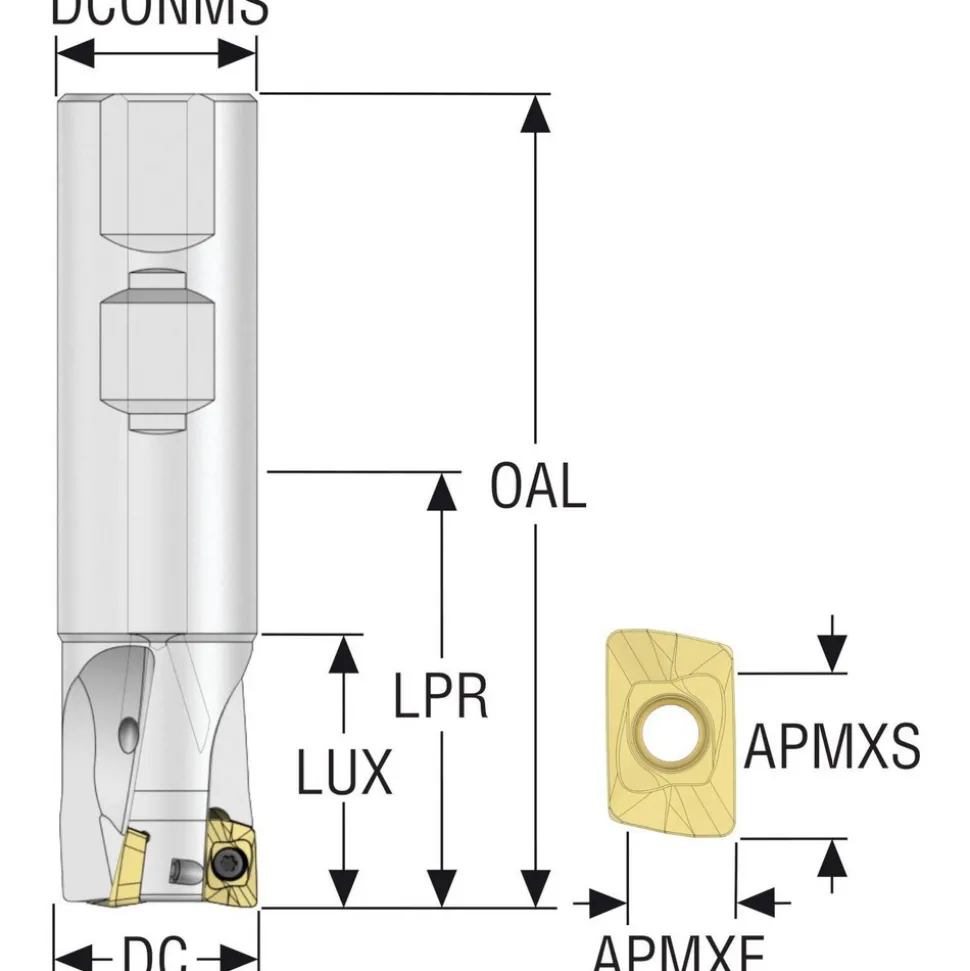

Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.3900 | Maximum Depth of Cut (Decimal Inch): 0.3540 |
| Cutter Style: R217.69-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Tool Material: Steel |
| Series: Turbo 10 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.2010 | Head Length (Decimal Inch): 1.1890 |
| Maximum RPM: 26300 | Tool Application: Milling |
| Rake: Negative | Complete Insert Compatibility: XOEX; XOMX |
| Insert Compatibility: XO.X 10T3.. | ISO Number: R217.69-00.750-3-10-2A |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: R217.69-00.750-3-10-2A |
| Number Of Flutes: 2 | Usable Length (Decimal Inch): 2.3740 |
| Number Of Cutter Inserts: 2 | Coolant Through: Yes |
| Country of Origin: India | |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.3900 | |
| Maximum Depth of Cut (Decimal Inch): 0.3540 | |
| Cutter Style: R217.69-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: Turbo 10 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.2010 | |
| Head Length (Decimal Inch): 1.1890 | |
| Maximum RPM: 26300 | |
| Tool Application: Milling | |
| Rake: Negative | |
| Complete Insert Compatibility: XOEX; XOMX | |
| Insert Compatibility: XO.X 10T3.. | |
| ISO Number: R217.69-00.750-3-10-2A | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: R217.69-00.750-3-10-2A | |
| Number Of Flutes: 2 | |
| Usable Length (Decimal Inch): 2.3740 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 51103356 |
| Mfr# | 02772637 |
| Big Book# | 668 |
