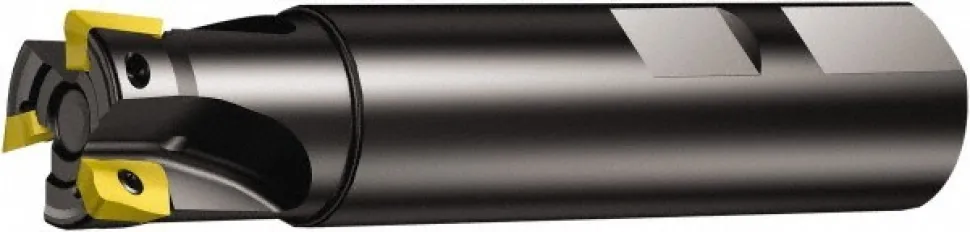

Indexable Square-Shoulder End Mill: RA390-019M19-11M, 3/4″ Cut Dia, 10.01 mm Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
122,89 $
Specifications

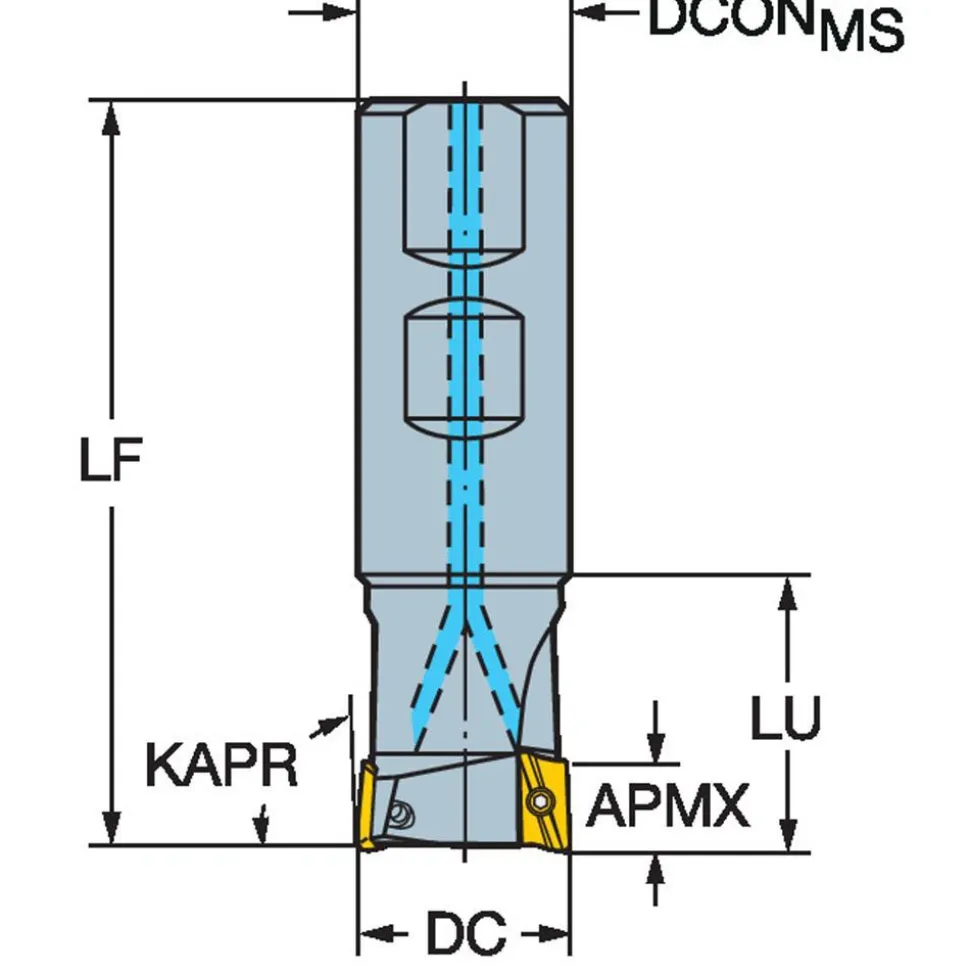

| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.3510 | Overall Length (mm): 85.11 |
| Maximum Depth of Cut (mm): 10.01 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Cutter Style: CoroMill 390 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |

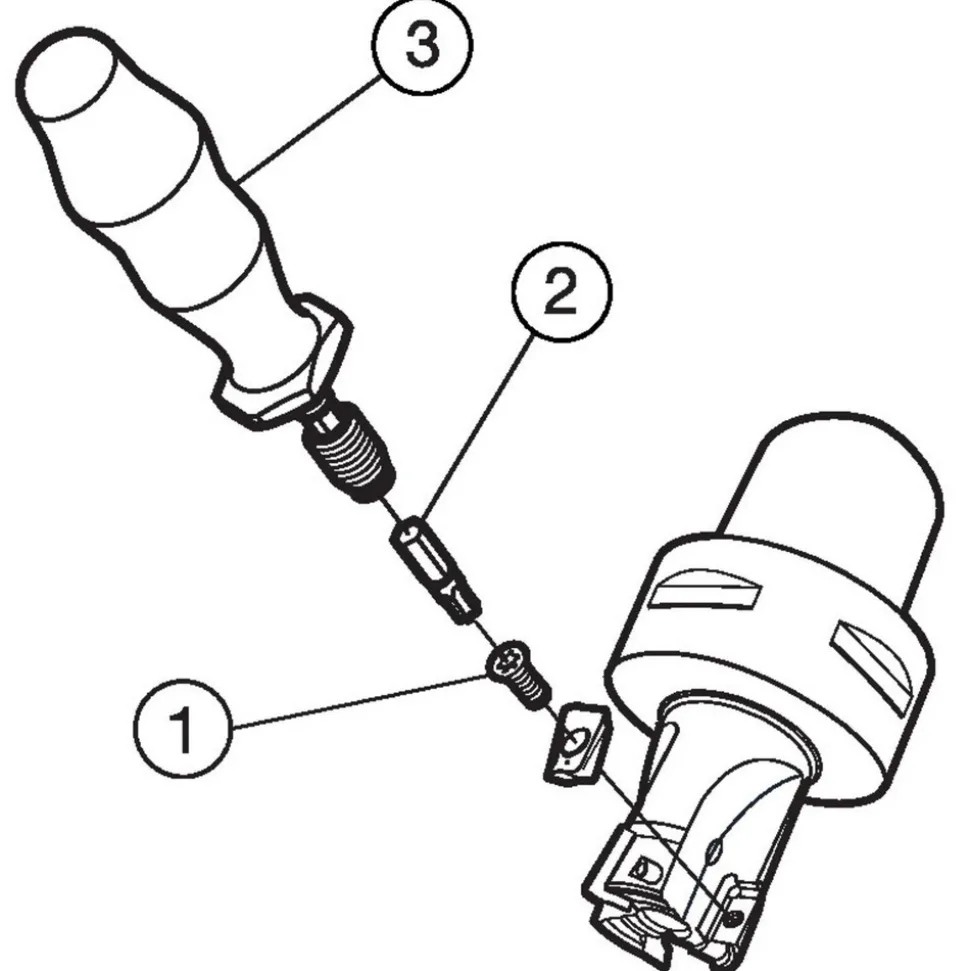

| Insert Holding Method: Screw | Tool Material: Steel |
| Series: CoroMill 390 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.3310 | Head Length (Decimal Inch): 1.0200 |
| Head Length (mm): 25.91 | Maximum RPM: 35900 |
| Tool Application: Ramping | Insert Compatibility: R390-11.. |
| ISO Number: RA390-019M19-11M | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.3510 | |
| Overall Length (mm): 85.11 | |
| Maximum Depth of Cut (mm): 10.01 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: CoroMill 390 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: CoroMill 390 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.3310 | |
| Head Length (Decimal Inch): 1.0200 | |
| Head Length (mm): 25.91 | |
| Maximum RPM: 35900 | |
| Tool Application: Ramping | |
| Insert Compatibility: R390-11.. | |
| ISO Number: RA390-019M19-11M | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 39202320 |
| Mfr# | 5739350 |
