Indexable Square-Shoulder End Mill: RA390-019O19L-11L, 3/4″ Cut Dia, 10 mm Max Depth of Cut, 3/4″ Dia Cylindrical Shank
Original price was: 472,00 $.140,89 $Current price is: 140,89 $.

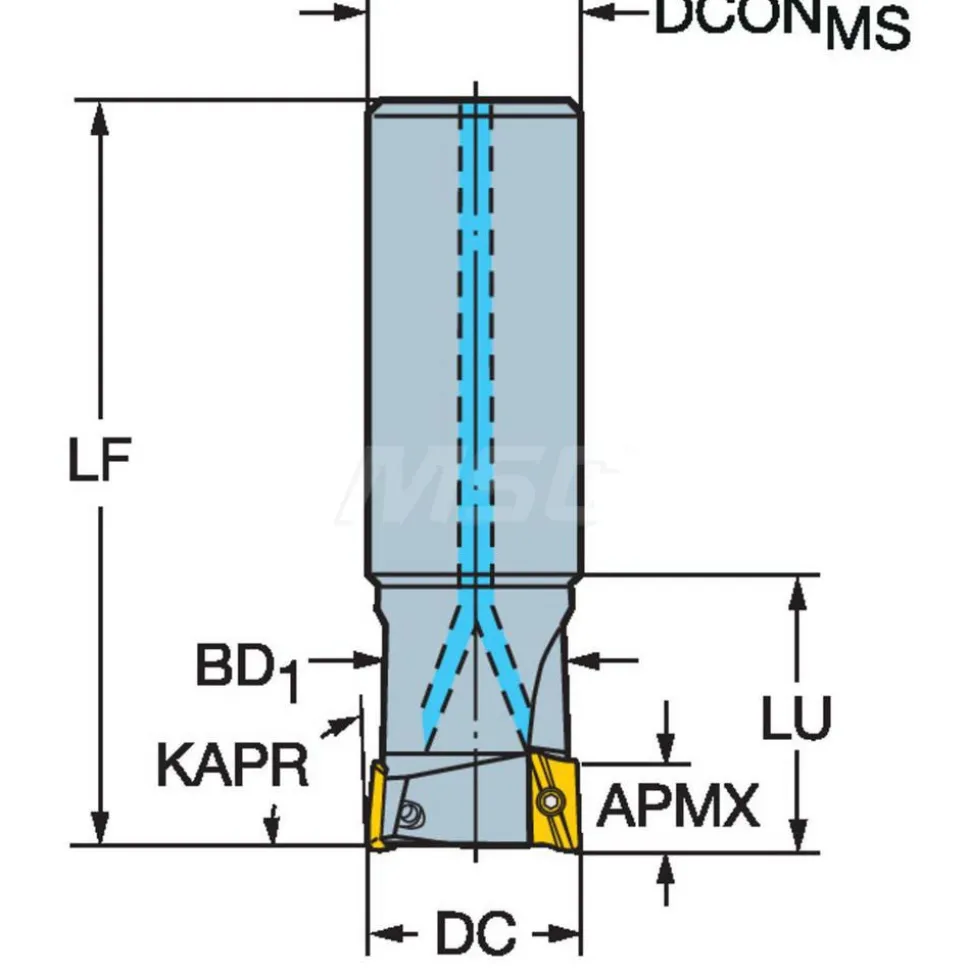

Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 6.5000 | Overall Length (Inch): 6-1/2 |
| Maximum Depth of Cut (mm): 10.00 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Cutter Style: RA390 | Shank Type: Cylindrical |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Tool Material: Steel |
| Series: CoroMill 390 | Lead Angle: 90 |
| Shank Length (Inch): 4-7/8 | Shank Length (Decimal Inch): 4.8750 |
| Head Length (Inch): 1-5/8 | Head Length (Decimal Inch): 1.6250 |
| Insert Compatibility: R390-11.. | ISO Number: RA390-019O19L-11L |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: RA390-019O19L-11L |
| Number Of Flutes: 2 | Number Of Cutter Inserts: 2 |
| Coolant Through: Yes | Country of Origin: VARIOUS |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 6.5000 | |
| Overall Length (Inch): 6-1/2 | |
| Maximum Depth of Cut (mm): 10.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: RA390 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: CoroMill 390 | |
| Lead Angle: 90 | |
| Shank Length (Inch): 4-7/8 | |
| Shank Length (Decimal Inch): 4.8750 | |
| Head Length (Inch): 1-5/8 | |
| Head Length (Decimal Inch): 1.6250 | |
| Insert Compatibility: R390-11.. | |
| ISO Number: RA390-019O19L-11L | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: RA390-019O19L-11L | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: VARIOUS |
| MSC# | 53559506 |
| Mfr# | 5739353 |
