Sale!

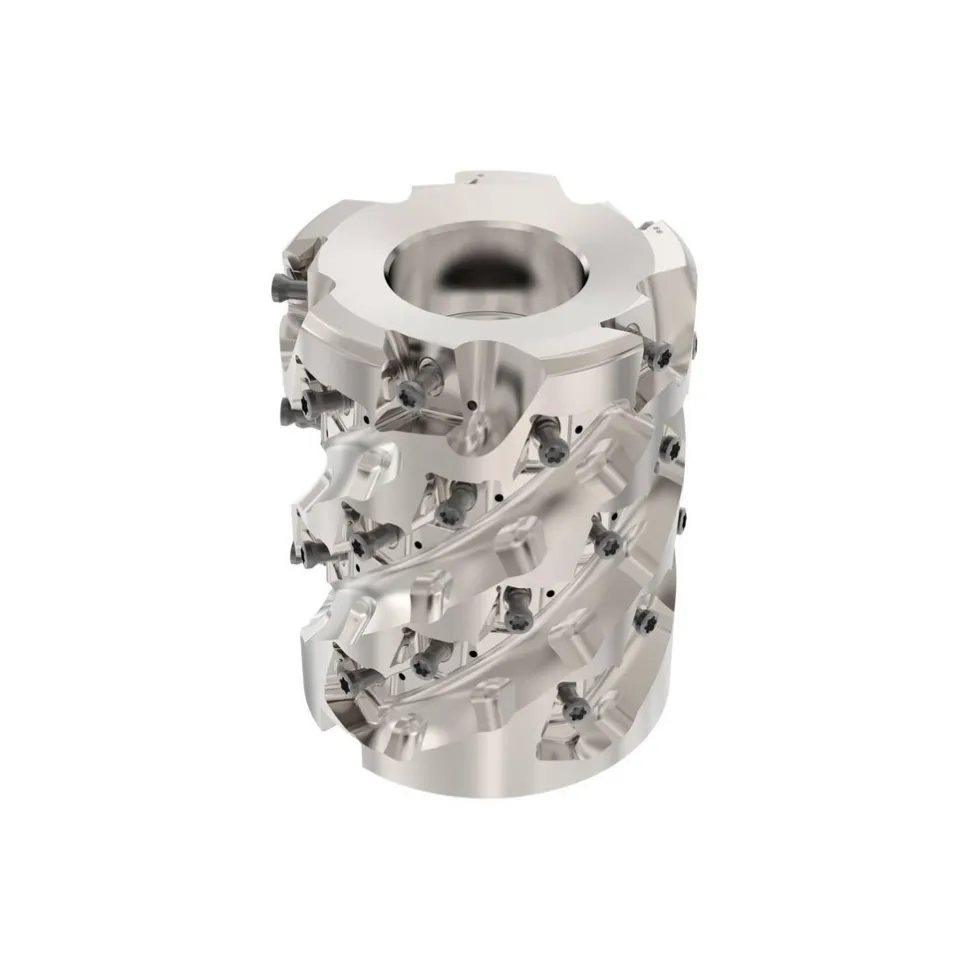

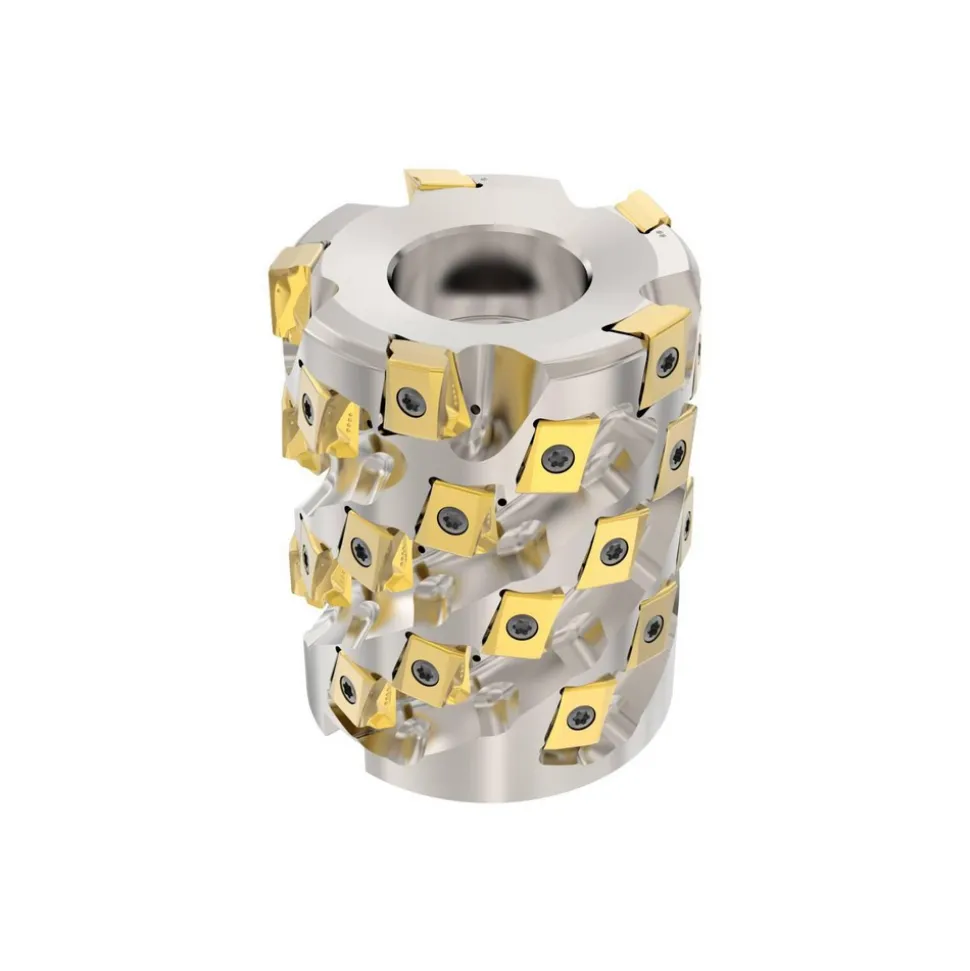

Indexable Square-Shoulder Face Mill: R220.9403.003.18LO125A, 3” Cut Dia, 1.2500″ Arbor Hole Dia, 3.1890″ Max Cutting Depth
Original price was: 2 689,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | Minimum Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 3.1890 | Arbor Hole Diameter (Inch): 1-1/4 |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | Compatible Insert Size Code: 1207.. |
| Cutter Style: R220.94 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 90 |
| Rake: Negative | Series: R220.94 |
| Maximum Ramping Angle: 0 | Maximum Body Diameter (Decimal Inch): 3.0000 |
| Overall Height (Decimal Inch): 3.7402 | Keyway Width (Decimal Inch): 0.5079 |
| Hub Diameter (Decimal Inch): 2.8701 | Pitch Type: Close |
| Maximum RPM: 8000 | Tool Application: Slotting; Shouldering |
| Tool Performance: General Purpose | Standards: ISO; ANSI |
| Number of Adjustable Pockets: 0 | Cutting Edge Length (Decimal Inch): 0.4720 |
| Minimum Insert Radius (Decimal Inch): 0.0160 | Complete Insert Compatibility: LOEX1207 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Manufacturers Catalog Number: 10215193 | Maximum Insert Radius (Decimal Inch): 0.2480 |
| Coolant Through: Yes | Number Of Cutter Inserts: 35 |
| Number Of Flutes: 5 | Country of Origin: France |
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | |
| Minimum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 3.1890 | |
| Arbor Hole Diameter (Inch): 1-1/4 | |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | |
| Compatible Insert Size Code: 1207.. | |
| Cutter Style: R220.94 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Rake: Negative | |
| Series: R220.94 | |
| Maximum Ramping Angle: 0 | |
| Maximum Body Diameter (Decimal Inch): 3.0000 | |
| Overall Height (Decimal Inch): 3.7402 | |
| Keyway Width (Decimal Inch): 0.5079 | |
| Hub Diameter (Decimal Inch): 2.8701 | |
| Pitch Type: Close | |
| Maximum RPM: 8000 | |
| Tool Application: Slotting; Shouldering | |
| Tool Performance: General Purpose | |
| Standards: ISO; ANSI | |
| Number of Adjustable Pockets: 0 | |
| Cutting Edge Length (Decimal Inch): 0.4720 | |
| Minimum Insert Radius (Decimal Inch): 0.0160 | |
| Complete Insert Compatibility: LOEX1207 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: 10215193 | |
| Maximum Insert Radius (Decimal Inch): 0.2480 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 35 | |
| Number Of Flutes: 5 | |
| Country of Origin: France |
| MSC# | 87547535 |
| Mfr# | 10215193 |
