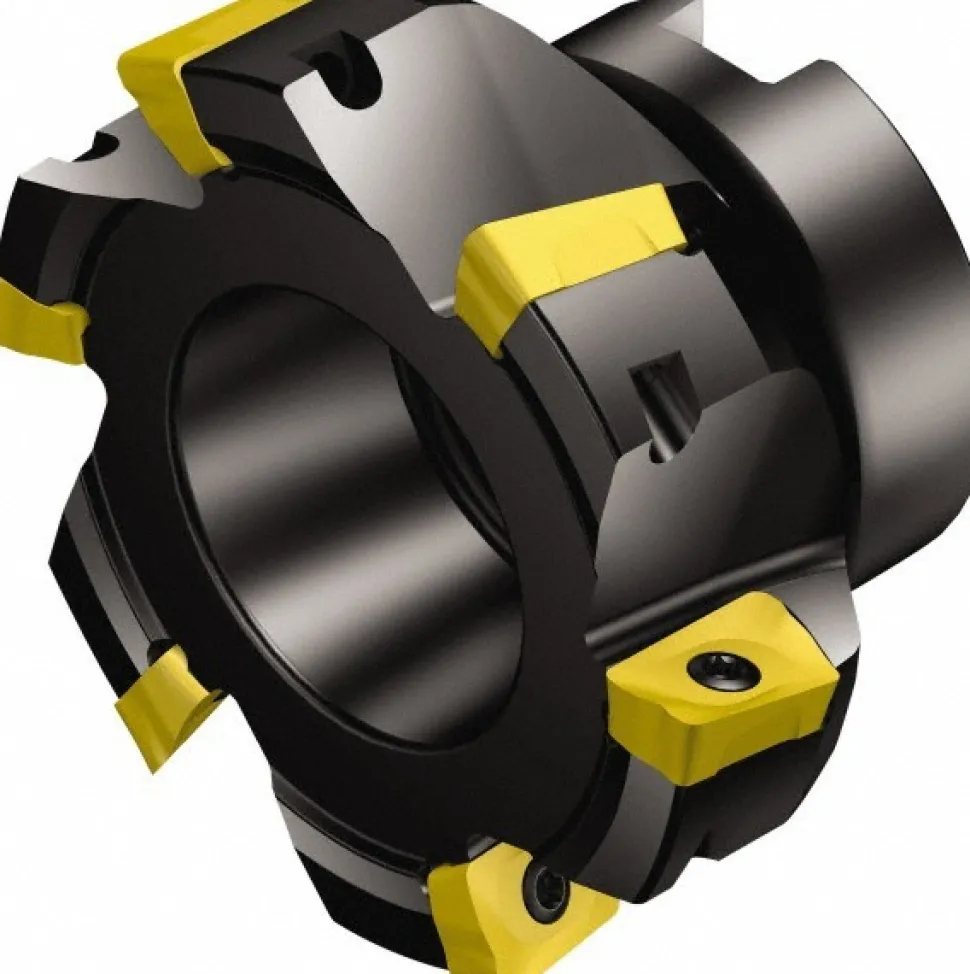

Indexable Square-Shoulder Face Mill: R390-050Q22-11H, 0.8661″ Arbor Hole Dia, 0.3937″ Max Cutting Depth
138,89 $

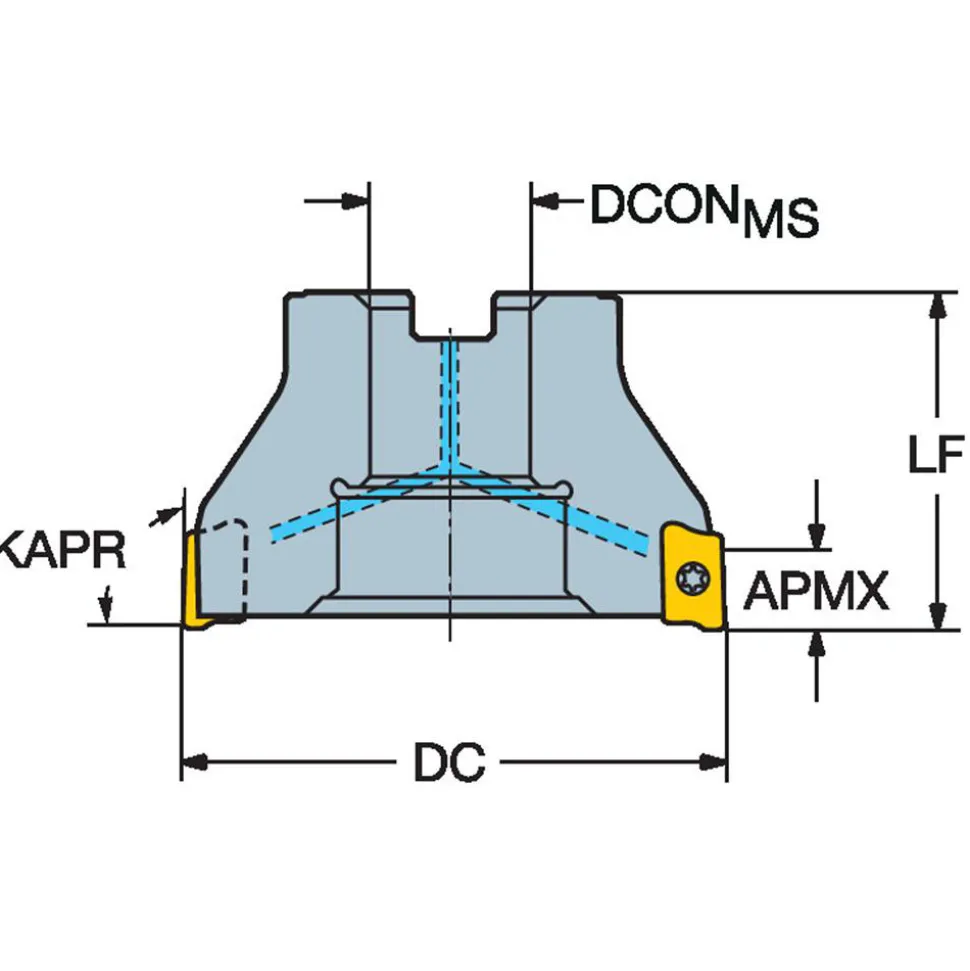

Specifications
| Maximum Cutting Diameter (Decimal Inch): 1.9685 | Maximum Cutting Diameter (mm): 50.00 |
| Maximum Depth of Cut (mm): 10.00 | Maximum Depth of Cut (Decimal Inch): 0.3937 |
| Arbor Hole Diameter (Decimal Inch): 0.8661 | Compatible Insert Size Code: R390-11.. |
| Cutter Style: R390 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 90 |
| Series: CoroMill 390 | Overall Height (mm): 40.00 |
| Overall Height (Decimal Inch): 1.5748 | Cutting Edge Length (Decimal Inch): 0.3937 |
| Complete Insert Compatibility: R390-11.. | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: No |
| Number Of Cutter Inserts: 7 | Country of Origin: Sweden |
| Maximum Cutting Diameter (Decimal Inch): 1.9685 | |
| Maximum Cutting Diameter (mm): 50.00 | |
| Maximum Depth of Cut (mm): 10.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.3937 | |
| Arbor Hole Diameter (Decimal Inch): 0.8661 | |
| Compatible Insert Size Code: R390-11.. | |
| Cutter Style: R390 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 90 | |
| Series: CoroMill 390 | |
| Overall Height (mm): 40.00 | |
| Overall Height (Decimal Inch): 1.5748 | |
| Cutting Edge Length (Decimal Inch): 0.3937 | |
| Complete Insert Compatibility: R390-11.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 7 | |
| Country of Origin: Sweden |
| MSC# | 49336233 |
| Mfr# | 5745782 |
