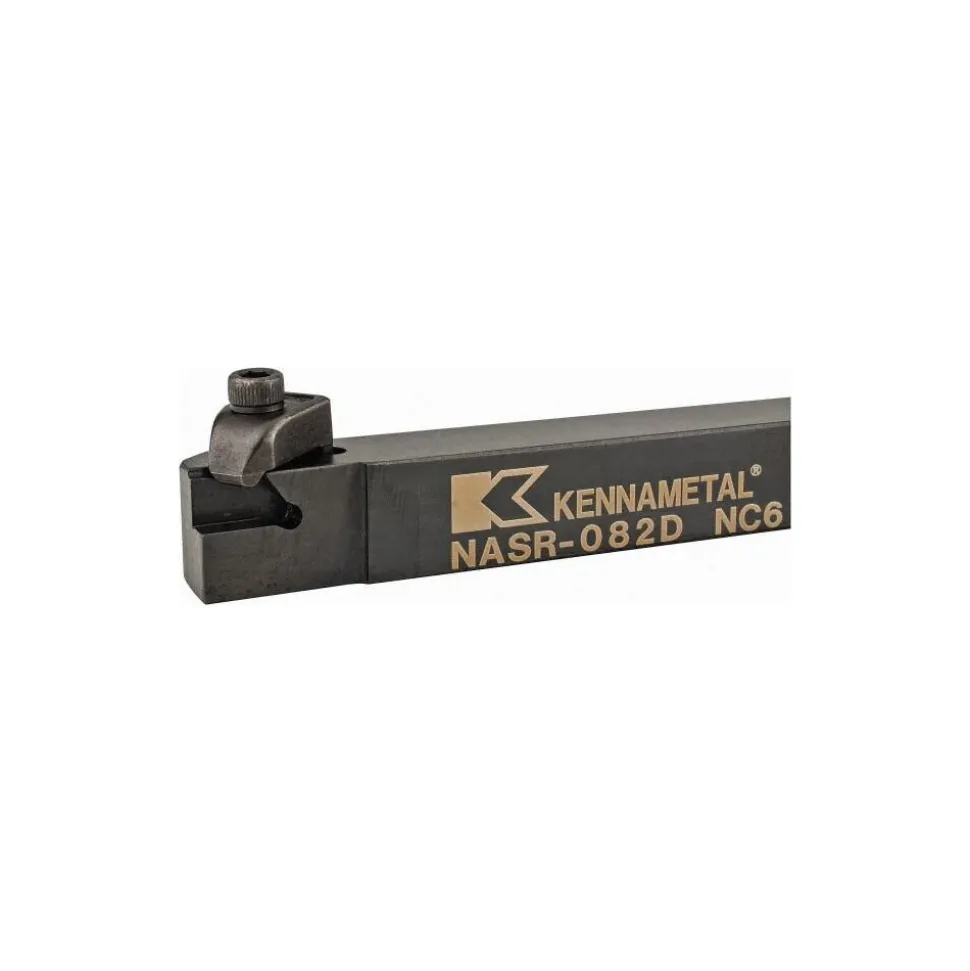

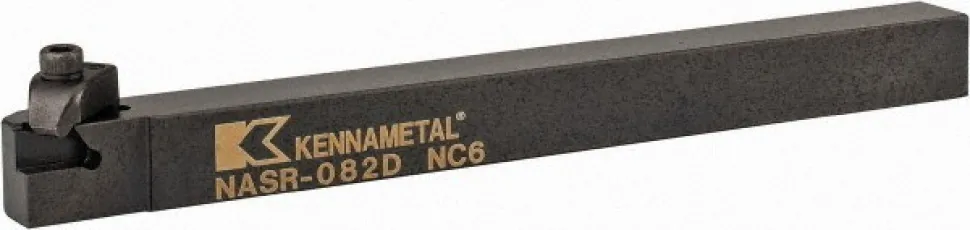

Indexable Threading Toolholder: External, Right Hand, 1/2 x 1/2″ Shank
Original price was: 155,00 $.103,99 $Current price is: 103,99 $.
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.5000 | Shank Width/Diameter (mm): 12.70 |
| Shank Width/Diameter (Inch): 1/2 | Toolholder Style: NAS |
| Insert Compatibility: N.2R | Insert Holding Method: Clamp |
| Shank Height (mm): 12.70 | Shank Height (Decimal Inch): 0.5000 |
| Shank Height (Inch): 1/2 | Overall Length (mm): 152.40 |
| Overall Length (Inch): 6 | Overall Length (Decimal Inch): 6.0000 |
| Multi-use Tool: Yes | Cutting Tool Application: Grooving; Threading |
| Head Length (Decimal Inch): 0.7500 | Head Length (mm): 19.05 |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | Maximum Depth of Cut (mm): 3.51 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5000 | UNSPSC Code: 23291800 |
| MSC/Manufacturer Number: NASR/L082D | Coolant Through: No |
| Series: Top Notch | |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Shank Width/Diameter (mm): 12.70 | |
| Shank Width/Diameter (Inch): 1/2 | |
| Toolholder Style: NAS | |
| Insert Compatibility: N.2R | |
| Insert Holding Method: Clamp | |
| Shank Height (mm): 12.70 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Shank Height (Inch): 1/2 | |
| Overall Length (mm): 152.40 | |
| Overall Length (Inch): 6 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Threading | |
| Head Length (Decimal Inch): 0.7500 | |
| Head Length (mm): 19.05 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| Maximum Depth of Cut (mm): 3.51 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5000 | |
| UNSPSC Code: 23291800 | |
| MSC/Manufacturer Number: NASR/L082D | |
| Coolant Through: No | |
| Series: Top Notch |
| MSC# | 88228788 |
| Mfr# | 1095670 |
| Big Book# | 915 |
