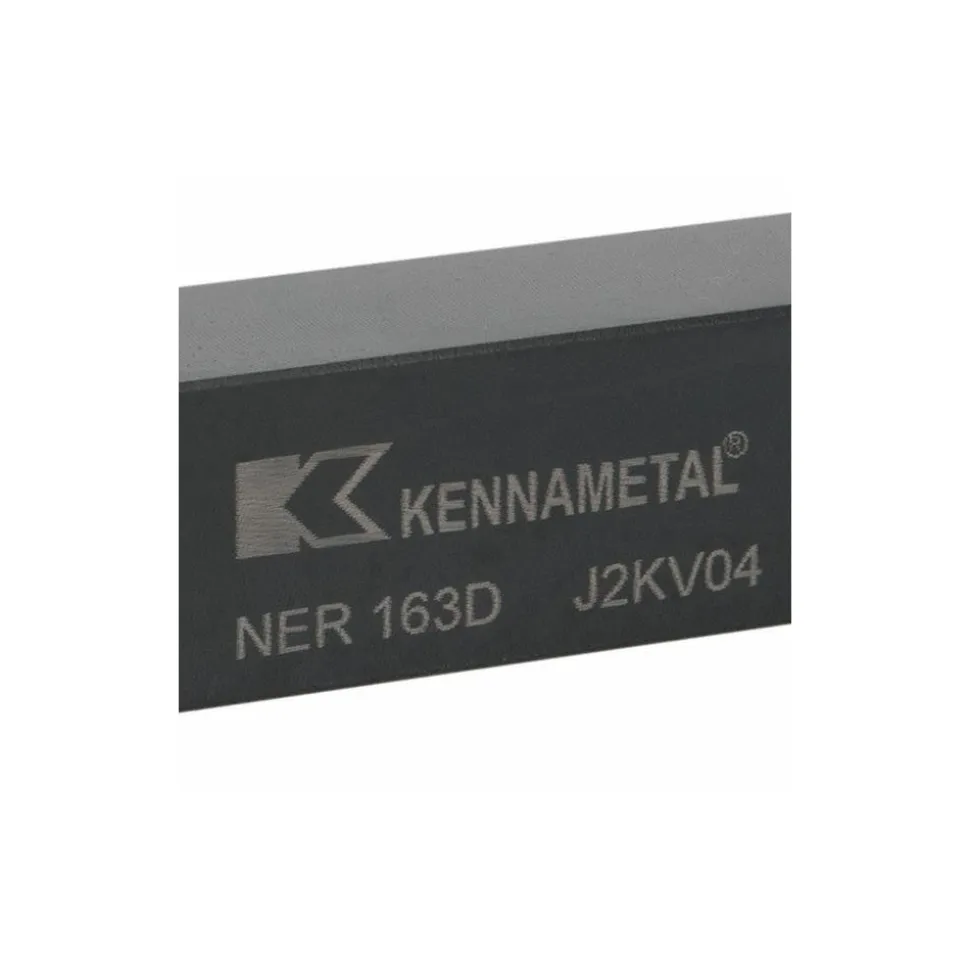

Indexable Threading Toolholder: External, Right Hand, 25.4 x 25.4 mm Shank
110,89 $
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (mm): 25.40 |
| Toolholder Style: NE | Insert Compatibility: N.3L |
| Insert Holding Method: Clamp | Shank Height (mm): 25.40 |
| Shank Height (Decimal Inch): 1.0000 | Overall Length (mm): 152.40 |
| Overall Length (Decimal Inch): 6.0000 | Multi-use Tool: Yes |
| Cutting Tool Application: Grooving; Threading | Head Length (Decimal Inch): 0.7500 |
| Head Length (mm): 19.05 | Maximum Depth of Cut (Decimal Inch): 0.2100 |
| Maximum Depth of Cut (mm): 5.33 | Back of Bar to Cutting Edge (Decimal Inch): 1.2500 |
| UNSPSC Code: 23291800 | MSC/Manufacturer Number: NER/L163D |
| Coolant Through: No | Series: Top Notch |
| Country of Origin: Brazil | |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Toolholder Style: NE | |
| Insert Compatibility: N.3L | |
| Insert Holding Method: Clamp | |
| Shank Height (mm): 25.40 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Overall Length (mm): 152.40 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Threading | |
| Head Length (Decimal Inch): 0.7500 | |
| Head Length (mm): 19.05 | |
| Maximum Depth of Cut (Decimal Inch): 0.2100 | |
| Maximum Depth of Cut (mm): 5.33 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| UNSPSC Code: 23291800 | |
| MSC/Manufacturer Number: NER/L163D | |
| Coolant Through: No | |
| Series: Top Notch | |
| Country of Origin: Brazil |
| MSC# | 06000723 |
| Mfr# | 1097565 |
| Big Book# | 914 |
